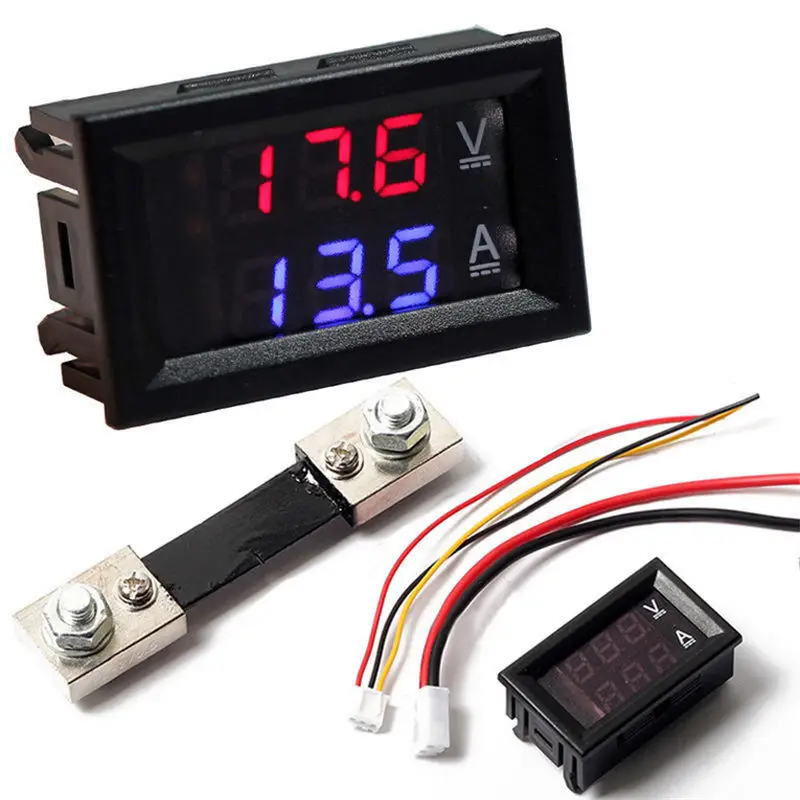

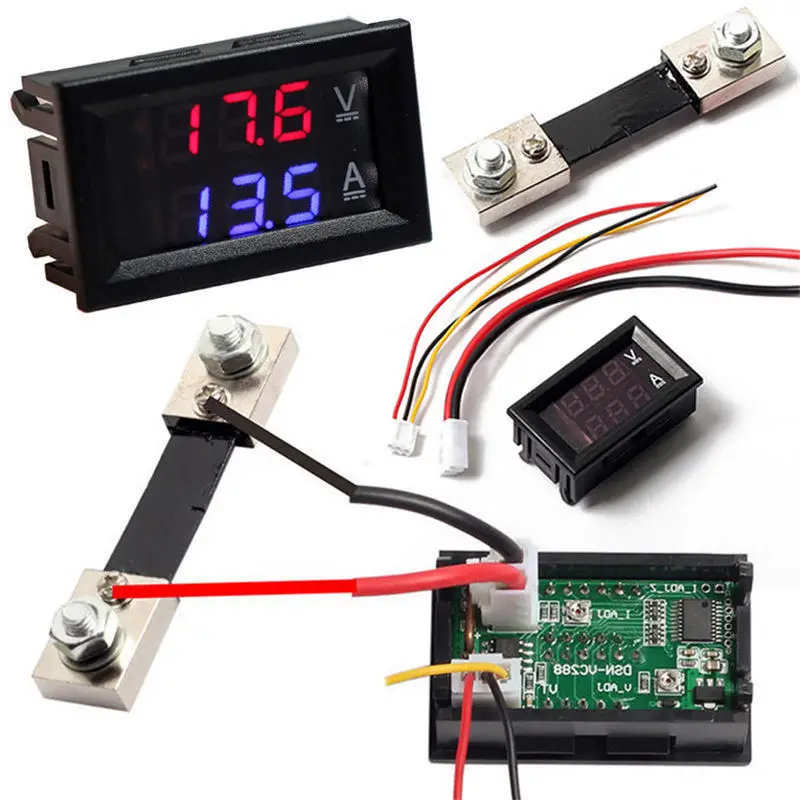

Digital voltmeter and ampermeter 0-100VDC 100ADC blue/red backlight, shunt

1.Power supply DC4.5V~30V.

2.Measuring range: DC0V~300V (Resolution: <100V: 0.1V >100V: 1V), 10A / 20A version (Resolution: 0.01A), 50A / 100A version (Resolution: 0.1A), 200A / 300A version (Resolution: 1A).

3.10A version no need use shunt for measure amps.

4.20A / 50A / 100A / 200A / 300A version must use 20A / 50A / 100A / 200A / 300A 75mV shunt for measure the amps.

5.Measurement accuracy: 1% ± 1.

6.Operating Current <60mA. 7.Operating Temperature: -10℃ to +65℃. 8.Operating Humidity: 10 to 80% (non-condensing). 9.Working pressure: 80 ~ 106kPa. 10.Dimensions: 48 × 29 × 21 mm. [/av_tab] [av_tab title='Download Data' icon_select='yes' icon='ue82d' font='entypo-fontello' av_uid='av-qsre18']
