Tootekood:NPW1000
UPS Riello Netpower NPW 1000
Pilt on illustratiivne

NPW 1000 Overview

The Net Power 1000 UPS is a perfect choice for any home or office UPS with line-interactive topology this provides you with a higher level of protection from power problems. The Net Power 1000 has a power rating of 600 Watts, this allows for most IT equipment, TVs and games consoles to be powered during a power outage.

The Net Power 1000 provides you with four outlets in a small form factor. These outlets will protect your electrical equipment from major power issues that you may experience; Power outages, power surges, overvoltages, power sags and brownouts.

Replacing the battery (Requires 2).

Features and Benefits

5 Years Electronics Warranty (UK Only) and 3 Years Battery Warranty
Stabilisation and filtering of the mains power supply using AVR and EMI filters for the suppression of atmospheric disturbances.
Ability to switch on the UPS in the absence of mains power (Cold Start).
High reliability with built-in battery test.
Auto-restart (when mains power is restored, after discharge of the batteries).
Supplied with two IEC cables for powering the loads.

NOTE: The NPW 600, 800 and 1000 have LED indicators, not LCD displays.

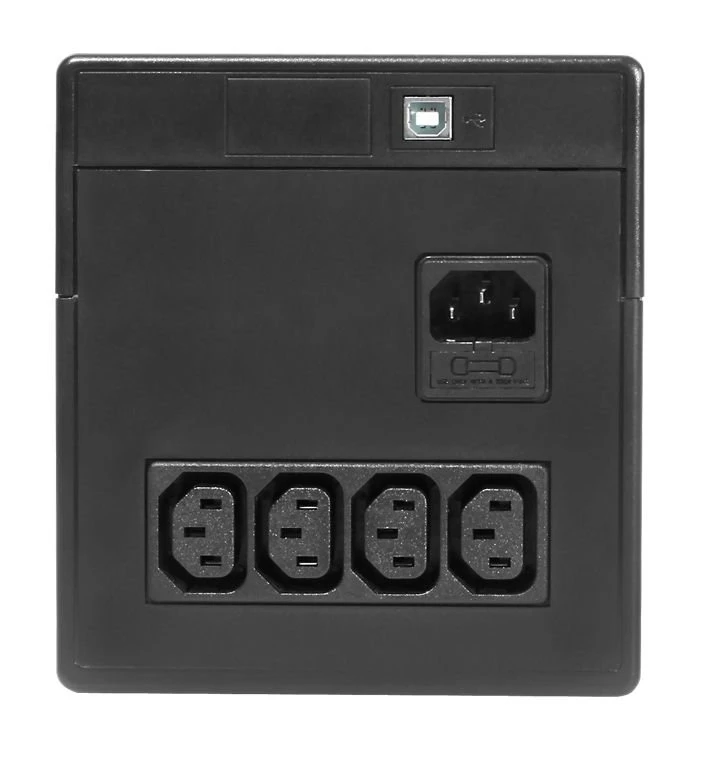

Product Drawing

    Main STAND-BY/ON switch
    GREEN LED: the UPS operates from the mains power supply
    RED LED: various messages (see the “Alarms and Report Signals table”)
    IEC mains input plug
    Input protection device
    Back-up sockets (IEC type)
    USB port
    RS232 Serial port (only for sizes 1000VA, 1500VA and 2000 VA)

INPUT
Rated power1000 VA
Voltage220 / 230 / 240 V
Voltage tolerance230 V (±25%)
Frequency50 / 60 Hz with automatic selection
OUTPUT and INVERTER OUTPUT
Rated power1000 VA
Active power600 W
Wave form on batteryPseudo sinusoidal
Frequency on battery operation50 or 60 Hz (±0.5%)
BATTERIES
TypeVRLA AGM maintenance-free lead based
Typical recharge time2-4 h
ENVIRONMENTAL
ColorBlack
CommunicationUSB + RS232
Accessories provided2 cables for powering loads; user manual
MarksCE
Operating temperature0 °C – +40 °C
Relative humidity5-95% non-condensing
StandardsEuropean directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility — Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant
DATA
Weight8 kg
Dimensions (h w d)350x160x146 mm
