Qoltec Stable Energy storage LiFePO4 5.12kWh 51.2V 100Ah BMS LCD
Tootekood:53860
Store up energy and use it whenever you want!
Stable, reliable and environmentally friendly power supply at any time of day

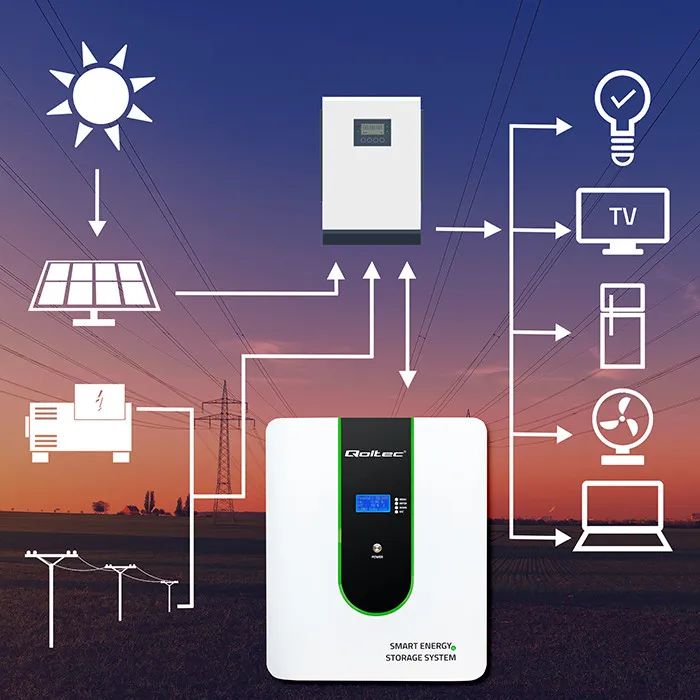

Qoltec energy storage will significantly increase the functionality of your photovoltaic installation and provide a stable and environmentally friendly power supply. It can efficiently store surplus energy acquired during the day that we are unable to consume at any given time, until it is fully charged for use at a later time when current production ceases or is below demand, e.g. during power cuts. The stored energy is available at all times when the storage is discharged, electricity is drawn from the grid. Surplus energy can also be sent to the grid.
Sustainable Energy in One Storage
Precise power and voltage regulation, energy independence, real-time monitoring and a wide range of security features
Main functions of Qoltec energy storage :
- You can make the most of the energy you produce and use it at a later time, such as on cloudy days or at night,
- You gain energy independence and security in case of grid failure, the storage will also work well in a place where there is no access to the grid,
- You significantly reduce the effects of overloading the power grid by storing surplus energy,
- The storage regulates power and voltage and removes interference that reduces the quality of the energy produced,
- You support the development of renewable energy sources,
- It has a built-in LiFePO4 lithium-iron-phosphate battery.
LiFePO4 - Technology you can trust
Powerful and discharge-resistant LiFePO4 batteries
Qoltec's energy storages are equipped with extremely powerful and deep discharge resistant lithium-iron-phosphate batteries - LiFePO4. The advantage of this battery is undoubtedly its long service life of up to several thousand charge and discharge cycles, as well as its lightness and the lack of memory effect, which causes a loss of actual capacity. LiFePO4 batteries do not pollute the environment, are non-toxic and non-flammable, which increases the safety of their use in photovoltaics.
Choose full control, choose our innovative energy!
Easy control of battery level and other parameters

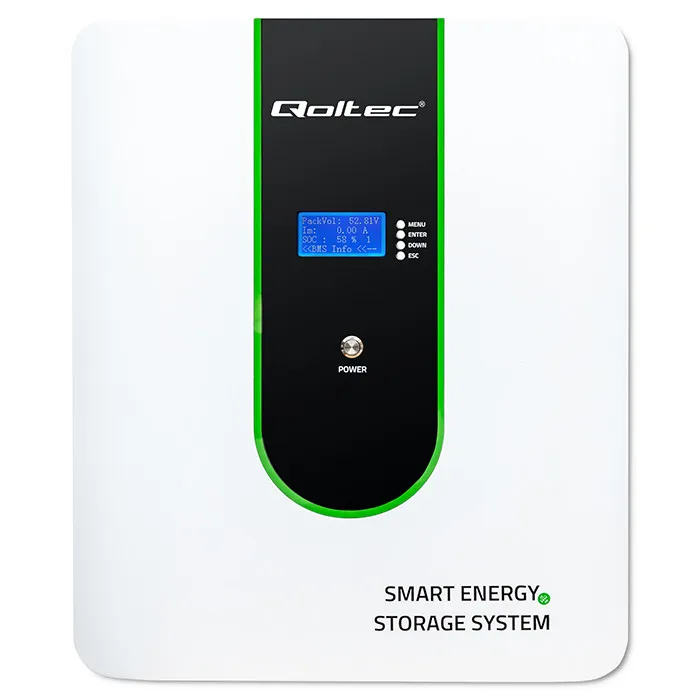

The product features a multifunctional, easy-to-use LCD display with control panel. It allows control and monitoring of the battery status. In addition, the display informs you of failures, reacting accordingly if any parameter exceeds the norm. Combining efficiency with transparency, we provide you with full control of your energy, step by step, on screen, for your convenience.
BMS that is Intelligent Battery Management System
Cell protection against overheating, overcharging and deep discharge
Advanced BMS :
- Constantly monitors and controls the battery's operating parameters, ensuring optimum performance, even charging and discharging,
- Protects cells from overheating, overcharging and deep discharge, which can damage the battery.
Full operational safety - your energy storage works in complete safety
Equipped with a comprehensive security kit to protect your system
UVP protection - protects devices from too low voltage at the output, which affects the stability of connected devices,
SCP protection - is a short circuit protection,
OVP protection - is protection against too high output voltage and damage to connected devices,
OCP protection - is protection against too high current on the line,
OTP protection - is protection against overheating.
Confidence confirmed by a warranty
Product covered by a 24-month warranty
Our company is committed to providing technical support and customer service, making our guarantee a comprehensive commitment to customer satisfaction for two years from the date of purchase. The included protocol is an integral part of the warranty and is necessary to file a claim for faulty goods within 24 months of purchase.
Harvest clean energy with our energy storages!
Stable, reliable and environmentally friendly power supply at any time of day
Qoltec energy storage will significantly increase the functionality of your photovoltaic installation and provide a stable and environmentally friendly power supply. It can efficiently store surplus energy acquired during the day that we are unable to consume at any given time, until it is fully charged for use at a later time when current production ceases or is below demand, e.g. during power cuts. The stored energy is available at all times when the storage is discharged, electricity is drawn from the grid. Surplus energy can also be sent to the grid.
Sustainable Energy in One Storage
Precise power and voltage regulation, energy independence, real-time monitoring and a wide range of security features
Main functions of Qoltec energy storage :
- You can make the most of the energy you produce and use it at a later time, such as on cloudy days or at night,
- You gain energy independence and security in case of grid failure, the storage will also work well in a place where there is no access to the grid,
- You significantly reduce the effects of overloading the power grid by storing surplus energy,
- The storage regulates power and voltage and removes interference that reduces the quality of the energy produced,
- You support the development of renewable energy sources,
- It has a built-in LiFePO4 lithium-iron-phosphate battery.
LiFePO4 - Technology you can trust
Powerful and discharge-resistant LiFePO4 batteries
Qoltec's energy storages are equipped with extremely powerful and deep discharge resistant lithium-iron-phosphate batteries - LiFePO4. The advantage of this battery is undoubtedly its long service life of up to several thousand charge and discharge cycles, as well as its lightness and the lack of memory effect, which causes a loss of actual capacity. LiFePO4 batteries do not pollute the environment, are non-toxic and non-flammable, which increases the safety of their use in photovoltaics.
Choose full control, choose our innovative energy!
Easy control of battery level and other parameters
The product features a multifunctional, easy-to-use LCD display with control panel. It allows control and monitoring of the battery status. In addition, the display informs you of failures, reacting accordingly if any parameter exceeds the norm. Combining efficiency with transparency, we provide you with full control of your energy, step by step, on screen, for your convenience.
BMS that is Intelligent Battery Management System
Cell protection against overheating, overcharging and deep discharge
Advanced BMS :
- Constantly monitors and controls the battery's operating parameters, ensuring optimum performance, even charging and discharging,
- Protects cells from overheating, overcharging and deep discharge, which can damage the battery.
Full operational safety - your energy storage works in complete safety
Equipped with a comprehensive security kit to protect your system
UVP protection - protects devices from too low voltage at the output, which affects the stability of connected devices,
SCP protection - is a short circuit protection,
OVP protection - is protection against too high output voltage and damage to connected devices,
OCP protection - is protection against too high current on the line,
OTP protection - is protection against overheating.
Confidence confirmed by a warranty
Product covered by a 24-month warranty
Our company is committed to providing technical support and customer service, making our guarantee a comprehensive commitment to customer satisfaction for two years from the date of purchase. The included protocol is an integral part of the warranty and is necessary to file a claim for faulty goods within 24 months of purchase.
Harvest clean energy with our energy storages!
Cell type: LiFePO4
Nominal voltage: 51.2V
Capacity: 100Ah
Charge voltage: 58.4V
Cut off voltage: 44.80V (0.01C)
Variable charging voltage: 55.20V ±0.1V
Standard charging current: 20A
Standard discharging current: 20A
Maximum charging current: 50A
Maximum discharge current: 100A
Number of charging cycles: 6000
Built-in battery: Yes
Number of batteries: 16
Waveform: Pure sine wave
Internal resistance: ≤40mΩ

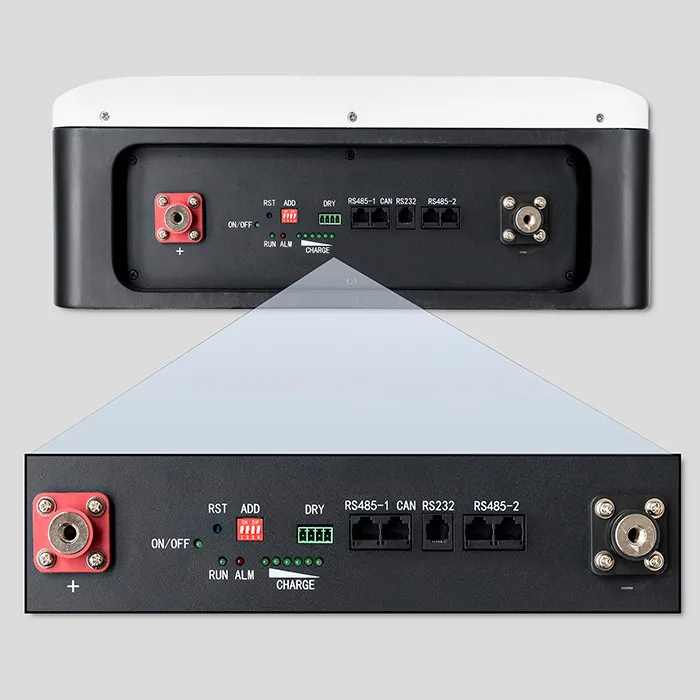

Communication: RS485, RS232, CAN
Compatibility: 000-PACE RS232 V1.7-2022.10.22 000-PACE RS485 MS V1.0-2018.06.15 RS485: 000-PACE RS485 Modbus V1.1-2017.06.27 001-PYLON RS485 LV V3.5-2019.12.23 002-Growatt RS485 V2.02-2019.07.24 003-Voltronic RS485 Inverter V1.5-2022.01.18 011-VISION RS485 V1.3-2019.07.17 012-Luxpowertek RS485 Inverter V0.3-2020.07.06 036-WOW RS485 Modbus V1.3-2017.06.27 CAN: 001-PYLON CAN Inverter EMS 001-PYLON CAN I.V V2.0.6-2022.05.10 002-Growatt CAN LV V1.05-2019.08.28 002-Growatt CAN LV V1.09-2020.10.22 005-SofarSolar CAN inverter V5 007-GoodWe CAN Inverter LVV17-2020.02.28 010-Victron CAN 2021.01.07 012-Luxpowertek CAN V1.0-2020.02.11 013-Sorotec CAN Inverter V1.0 014-GINLONG CAN LV V1.0-2019.12.28 015-Schneider CAN V2.0 017-SMA CAN V2.0 028-Schergy CAN V1.1-2022.05.10 030-MUST CAN PV1800F 030-MUST CAN V2.0.2-2021.06.02 031-MEGAREVO CAN Inverter LV V1.1 033-TBB CAN V1.05-2021.04.20 035-STUDER CAN V1.02-2018.06.14
Usage: Storage of excess energy generated by the photovoltaic installation Emergency power systems
Protection: UVP - protects against under-voltage at the output, SCP - is short-circuit protection, OVP - is protection against too high output voltage, OCP - is protection against too high line current, OTP - is protection against overheating.
Additional information: Supports BMS
Notices: We require the device to be installed by a qualified installer with the appropriate authorization. In case of installation by unauthorized persons, the warranty will automatically expire. The included protocol is an integral part of the warranty and is necessary to file a claim for defective goods within 24 months from the date of purchase.
IP Rating: IP55
Operating temperature range: Charge : 0˚C ~ +45˚C Discharge : -25˚C ~ +55˚C
Storage temperature range: Less than 1 months : -10˚C ~ +45˚C Less than 3 months : -10˚C ~ +35˚C More than 3 months : 0˚C ~ +30˚C
Housing color: White, black
Dimensions (D/L x W x H): 580 x 450 x 180 mm
Package contents: 1 x LiFePO4 energy storage 1 x Mounting accessories 1 x Mounting protocol 1 x User Manual
Package depth / length [mm]: 582
Package width [mm]: 680
Package height [mm]: 290
Net weight [kg]: 54.500
Gross weight [kg]: 56.000
Certificate: CE
Nominal voltage: 51.2V
Capacity: 100Ah
Charge voltage: 58.4V
Cut off voltage: 44.80V (0.01C)
Variable charging voltage: 55.20V ±0.1V
Standard charging current: 20A
Standard discharging current: 20A
Maximum charging current: 50A
Maximum discharge current: 100A
Number of charging cycles: 6000
Built-in battery: Yes
Number of batteries: 16
Waveform: Pure sine wave
Internal resistance: ≤40mΩ
Communication: RS485, RS232, CAN
Compatibility: 000-PACE RS232 V1.7-2022.10.22 000-PACE RS485 MS V1.0-2018.06.15 RS485: 000-PACE RS485 Modbus V1.1-2017.06.27 001-PYLON RS485 LV V3.5-2019.12.23 002-Growatt RS485 V2.02-2019.07.24 003-Voltronic RS485 Inverter V1.5-2022.01.18 011-VISION RS485 V1.3-2019.07.17 012-Luxpowertek RS485 Inverter V0.3-2020.07.06 036-WOW RS485 Modbus V1.3-2017.06.27 CAN: 001-PYLON CAN Inverter EMS 001-PYLON CAN I.V V2.0.6-2022.05.10 002-Growatt CAN LV V1.05-2019.08.28 002-Growatt CAN LV V1.09-2020.10.22 005-SofarSolar CAN inverter V5 007-GoodWe CAN Inverter LVV17-2020.02.28 010-Victron CAN 2021.01.07 012-Luxpowertek CAN V1.0-2020.02.11 013-Sorotec CAN Inverter V1.0 014-GINLONG CAN LV V1.0-2019.12.28 015-Schneider CAN V2.0 017-SMA CAN V2.0 028-Schergy CAN V1.1-2022.05.10 030-MUST CAN PV1800F 030-MUST CAN V2.0.2-2021.06.02 031-MEGAREVO CAN Inverter LV V1.1 033-TBB CAN V1.05-2021.04.20 035-STUDER CAN V1.02-2018.06.14
Usage: Storage of excess energy generated by the photovoltaic installation Emergency power systems
Protection: UVP - protects against under-voltage at the output, SCP - is short-circuit protection, OVP - is protection against too high output voltage, OCP - is protection against too high line current, OTP - is protection against overheating.
Additional information: Supports BMS
Notices: We require the device to be installed by a qualified installer with the appropriate authorization. In case of installation by unauthorized persons, the warranty will automatically expire. The included protocol is an integral part of the warranty and is necessary to file a claim for defective goods within 24 months from the date of purchase.
IP Rating: IP55
Operating temperature range: Charge : 0˚C ~ +45˚C Discharge : -25˚C ~ +55˚C
Storage temperature range: Less than 1 months : -10˚C ~ +45˚C Less than 3 months : -10˚C ~ +35˚C More than 3 months : 0˚C ~ +30˚C
Housing color: White, black
Dimensions (D/L x W x H): 580 x 450 x 180 mm
Package contents: 1 x LiFePO4 energy storage 1 x Mounting accessories 1 x Mounting protocol 1 x User Manual
Package depth / length [mm]: 582
Package width [mm]: 680
Package height [mm]: 290
Net weight [kg]: 54.500
Gross weight [kg]: 56.000
Certificate: CE
