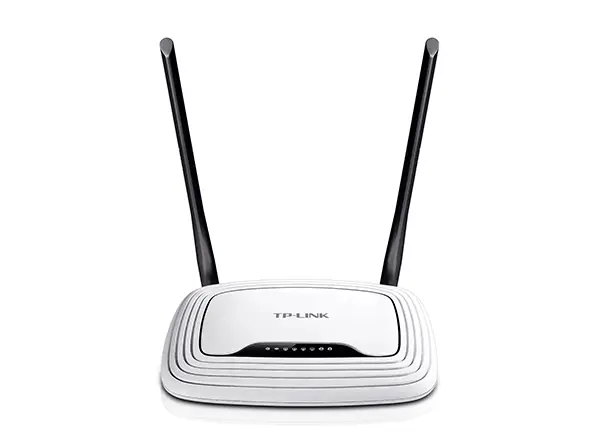

WIFI ruuter 4-port 802.11b/g/n 300Mbps TP-Link

  • Tootekood: TL-WR841N
Pealadu, Peterburi tee 90F, Tallinn 11
Peterburi tee Oomipood, Peterburi tee 90F, Tallinn 2
Järve keskuse Oomipood, Pärnu mnt. 238, Tallinn 2
Lõunakeskuse Oomipood, Ringtee 75, Tartu 1
Põhjakeskuse Oomipood, Haljala tee 4, Rakvere 3
Kaubamajaka Oomipood, Papiniidu 8, Pärnu 1
Pargi keskuse Oomipood, Puru tee 1, Jõhvi 1

Performance: 300Mbps wireless speed ideal for interruption sensitive applications like HD video streaming

Guest Network: provides separate access for guests while securing the home network

IPv6: compatible with IPv6 (Internet Protocol version 6)

WPS button: easy wireless security encryption at a push of WPS button

IPTV: supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming

Bandwidth Control: assigns your preferred devices with more bandwidth

Parental Controls: manage when and how connected devices can access the internet

Standards Wi-Fi 4

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds N300

2.4 GHz: 300 Mbps (802.11n)

WiFi Range 2 Bedroom Houses

2× Fixed Antennas

WiFi Capacity Legacy

Working Modes Router Mode

Access Point Mode

Range Extender Mode

WISP Mode

HARDWARE

Processor Single-Core CPU

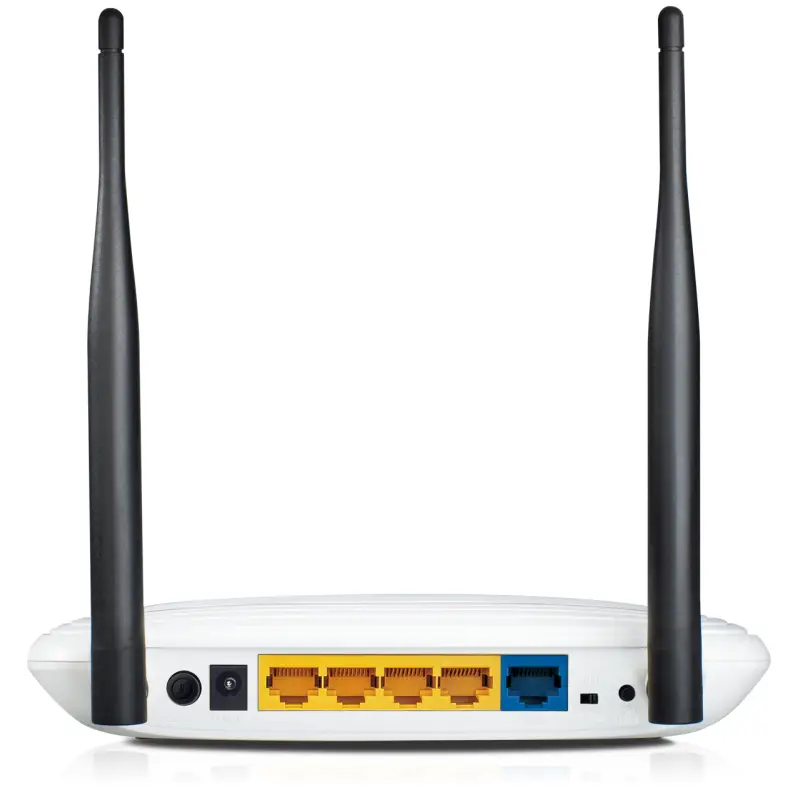

Ethernet Ports 1× 10/100 Mbps WAN Port

4× 10/100 Mbps LAN Ports

Buttons Reset Button

Power 9 V ⎓ 0.6 A

SECURITY

WiFi Encryption WEP

WPA

WPA2

WPA/WPA2-Enterprise (802.1x)

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network 1× 2.4 GHz Guest Network

SOFTWARE

Protocols IPv4

IPv6

Parental Controls URL Filtering

Time Controls

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

NAT Forwarding VIrtual Server

Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

DHCP Address Reservation

DHCP Client List

Server

DDNS NO-IP

Comex

DynDNS

Management Tether App

Webpage

Check Web Emulator>

PHYSICAL

Dimensions (W×D×H) 6.9 × 4.6 × 1.3 in

(173 × 118 × 33mm)

Package Contents Wi-Fi Router TL-WR841N

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

OTHER

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser


Cable or DSL Modem (if needed)


Subscription with an internet service provider (for internet access)

Certifications FCC

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power FCC:

<30dBm

WiFi Reception Sensitivity 270M: -70dBm@10% PER

130M: -74dBm@10% PER

108M: -74dBm@10% PER

54M: -77dBm@10% PER

11M: -87dBm@8% PER

6M: -90dBm@10% PER

1M: -98dBm@8% PER

TL-WR841N kasutusjuhend2.6MBLink
TL-WR841N kiirjuhend937.72KBLink
