Liitiumioonaku kaitse moodul 3S 20A 18650
- Код товара: 3S-BMS-20A

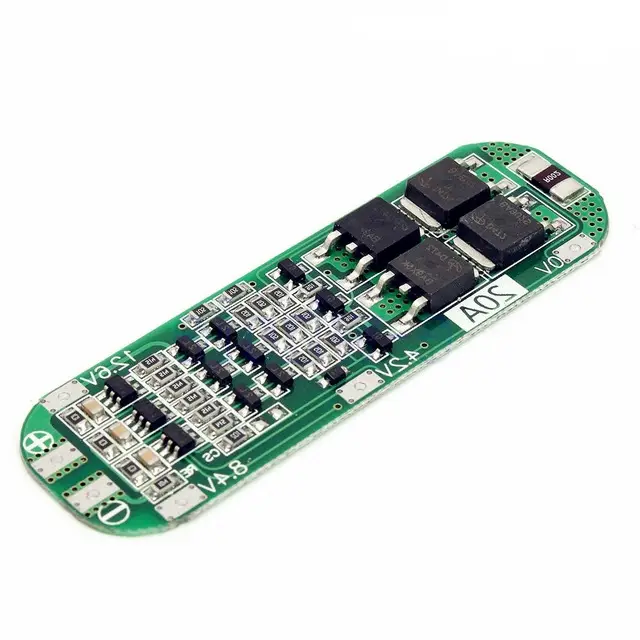

- Module name: 3S 12.6V Li-ion Lithium Battery 18650 Charger Protection PCB Board
- Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)
- Product Size: 64mmx20mmx3.4mm
- Charging voltage: 12.6V
- Maximum output current: 20A
- Maximum output power / charging power: 252W
1.Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip.
2.After connection,it need to first charge activation, then will have the output.
Do not mix the good battery and poor battery to use.
The internal resistance of 3 battery capacity are closer will be better.
Please buyers know the professional knowledge of this module before buying
