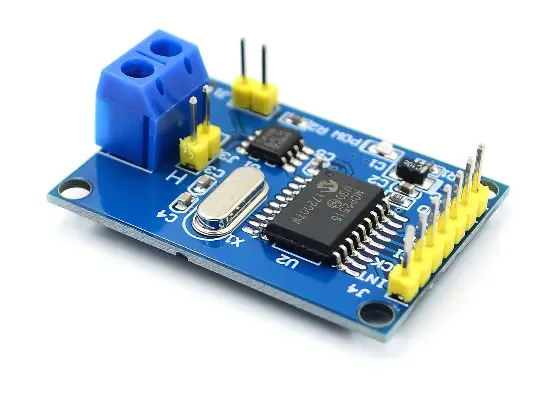

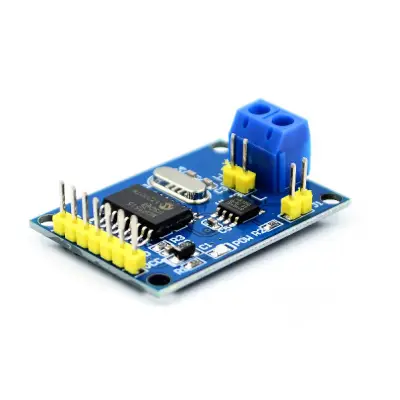

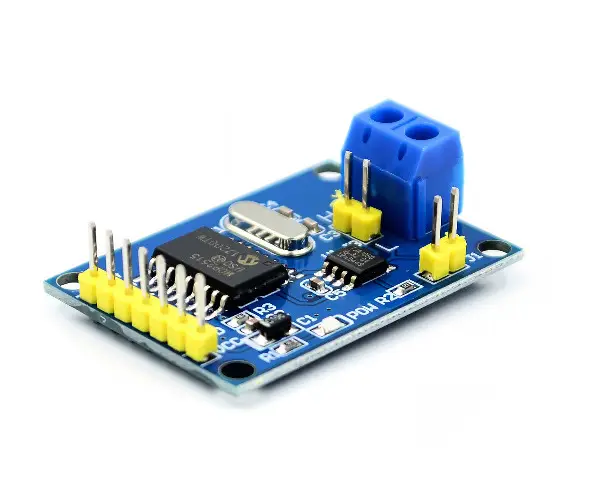

MCP2515 CAN Bus moodul TJA1050
- Код товара: MCP2515CAN
Товар временно отсутствует в продаже
These Arduino CAN Bus modules are based on the MCP2515 CAN Controller and the TJA1050 CAN Transceiver. They provide a lot of bang for the buck and will allow you start to start interfacing your projects to CAN networks. Common CAN applications include vehicles (via OBDII or J1939) and industrial monitoring and controls.

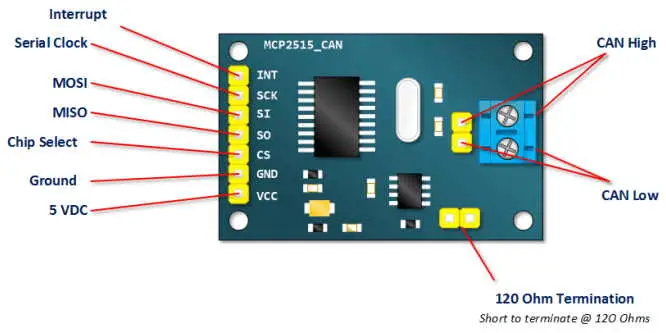

Communication to this module with your Arduino is achievable via SPI. The device includes a jumper configurable 120 Ohm Resistor and a CAN V2.B support. More, there are existing libraries that make building projects relatively easy.
- support CAN V2.0B specification, the communication speed 1Mb / S
- 0 to 8-byte data field
- the standard frame and expand the frame and remote frame
- 5V DC power supply module, SPI interface protocol control
- 120 ohm termination resistors. Impedance matching, ensure drive capacity,
long-distance data transmission against signal radiation

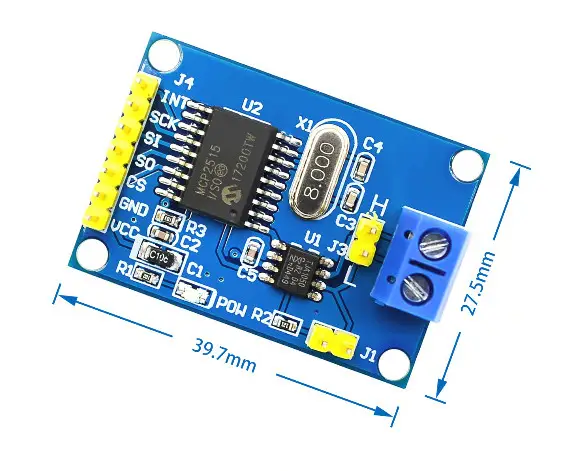

- module size: 4.4cm x 2.8cm screw hole center spacing 23mm x 38mm
- the working current: typ. 5mA, 1 microamp standby current. Except the power indicator.
- the working temperature: Industrial grade to 85 ° -40 °
