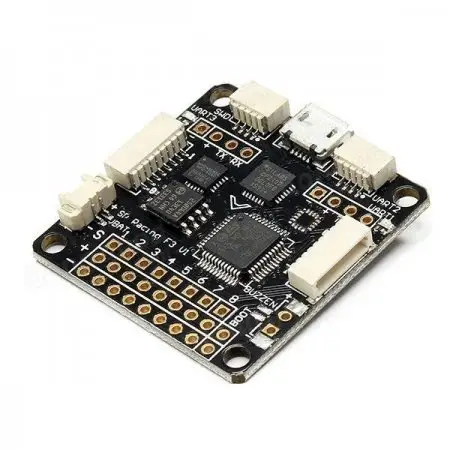

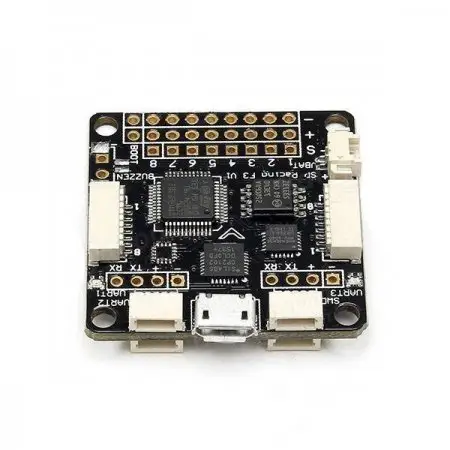

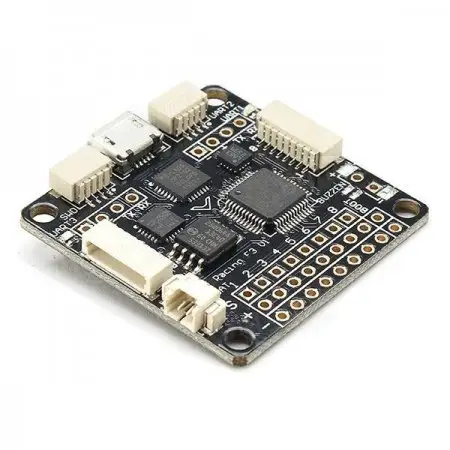

Lennu kontroller SP Racing F3 NAZE32 Acro 6DOF

Код товара:NAZE32-ACRO

Фото может отличаться от товара

	STM32F3 CPU.
	High-capacity Flash
	MPU6050 Accelerometers and Gyroscopes
	MS5611 Barometer
	HMC5883 for compass
	MicroUSB socket
	4 x 4 pin JST-SH Socket (I2C, SWD, 2xuart)
	2 x 8 pin JST-SH Socket (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
	8 x 3 pin though-holes for pin headers for ESC / Servo connections
	2 x 4 pin though-holes for the 2x serial ports .
	2 x 2 pin though-holes for battery voltage and buzzer
	36x36mm board, 30.5 mm mounting holes
