Battery Health Analysis

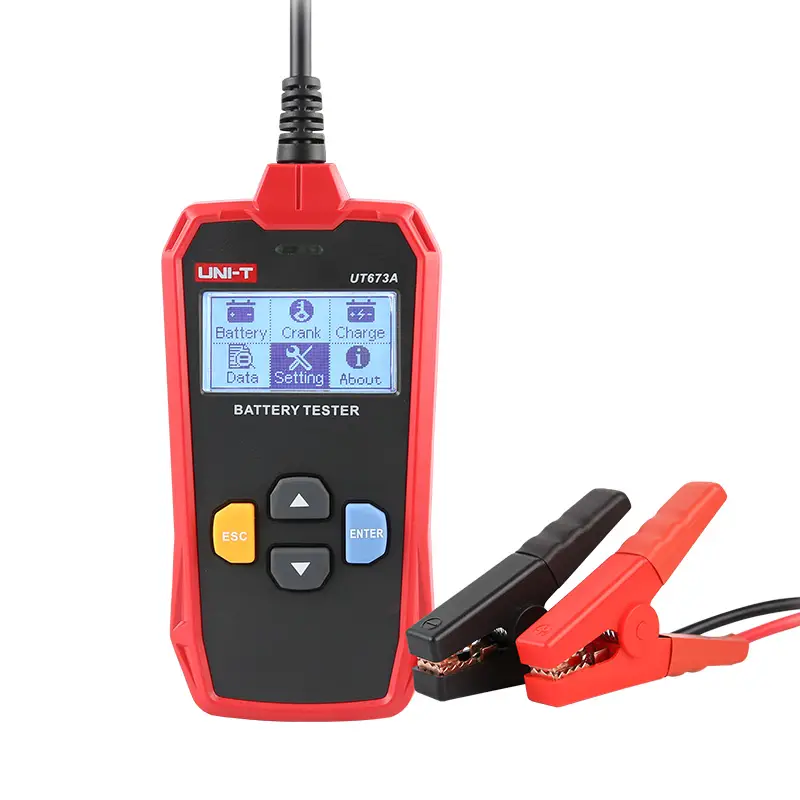

The UT673A battery tester analyzes the health of automobile batteries with capacities ranging from 3 to 250Ah. It can rapidly and accurately detect common battery faults.
12V cranking lead acid battery test
12/24V charging or cranking system test
Displays battery capacity, voltage, resistance, and life
Four-terminal Kelvin test
Supports 10 types of battery standards
Language option (Chinese/English)
Test without battery disassembly
LED color indication for test result
The UT673A battery tester analyzes the health of automobile batteries with capacities ranging from 3 to 250Ah. It can rapidly and accurately detect common battery faults.
12V cranking lead acid battery test
12/24V charging or cranking system test
Displays battery capacity, voltage, resistance, and life
Four-terminal Kelvin test
Supports 10 types of battery standards
Language option (Chinese/English)
Test without battery disassembly
LED color indication for test result
12V Battery Test Voltage: 7~16V DC
12V/24V Cranking System Test Voltage: 7~30V DC
12V/24V Charging System Test Voltage: 7~30V DC
Battery Types Supported: Ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, GEL battery, EFB battery
Battery Capacity: 3~250Ah
Battery Standards and Range:
CCA: 40~2000
BCI: 40~2000
CA: 40~2000
MCA: 40~2000
JIS: 26A17~245H52
DIN: 40~1400
IEC: 40~1400
EN: 40~2000
SAE: 40~2000
AH: 3~250AH
Over Voltage Protection: Yes
Reverse Connection Protection: Yes
Poor Contact Prompt: Yes
Battery Status Display: Yes
Battery Life Display: Yes
Battery Capacity Display: Yes
Battery Internal Resistance Display: Yes
Power: None, powered by external source
Display: 128 x 64 black and white lattice
Product Net Weight: 264g
Depth (mm): 22
Width (mm): 76
Height (mm): 142
Brand: UNI-T
Certificates: CE, FCC, RoHS
12V/24V Cranking System Test Voltage: 7~30V DC
12V/24V Charging System Test Voltage: 7~30V DC
Battery Types Supported: Ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, GEL battery, EFB battery
Battery Capacity: 3~250Ah
Battery Standards and Range:
CCA: 40~2000
BCI: 40~2000
CA: 40~2000
MCA: 40~2000
JIS: 26A17~245H52
DIN: 40~1400
IEC: 40~1400
EN: 40~2000
SAE: 40~2000
AH: 3~250AH
Over Voltage Protection: Yes
Reverse Connection Protection: Yes
Poor Contact Prompt: Yes
Battery Status Display: Yes
Battery Life Display: Yes
Battery Capacity Display: Yes
Battery Internal Resistance Display: Yes
Power: None, powered by external source
Display: 128 x 64 black and white lattice
Product Net Weight: 264g
Depth (mm): 22
Width (mm): 76
Height (mm): 142
Brand: UNI-T
Certificates: CE, FCC, RoHS
-
