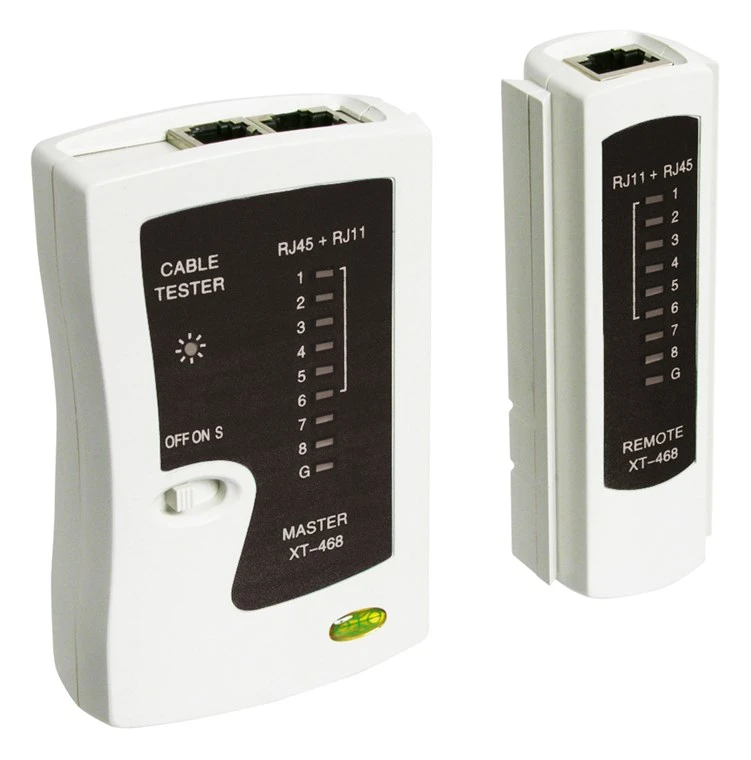

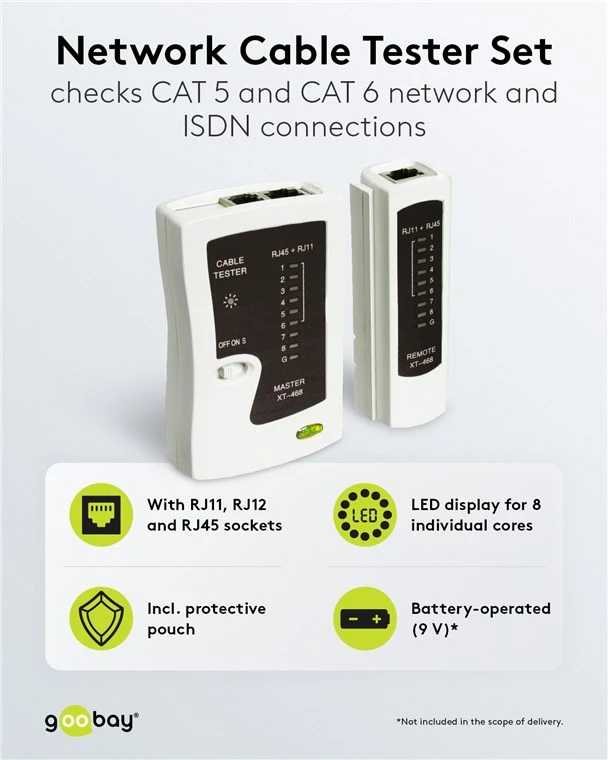

Network Cable Tester

for testing network connections with CAT 5, CAT 6 or CAT 7 and ISDN
Network tester for RJ11 and RJ45 cables to test individual cores for continuity, short circuits, wire reversal and cable defects
Reliably checks the function of 6-pin and 8-pin telephone and LAN cables (pin assignments: 6P6C, 6P4C, 6P2C, 8P8C, 8P4C)

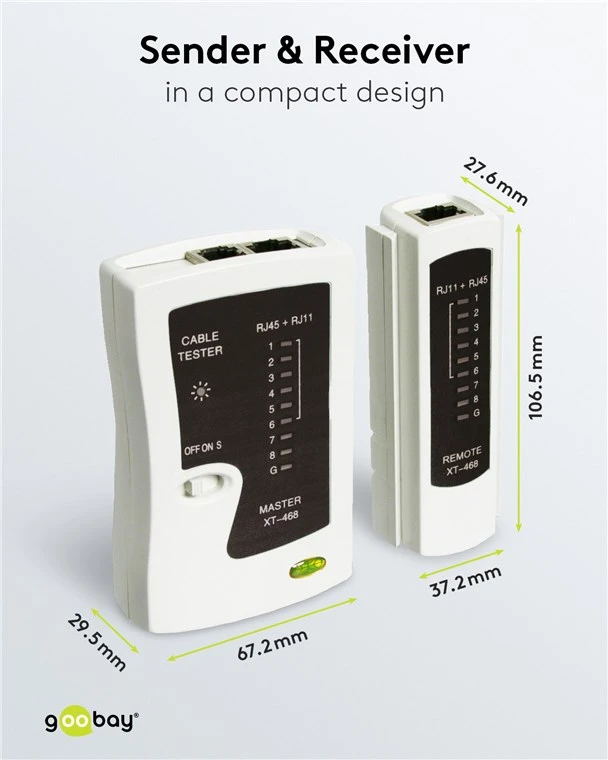

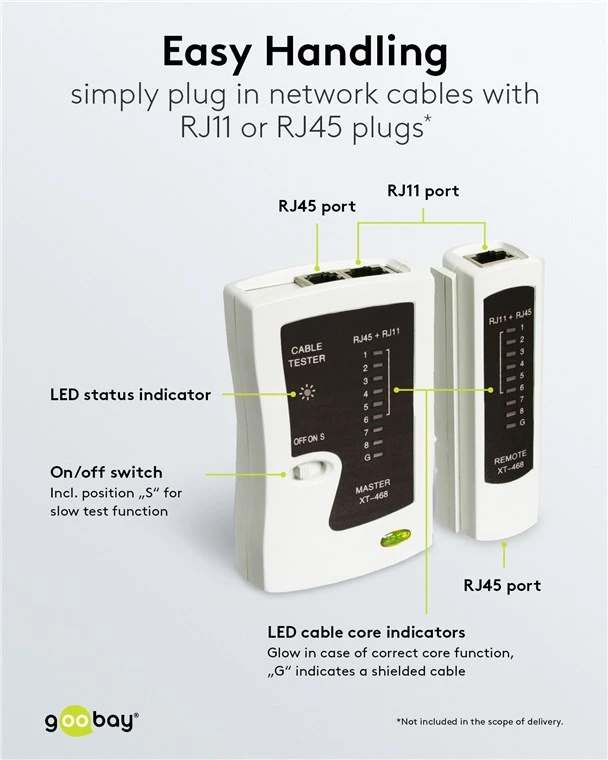

The ports of the main and remote units are connected to the CAT cable and indicate the function of the individual wires via the LEDs
The tester has the two speeds "normal" and "slow" and indicates via the "G" LED whether a shielded cable is connected
The network cable tester is powered by a 9 V battery (not included in the scope of delivery)
Supplied with protective pouch
The network kit is the handy solution for checking the functionality of telephone and CAT cables in your home network.
In the event of connection problems, the network tester helps to check the individual cable cores to determine or rule out a defective cable.
