Код товара:VFD-150P-48
Фото может отличаться от товара
DESCRIPTION

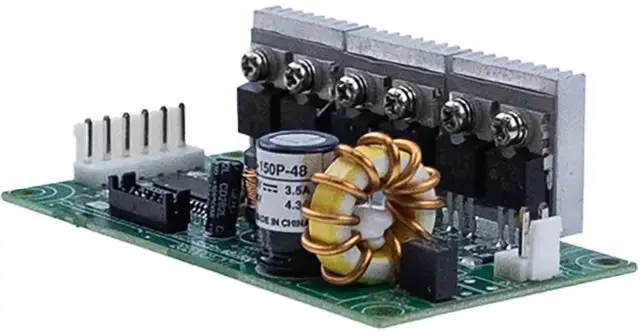

The VFD-150P-48 is a variable frequency drive that can be controlled by an external PWM controller.
The fanless design can extend the service life.
VFD for BLDC, induction motors and SynRM motors.
The VFD-150P-48 is a variable frequency drive that can be controlled by an external PWM controller.
The fanless design can extend the service life.
VFD for BLDC, induction motors and SynRM motors.
Input voltage: 20 to 55 VDC
Controlled by: external PWM controller
Design: Fanless
Peak load current: 200% for up to 5 seconds
Protection against: short circuit / OCP
Sensors provided: Current sensor - motor torque control
Sensors provided: DC bus voltage sensor - OVP / UVP
Sensors provided: Temperature sensor - OTP
Operating temperature: -30°C to 70°C
Suitable for: three-phase motors (BLDC, induction motors, SynRM)
Dimensions: 4"x2"
Power (W): 150
Brand: MEAN WELL
Controlled by: external PWM controller
Design: Fanless
Peak load current: 200% for up to 5 seconds
Protection against: short circuit / OCP
Sensors provided: Current sensor - motor torque control
Sensors provided: DC bus voltage sensor - OVP / UVP
Sensors provided: Temperature sensor - OTP
Operating temperature: -30°C to 70°C
Suitable for: three-phase motors (BLDC, induction motors, SynRM)
Dimensions: 4"x2"
Power (W): 150
Brand: MEAN WELL
-
