Код товара:UT-CS07
Фото может отличаться от товара

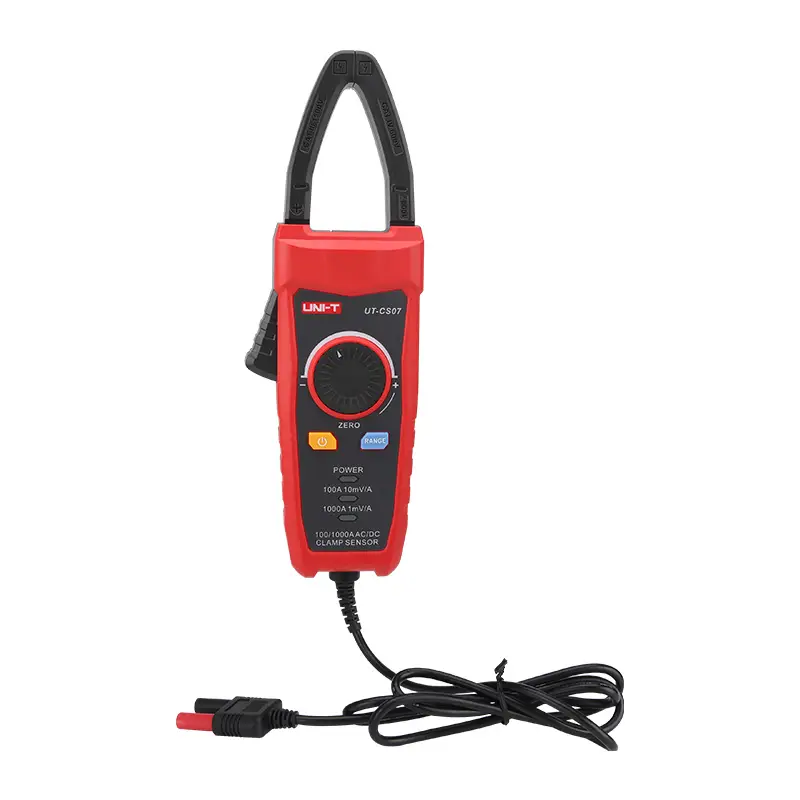

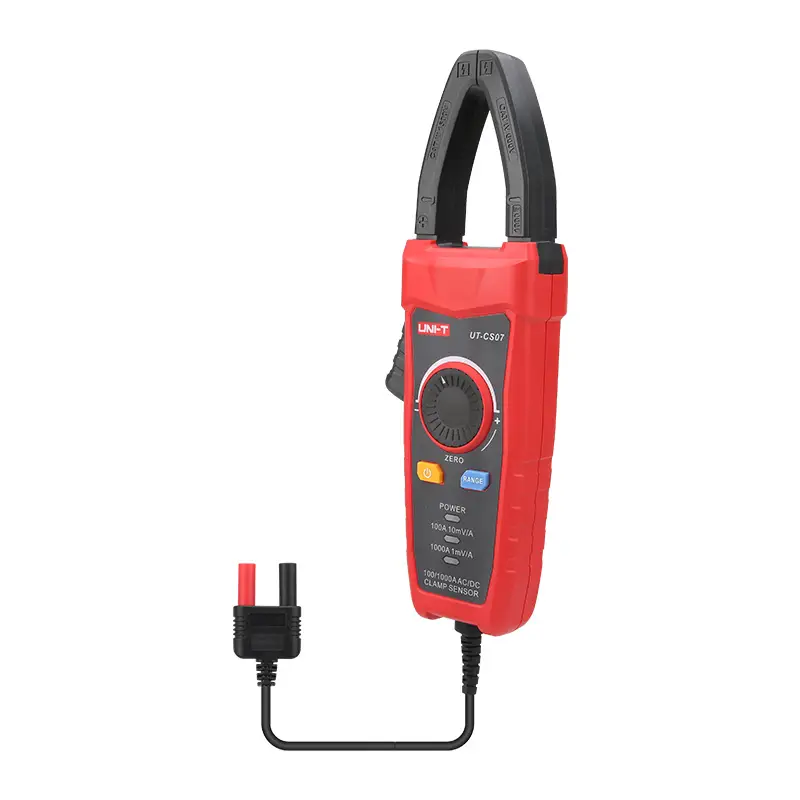

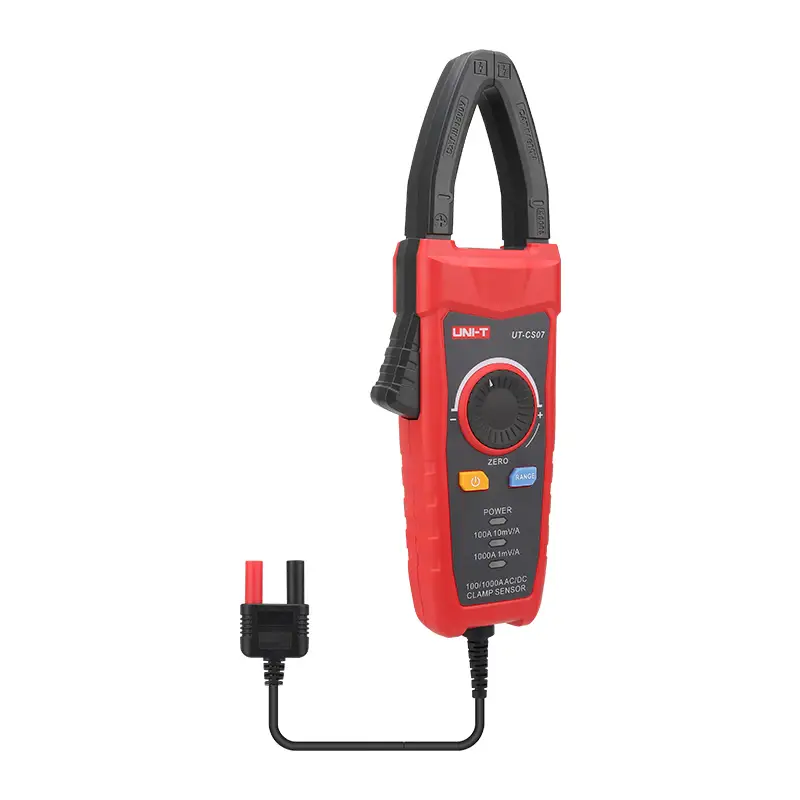

UT-CS07 AC/DC 1000A Clamp sensor
The UT-CS07 is a high-reliability and high-security AC/DC current sensor that can be used as an expansion device for multimeter current measurement. It measures current through the sensor and converts the current value into a voltage value. The converted voltage is then transmitted to the multimeter via a cable, and the multimeter displays the corresponding voltage value. It can measure up to 1,000 A of AC/DC current. With reliable measurement accuracy and a unique appearance, it has become a practical auxiliary tool for current acquisition in electrical instruments.
Clamp size: 35mm
Suitable for: inverters, combiner boxes, copper busbars
Compatible DMMs: UT117C, UT196, UT139C, UT197, UT197PV and etc.
Zero function
AC/DC 1000A input protection
The UT-CS07 is a high-reliability and high-security AC/DC current sensor that can be used as an expansion device for multimeter current measurement. It measures current through the sensor and converts the current value into a voltage value. The converted voltage is then transmitted to the multimeter via a cable, and the multimeter displays the corresponding voltage value. It can measure up to 1,000 A of AC/DC current. With reliable measurement accuracy and a unique appearance, it has become a practical auxiliary tool for current acquisition in electrical instruments.
Clamp size: 35mm
Suitable for: inverters, combiner boxes, copper busbars
Compatible DMMs: UT117C, UT196, UT139C, UT197, UT197PV and etc.
Zero function
AC/DC 1000A input protection
Certifications: CE, cETLus, RoHS
AC/DC Current: 1000A
Frequency response: 45Hz~400Hz
Output ratio: 1000A @ 10mV/1A; 100A @ 1mV/1A
Category rating: CATIII 1500V /CAT IV 600V
ACA Current (100.0A): 10mV/A, ±(1.5%+0.5A)
ACA Current (1000A): 1mV/A, ±(2.0%+0.5A)
DCA Current (100.0A): 10mV/A, ±(1.5 %+0.5 A) for 45 Hz~200 Hz, ±(2.0 %+0.5 A) for 200 Hz~400 Hz
DCA Current (1000A): 1mV/A, ±(2.0%+0.5 A) for 45 Hz~200 Hz, ±(2.5 %+0.5 A) for 200 Hz~400 HZ
Jaw size: 35mm conductor or 65 * 8 mm busbar
Output ratio: 10mV/A & 1mV/A
Wire length: 1.1m
Frequency (ACA): 50 Hz~400 Hz
Power supply: AA * 2 = 3V; working current: <50mA
Low battery indication: yes
Drop test: 1m
Pollution degree: 2
Working environment: 0°C~30°C(<75%RH), 30°C~40°C(<50%RH)
Storage environment: -10°C~50°C(<80%RH)
Overvoltage category: CATIII 1500V/CATIV 600V
Certificates: CE
Dimension: 276mm * 86mm * 50mm
Tail cable length: Around 1.1m
Depth (mm): 50
Width (mm): 86
Height (mm): 276
Brand: UNI-T
AC/DC Current: 1000A
Frequency response: 45Hz~400Hz
Output ratio: 1000A @ 10mV/1A; 100A @ 1mV/1A
Category rating: CATIII 1500V /CAT IV 600V
ACA Current (100.0A): 10mV/A, ±(1.5%+0.5A)
ACA Current (1000A): 1mV/A, ±(2.0%+0.5A)
DCA Current (100.0A): 10mV/A, ±(1.5 %+0.5 A) for 45 Hz~200 Hz, ±(2.0 %+0.5 A) for 200 Hz~400 Hz
DCA Current (1000A): 1mV/A, ±(2.0%+0.5 A) for 45 Hz~200 Hz, ±(2.5 %+0.5 A) for 200 Hz~400 HZ
Jaw size: 35mm conductor or 65 * 8 mm busbar
Output ratio: 10mV/A & 1mV/A
Wire length: 1.1m
Frequency (ACA): 50 Hz~400 Hz
Power supply: AA * 2 = 3V; working current: <50mA
Low battery indication: yes
Drop test: 1m
Pollution degree: 2
Working environment: 0°C~30°C(<75%RH), 30°C~40°C(<50%RH)
Storage environment: -10°C~50°C(<80%RH)
Overvoltage category: CATIII 1500V/CATIV 600V
Certificates: CE
Dimension: 276mm * 86mm * 50mm
Tail cable length: Around 1.1m
Depth (mm): 50
Width (mm): 86
Height (mm): 276
Brand: UNI-T
-
