Klahvlüliti 2*(ON)-OFF-(ON) 250V 2A
- Код товара: 8018A3
- 6.00 €
-
- Цена для постоянного клиента 5.70 € -5%
Залогиньтесь и получите 5% скидку
Pealadu
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
1 шт.
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
1 шт.
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
Tallinn, Pärnu mnt. 238
2 шт.
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
Tartu, Lääneringtee 39
8 шт.
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
Rakvere, Haljala tee 4
0 шт.
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
Pärnu, Papiniidu 8
0 шт.
Pargi keskuse Oomipood
Jõhvi, Puru tee 1
Jõhvi, Puru tee 1
1 шт.

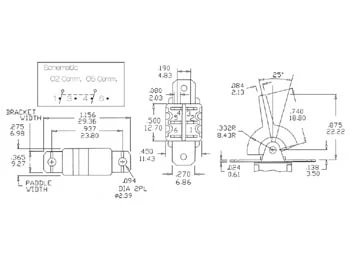

Specifications:
switching position:
2-3, 5-6: (ON)
OPEN: OFF
2-1, 5-4: (ON)
contact rating: 5A with resistive load of 120Vac or 12Vdc
electrical life: 50000 make-and-break cycles at full load
contact resistance: initially max. 10mohm at 2-4Vdc / 100mA for both coin silver and gold-plated contacts
insulation resistance: min. 1000Mohm
dielectric strength: 1000Vrms at sea level
operating temperature: -30°C to +85°C
materials:
case: diallyl phthalate (DAP)
rockers: nylon
bushing: brass, nickel-plated
housing: stainless steel
terminal/switch support: brass, electrotin-plated
contact: coin silver, silver-plated
centre contact and terminal: brass, silver-plated
| Switch.method | 2*(ON)-OFF-(ON) |
| Тип | ROCKER |
| Цвет | черный |
| Сила тока | 5A/120V |
