Klahvlüliti 2*(ON)-OFF-(ON) 250V 2A

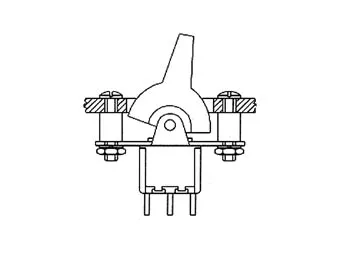

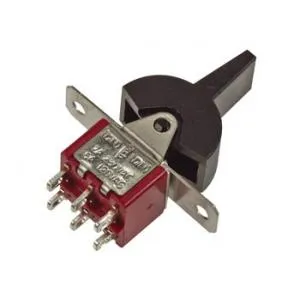

Pilt on illustratiivne

Klahvlüliti 2*(ON)-OFF-(ON) 250V 2A

Tootekood: 8018A3
Pealadu
Tallinn, Peterburi tee 90F
1 tk
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
1 tk
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
2 tk
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
6 tk
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
0 tk
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
0 tk
Pargi keskuse Oomipood
Jõhvi, Puru tee 1
1 tk

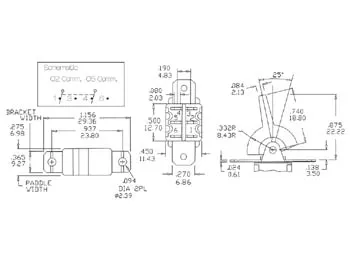

Specifications:

switching position:

2-3, 5-6: (ON)

OPEN: OFF

2-1, 5-4: (ON)

contact rating: 5A with resistive load of 120Vac or 12Vdc

electrical life: 50000 make-and-break cycles at full load

contact resistance: initially max. 10mohm at 2-4Vdc / 100mA for both coin silver and gold-plated contacts

insulation resistance: min. 1000Mohm

dielectric strength: 1000Vrms at sea level

operating temperature: -30°C to +85°C


materials:

case: diallyl phthalate (DAP)

rockers: nylon

bushing: brass, nickel-plated

housing: stainless steel

terminal/switch support: brass, electrotin-plated

contact: coin silver, silver-plated

centre contact and terminal: brass, silver-plated

Lülitusmeetod2*(ON)-OFF-(ON)
TüüpROCKER
Värvmust
Kontakti voolutugevus5A/120V
