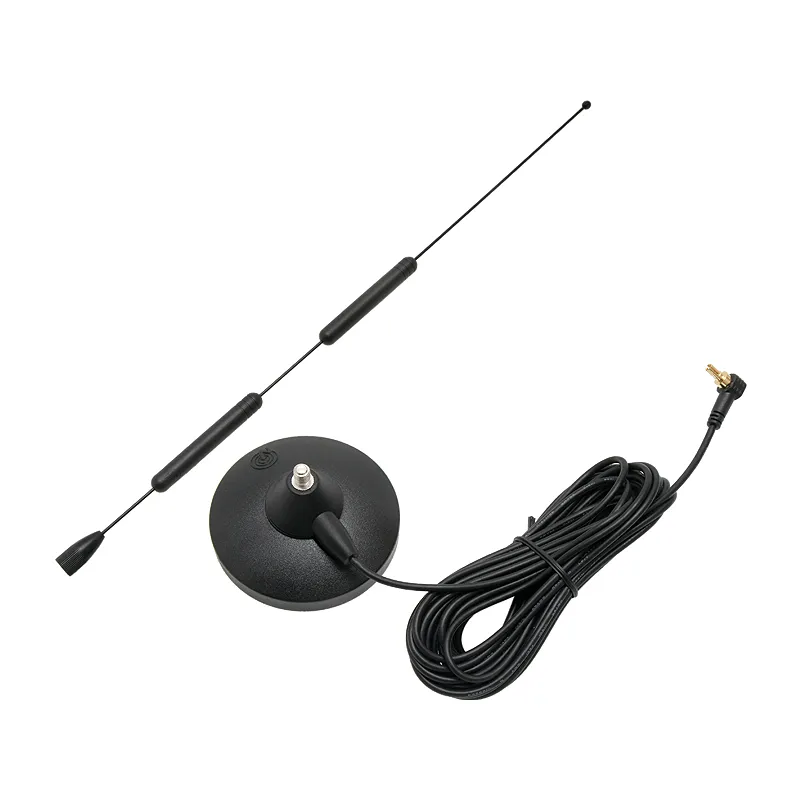

GSM antenna for modem +11.5dB 46cm CRC9 wire length 5m
Product is not available
Very high efficiency omnidirectional magnetic antenna for all GPRS/EDGE/UMTS and HSDPA telephone systems operating in the frequency band 850MHZ-2170MHz. The antenna perfectly solves the problem of low coverage due to its exceptionally high signal gain. Equipped with a 5 meter long integrated cable terminated with a universal connector for Huawei modems. It works very well wherever mobile solutions are needed. The gain of the antenna is 11 dBi, which allows you to get a stable GPRS / EDGE connection in most situations. The magnetic base allows the antenna to be installed quickly and easily on virtually any flat metal surface.
Suitable for modems:Huawei: E122, E150, E156, E156G, E159, E160, E160E, E160G, E161, E169, E169G, E173, E173S-2, E173U-2, E176, E176G, E179, E182, E182E, E230, E352, E35 2s 5 , E353U-2, E353S-2, E367, E372, E600, E612, E618, E620, E630, E660, E660A, E1612, E1762, E1820, E1821, E1823, E3131, E3251, E3276, EC321, UMG169 1, UMG181
Alcatel : OT X221S
ZTE: MF612
and others when there is a CRC9 connection
ANTENNA TYPE: Dual system magnetic antenna designed for GSM modems, gateways and other applications
FREQUENCY: 850-960 1710-2170 MHZ
RESISTANCE: Nom. 50 Ohm
POLARITY: LINEAR / VERTICAL
GAIN: 11dBi
VSWR: <1.5
MAX POWER: 10 Watt
DIMENSIONS: Magnetic base - diameter: 70mm H: 460mm, Bat (radiator): 410mm
Black colour
WEIGHT: 230 g
INSTALLATION: On vehicle roofs, flat surfaces of equipment
MATERIAL: ABS and PCB
CABLE: Low loss RG 174U Length: 5m
