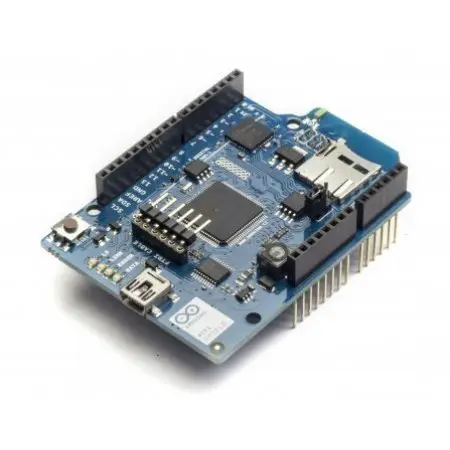

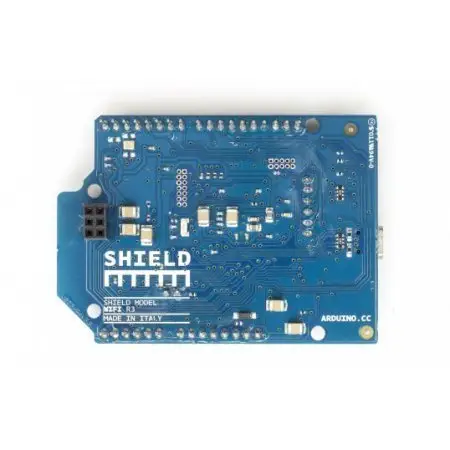

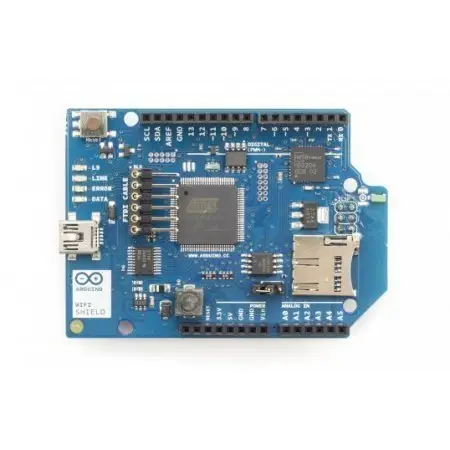

Arduino Shield - WIFI
SKU:A000058
Manufacturer:Arduino
Image is for illustrative purposes only
The Arduino WiFi Shield connects your Arduino to the internet wirelessly. Connect it to your wireless network by following a few simple instructions. Every element of the platform - hardware, software and documentation - is freely available and open-source.
Requires an Arduino board (not included)Operating voltage 5 V (supplied from the Arduino Board)Connection via: 802.11b/g networksEncryption types: WEP and WPA2 PersonalConnection with Arduino on SPI portOn-board micro SD slotICSP headersFTDI connection for serial debugging of WiFi shieldMini-USB for updating WiFi shield firmware
Requires an Arduino board (not included)Operating voltage 5 V (supplied from the Arduino Board)Connection via: 802.11b/g networksEncryption types: WEP and WPA2 PersonalConnection with Arduino on SPI portOn-board micro SD slotICSP headersFTDI connection for serial debugging of WiFi shieldMini-USB for updating WiFi shield firmware
| Requires an Arduino board: | (not included) |
| Operating voltage: | 5V |
| Connection via: | 802.11b/g networks |
| Encryption types: | WEP and WPA2 |
| Connection with Arduino on: | SPI port |
| On-board: | micro SD slot |
| Header: | ICSP |
| FTDI connection: | for serial debugging of WiFi shield |
| Mini-USB: | for updating WiFi shield firmware |
