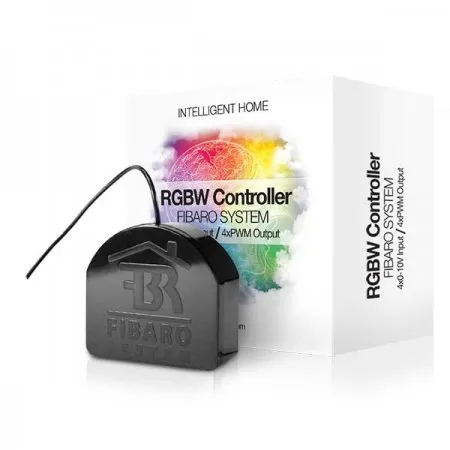

Image is for illustrative purposes only
Fibaro RGBW Controller 12-24VDC Z-wave
Product is not available
FIBARO RGBW Controller is a universal, Z-Wave compatible RGB/RGBW controller. FIBARO RGBW Controller uses PWM output signal, which enables it to control LED, RGB, RGBW strips, halogen lights and fans. Controlled devices may be powered by 12 or 24 VDC. In addition the device supports up to four, 0V – 10V analog sensors, such as temperature sensors, humidity sensors, wind sensors, air quality sensors, light sensors etc. All IN and OUT terminals may be user configured for LED control or 0V-10V signal readouts.
Back To Top
Features
Compatible with any Z-Wave Controller
Advanced microprocessor control
Different operating modes
Active power and energy metering functionality
Multiple colour presets
Active element: transistor
To be installed in standard wall switch boxes
Power supply: 12/24V DC
Rated output power: combined 12A (sum of all connected output channels)
6A for single output channel
PWM output frequency: 244Hz
Electricity consumption: 0.3W
Radio signal power: 1mW
For installation in boxes: Ø≥50 mm
Max load: at 12V – 144W combined
at 24V – 288W combined
EU directive compliance: RoHS 2011/65/EU
EMC 2004/108/EC
R&TTE 1999/5/EC
Radio protocol: Z-Wave
Radio frequency: 868.4 MHz EU
908.4 MHz US
921.4 MHz ANZ
869.0 MHz RU
Radio transmit power: up to -1 dBm (EIRP)
Range: up to 50m outdoors / up to 30m indoors
(depending on terrain and building structure)
Operational temperature: 0 – 40°C
Dimensions (L x W x H): 42 x 37 x 17 mm
