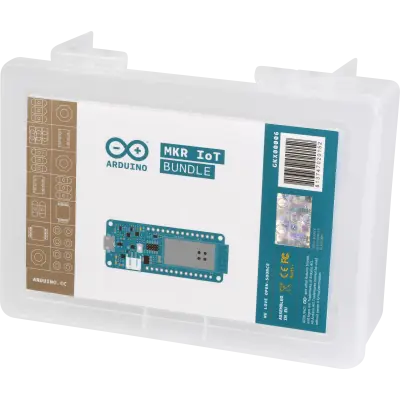

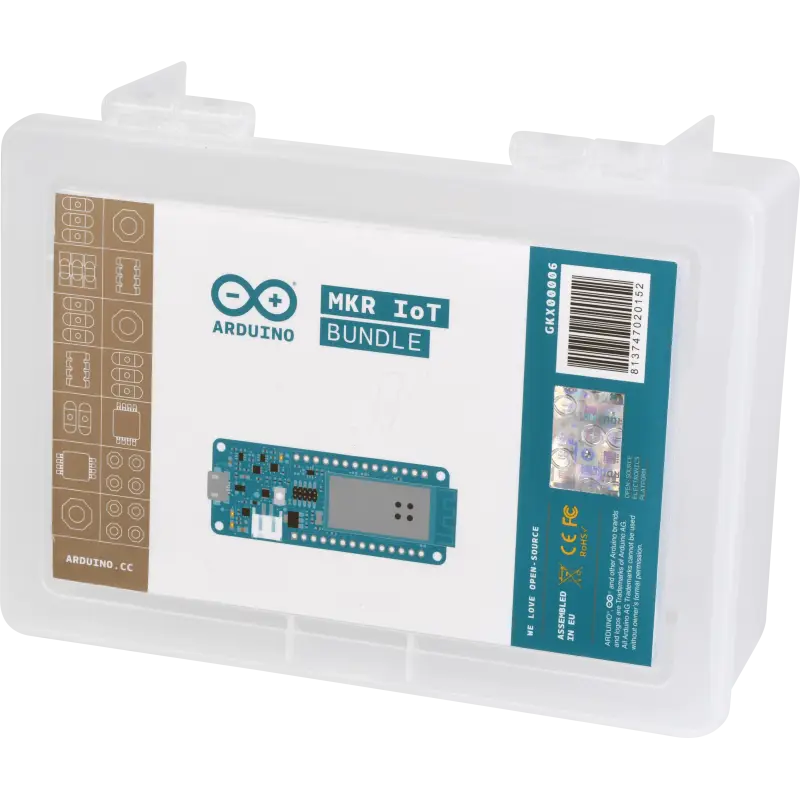

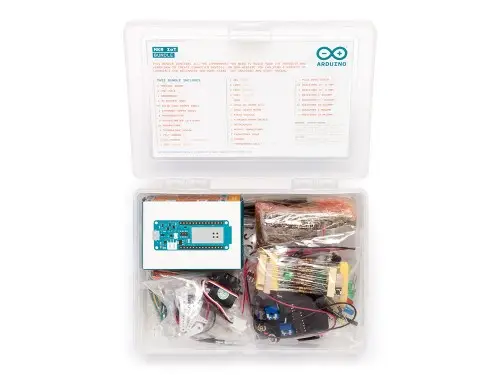

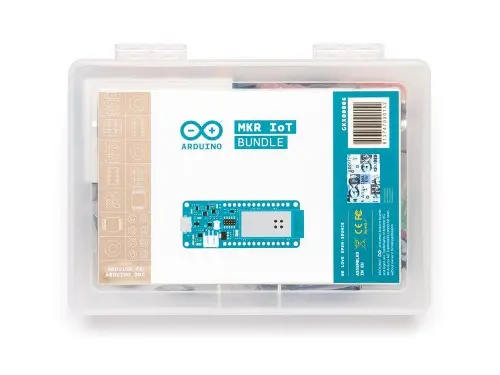

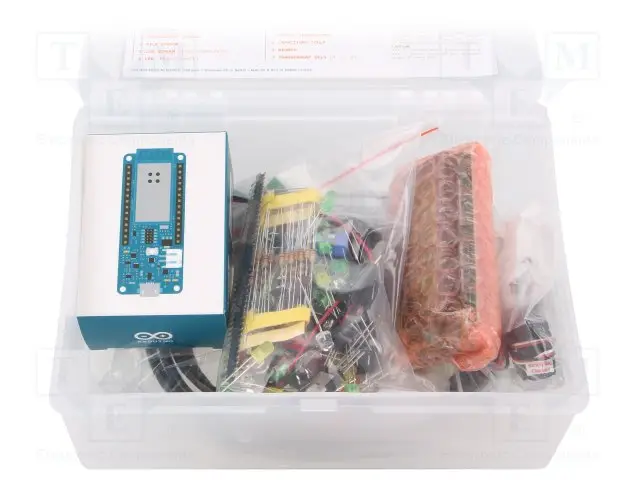

MKR IoT Bundle komplekt
The MKR IoT Bundle walks you through the basics of using the Arduino MKR1000 for IoT applications. You'll learn through building 5 creative experiments thanks to the step by step online tutorials available on the Arduino Project Hub platform. The MKR IoT bundle includes a selection of the most common and useful electronic components to build 5 IoT experiments.
The 5 experiments you can make:
I Love You Pillow
Puzzle Box
Pavlov's Cat
The Nerd
Plant Communicator
Taking your first steps into the world of connected objects has never been easier - see how with the Arduino IoT Bundle and Arduino IoT Cloud
The kit is based around the MKR1000—a powerful board that combines the functionality of the Zero and the Wi-Fi Shield—and enables Makers to add connectivity to their designs with minimal prior networking experience.

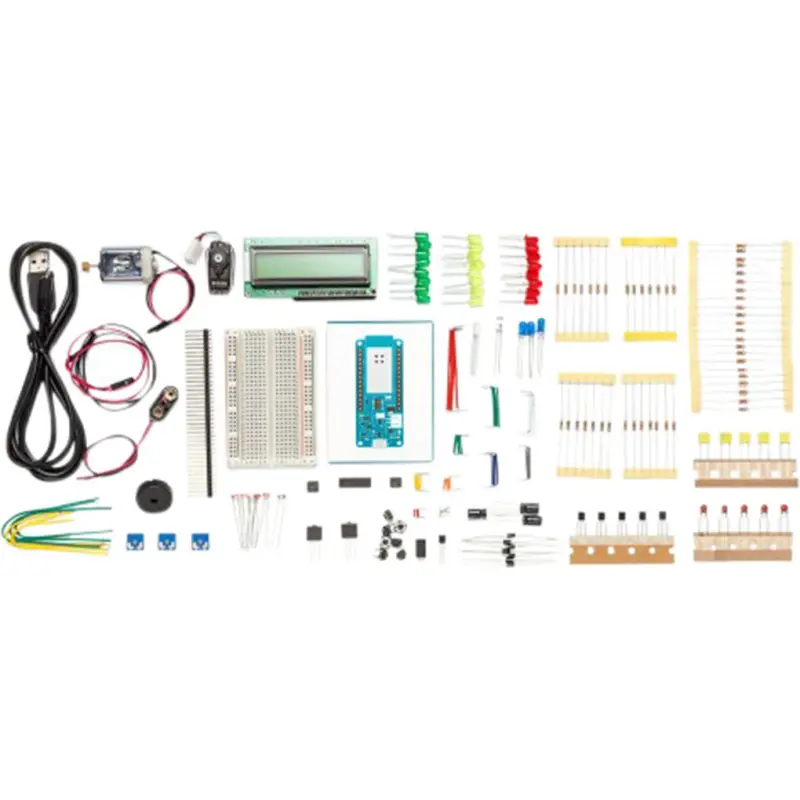

Each bundle includes:
1 Arduino MKR1000 board, with header soldered.
1 micro USB cable,
1 400-point breadboard,
70 solid-core jumper wires,
1 9V battery snap,
1 stranded jumper wire
1 stranded jumper wire,
6 phototransistors,
3 potentiometers (10 kilohm),
10 pushbuttons,
1 temperature sensor (TMP36),
1 tilt sensor,
1 alphanumeric LCD (16 x 2 characters),
1 bright white,
34 LEDs (1 bright white, 1 RGB, 8 red, 8 green, 8 yellow, 3 blue),
1 small DC motor (6/9V),
1 small servo motor,
1 piezo capsule (PKM17EPP-4001-B0),
1 H-bridge motor driver (L293D),
1 octocouplers (4NE5),
2 MOSFET transistors (IRF520),
5 capacitors (100uF),
5 diodes (1N4007),
3 transparent gels (R,G,B)
1 male pin strip (40 x 1),
20 resistors (220 ohm),
5 resistors (560 ohm),
5 resistors (1 kilohm),
5 resistors (4.7 kilohm),
20 resistors (10 kilohm),
5 resistors (1 megohm),
5 resistors (10 megohm)
Please note, don't connect 9V to the board, as it will be damaged.
You can use the 9v Battery strip to supply an external component.
-
