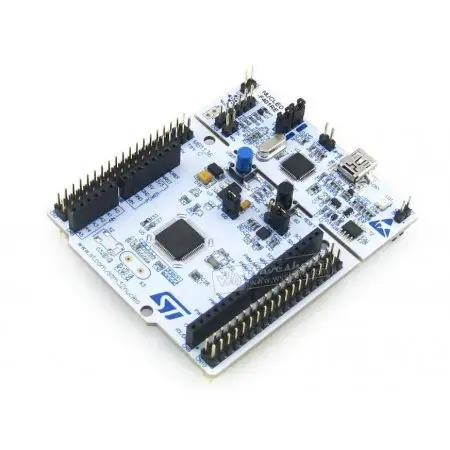

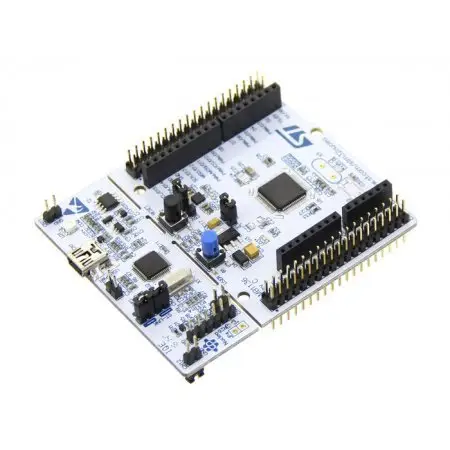

Nucleo arendusplaat F401RE STM32F401RET6
- SKU: 2394223
The product is no longer available. Product is displayed only for informational purposes.
The STM32 Nucleo boards line is proposing a very affordable solution with high connectivity means. Indeed, the Arduino™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
In addition, the Nucleo-F401RE board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer: the board can be directly connected to the PC !
Each STM32 Nucleo board allows agile development with fine-tuning of both hardware and software on-the-fly at each prototyping stage. Investment in application shields is also protected as most shields can be used across various projects leveraging the scalability and diversity of the STM32 family.
In addition, the Nucleo-F401RE board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer: the board can be directly connected to the PC !
Each STM32 Nucleo board allows agile development with fine-tuning of both hardware and software on-the-fly at each prototyping stage. Investment in application shields is also protected as most shields can be used across various projects leveraging the scalability and diversity of the STM32 family.
| Silicon Manufacturer: | STMicroelectronics |
| Core Architecture: | ARM |
| Core Sub-Architecture: | Cortex-M4 at 84Mhz |
| Silicon Core Number: | STM32F401RET6 |
| Silicon Family Name: | STM32F4xx |
| No. of Bits: | 32bit |
| Flash: | 512 KBytes |
| ADC: | 12bit 2.4 Msps up to 10 channels |
| Timers: | Up to 10 |
| Up to: | 3x I2C, 3x USARTs, 4x SPIs, SDIO |
| USB 2.0: | Full Speed with on-chip PHY |
| Kit Contents: | Nucleo board STM32F401RET6, Software |
