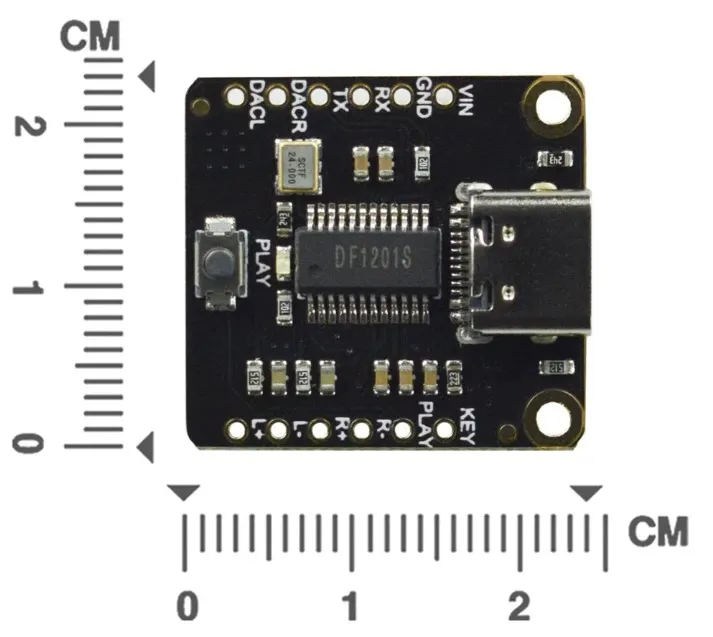

Image is for illustrative purposes only
Fermion - DFPlayer Pro - 2-channel mini MP3 player with 128 MB built-in memory - DFRobot DFR0768
- SKU: 3879662
The product is no longer available. Product is displayed only for informational purposes.
A two-channel mini MP3 player made by DFRobot. It can be operated in four ways: with Arduino (and related boards), via AT commands, with ADKEY key or physically with function buttons on the board. DFPlayer Pro has 128 MB of built-in memory, so it can be used directly and without the need for an FT card. In addition, the module is equipped with a USB Type C connector, with which you can easily transfer audio files. An unquestionable advantage is also the function that allows you to rewind and fast forward the song.
Type: MP3 mini player
Number of channels: 2
Built-in memory: 128 MB
Support for analog U-disks: yes
Operating options:
from Arduino level
ADKEY control
using AT commands
physical control using built-in buttons
Built-in power amplifier: yes
Supported audio formats: MP3, WAV, WMA, FLAC, AAC, APE
Communication interface: UART
Supply voltage: 3.3 V / 5 V
Operating current: > 20 mA
Operating temperature range: from -20°C to 70°C
Recommended humidity during operation: 5% to 95% RH
Module dimensions: 23 x 24.5 mm
