Capacitor: electrolytic; THT; 10uF; 450VDC; Ø12.5x20mm; Pitch: 5mm
SKU:KJ2W100MNN1220
New

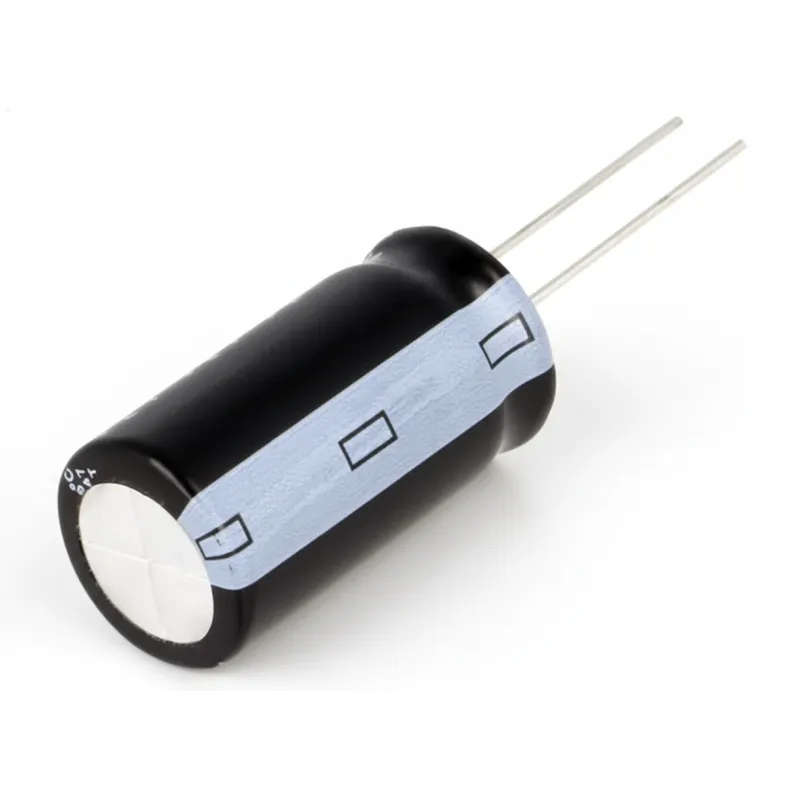

Image is for illustrative purposes only
This Elite KJ series aluminum electrolytic capacitor is a downsized, radial (THT) component designed for high reliability and extended operational life in demanding power applications.
Core Specifications
- Capacitance: 10 µF
- Rated Voltage: 450 V DC
Key Features
- Radial leads (THT) for through-hole mounting
- Downsized body construction for space efficiency
- Engineered for high permissible ripple current capability
- Extended operational lifespan: Rated up to 12,000 hours at 105°C
- Body Dimensions: Ø12.5 x 20 mm
- Lead Pitch: 5.0 mm
Applications
This capacitor is specifically suited for electronic ballast circuits and other applications requiring high reliability and a long operational lifespan due to its high ripple current capability and extended endurance rating.
Core Specifications
- Capacitance: 10 µF
- Rated Voltage: 450 V DC
Key Features
- Radial leads (THT) for through-hole mounting
- Downsized body construction for space efficiency
- Engineered for high permissible ripple current capability
- Extended operational lifespan: Rated up to 12,000 hours at 105°C
- Body Dimensions: Ø12.5 x 20 mm
- Lead Pitch: 5.0 mm
Applications
This capacitor is specifically suited for electronic ballast circuits and other applications requiring high reliability and a long operational lifespan due to its high ripple current capability and extended endurance rating.
Capacitance: 10 µF
Capacitance Tolerance: ±20% (at 25°C, 120Hz)
Category Temperature Range: -25 ~ +105 °C
Dimensions (Diameter x Length): Ø12.5x20 mm
Dissipation Factor (tanδ Max): 0.24 (at 25°C, 120Hz, for 350-450V)
Endurance/Load Life: 10,000 to 12,000 hours at 105°C
Lead Pitch (F): 5.0 mm
Manufacturer Series: KJ
Mounting: THT (Radial Lead)
Rated Voltage: 450 VDC
Type of capacitor: Electrolytic (Aluminum)
