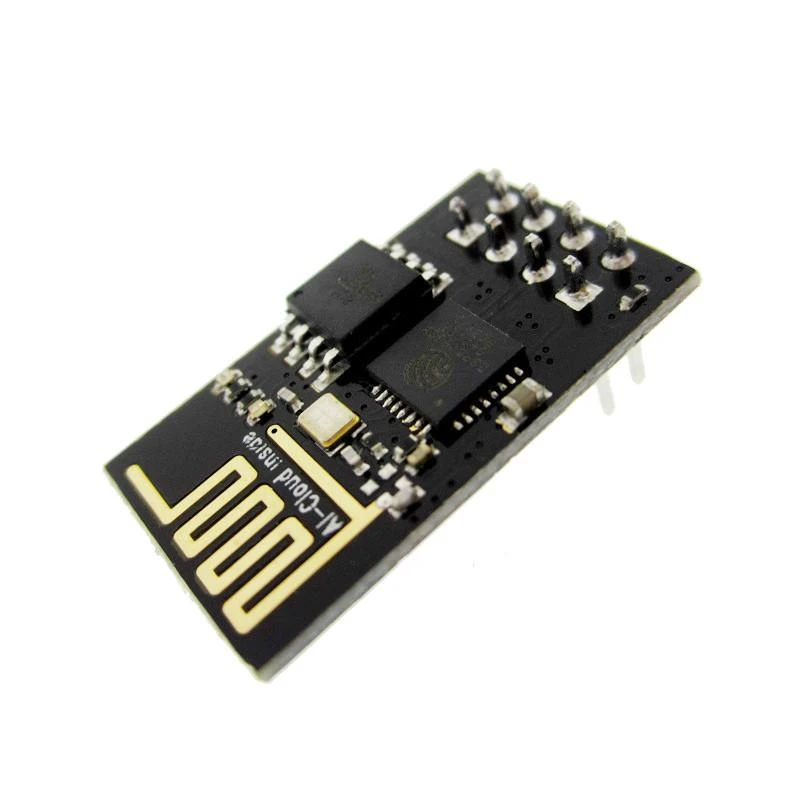

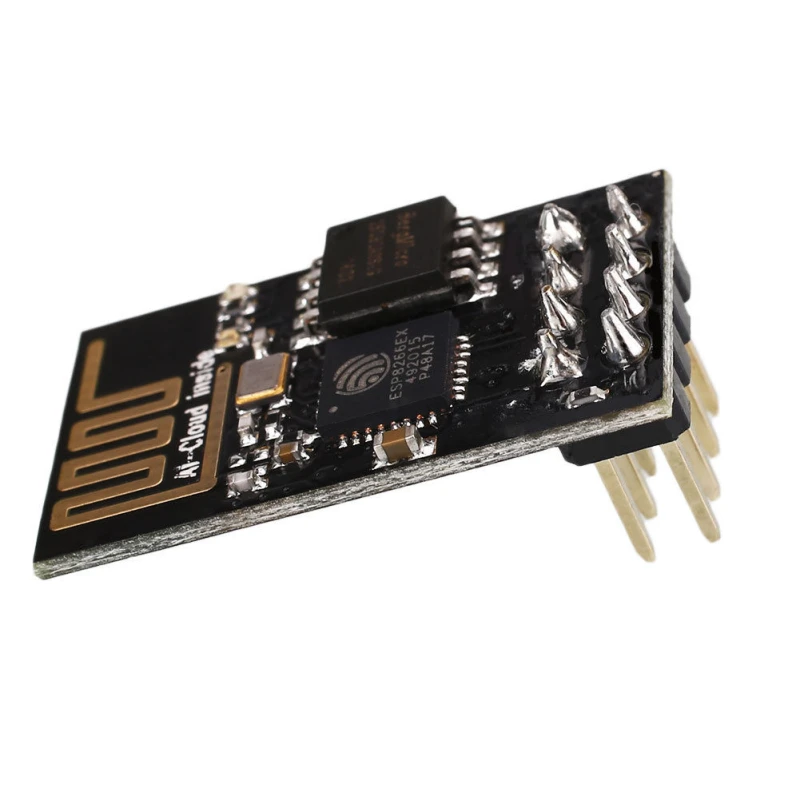

ESP8266 WiFi serial port moodul ESP-01


 Püsikliendi hind

5+ 5.25€
1+ 6.56€



Pealadu, Peterburi tee 90F, Tallinn 6
Peterburi tee Oomipood, Peterburi tee 90F, Tallinn 1
Järve keskuse Oomipood, Pärnu mnt. 238, Tallinn 2

The ESP8266 WiFi Module is a self contained SOC with integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. The ESP8266 is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. Each ESP8266 module comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers (and that’s just out of the box)! The ESP8266 module is an extremely cost effective board with a huge, and ever growing, community.

This module has a powerful enough on-board processing and storage capability that allows it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, is designed to occupy minimal PCB area. The ESP8266 supports APSD for VoIP applications and Bluetooth co-existance interfaces, it contains a self-calibrated RF allowing it to work under all operating conditions, and requires no external RF parts.

- 802.11 b / g / n wireless standards;
- STA / AP modes support ;
- TCP / IP protocol stack, One socket;
- Supports standard TCP / UDP Server and Client;
- Supports serial port baud rate configuration: 1200/2400/4800/9600/19200/38400/57600/74800/115200 bps;
- Supports serial data bits: 5/6/7/8 bits;
- Supports serial parity: none;
- Supports serial stop bits: 1/2 bit;
- Pin-compatible with Arduino UNO, Mega;
- Arduino Pinout 2/3/4/5/6/7/8/9/10/11/12/13;

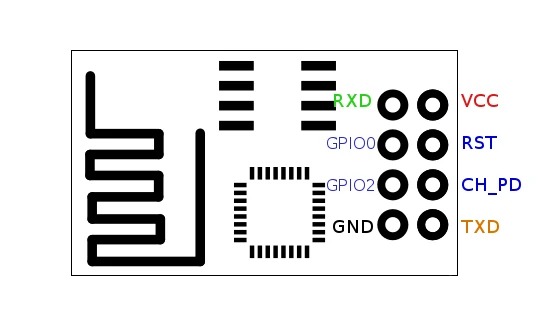

- ESP8266 GPIO Pinout 0/2/4/5/9/10/12/13/14/15/16 / ADC / EN / * UART TX / UART RX;
- KEY button: modes configuration;
- Dual-Ports DIP switches: switching Arduino and ESP8266;
- WiFi operation current: continuous transmission operation: ≈70mA (200mA MAX), idle mode: <200uA;
- Serial WiFi transmission rate: 110-460800bps;
- Temperature: -40℃ ~ + 125 ℃;
- Humidity: 10%-90% non-condensing;
- Processor: L106 32-bit RISC 80 MHz
- Memory:
        32 KiB instruction RAM
        32 KiB instruction cache RAM
        80 KiB user data RAM
        16 KiB ETS system data RAM
- External QSPI flash: 8MB

MicroPython on the ESP82660BDownload
