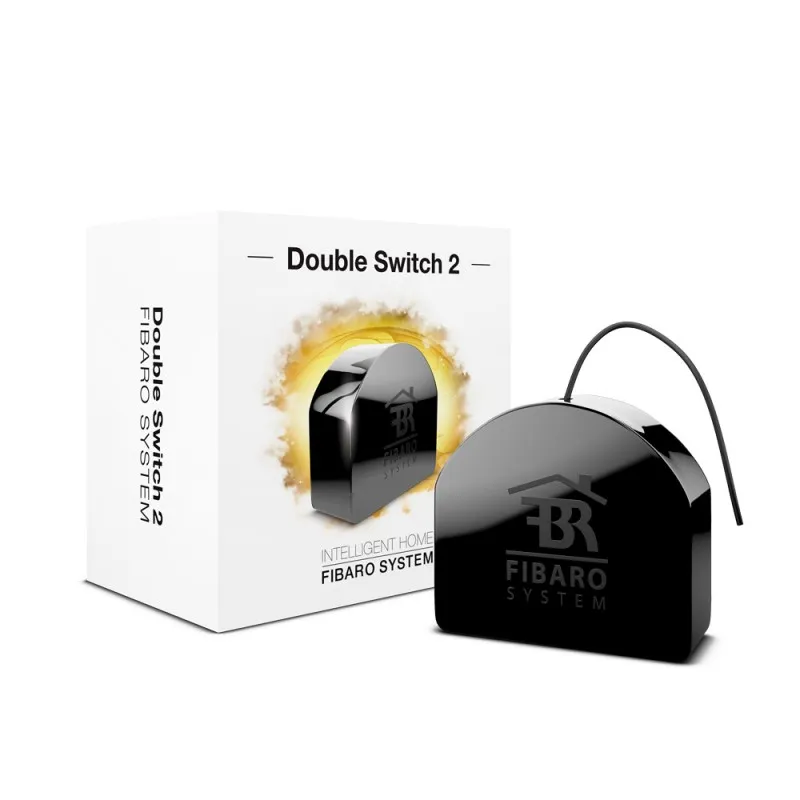

Fibaro Double Switch 2*6A 230V Z-wave
FIBARO Switch 2 is designed to be installed in standard wall switch boxes or anywhere else where it is necessary to control electric devices. FIBARO Switch 2 allows to control connected devices either via the Z-Wave+ network or via a switch connected directly to it and is equipped with active power and energy consumption metering functionality.
Double Switch 2 (FGS-223) – can control two electic devices
Compatible with any Z-Wave or Z-Wave+ Controller
Supports protected mode (Z-Wave network security mode) with AES-128 encryption
Advanced microprocessor control
Active power and energy metering functionality
Works with various types of switches – momentary, toggle
three-way, etc
To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
FIBARO Switch 2 is an extension unit
Power supply: 100-240V~ 50/60 Hz
Rated load current:
Double Switch 2 (FGS-223):
IEC standards: 6.5A per channel, 10A overall
UL standards (resistive loads): 6A per channel, 9.5A overall
UL standards (incandescent loads): 3A per channel
Operating temperature: 0-35°C
For installation in boxes: Ø ≥ 50mm, depth ≥ 60mm
Range: up to 50m outdoors
up to 40m indoors
(depending on terrain and building structure)
Comply with EU directives: RED 2014/53/EU
RoHS 2011/65/EU
Dimensions (L x W x H): 42.5 x 38.25 x 20.3 mm
