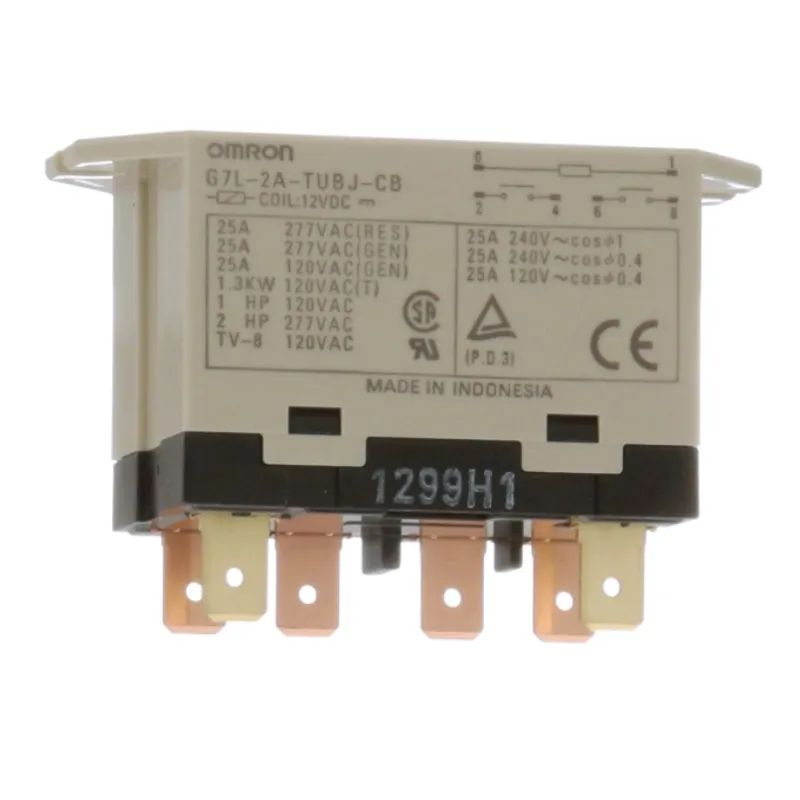

Relay 12V 25A/250VAC

Manufacturer

OMRON OCB

Type of relay

electromagnetic

Contacts configuration

DPST-NO

Rated coil voltage

12V DC

Contact current max.

25A

Relay series

G7L

Relay variant

power

Operating temperature

-25...60°C

Mounting

on panel

Coil resistance

75Ω

Body dimensions

68.5x33.5x47mm

Switched voltage

max. 250V AC

Coil power consumption

1.9W

AC contacts rating @R

(at resistive load)

25A / 220V AC

Contact resistance

50mΩ

Leads

6,35x0,8mm connectors

Coil current

158mA
