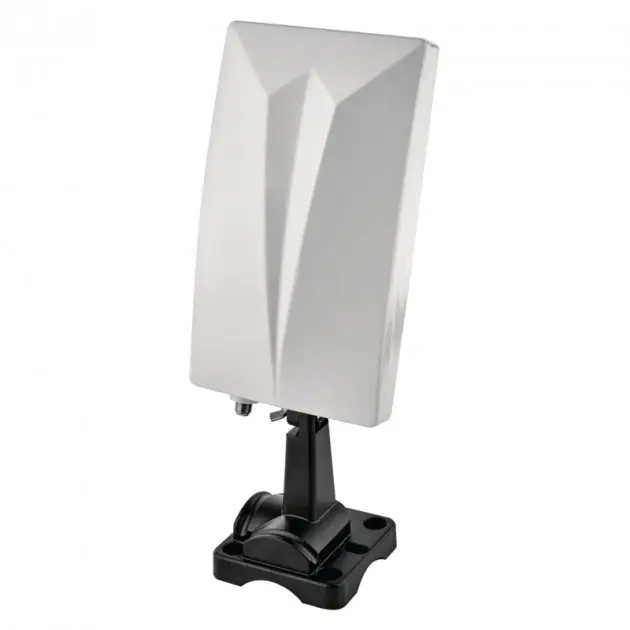

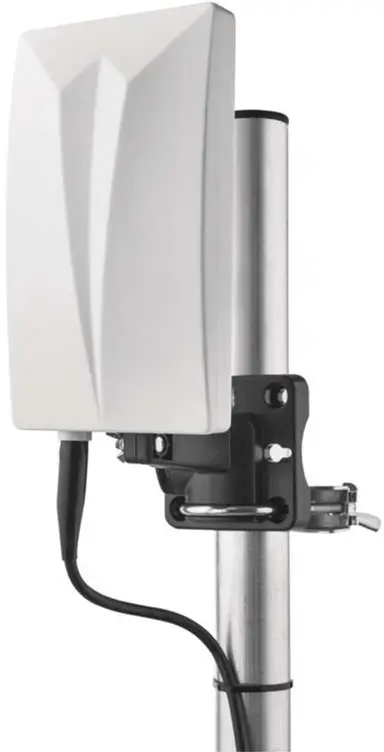

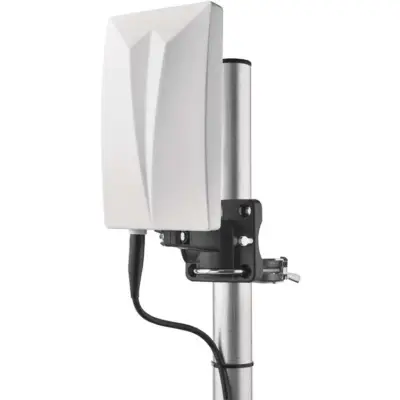

Broadband universal active antenna with high gain for outdoor and indoor use.The ideal helper for FM / DAB / DVB-T / DVB-T2 signal reception. Product advantages The antenna has been developed for undisturbed signal reception not only of the new DVB-T2 signal, the existing DVB-T signal, but also for reception of analog FM radio and digital DAB radio. The EM-711 antenna has compact dimensions and construction made of durable plastic, excellently resistant to UV radiation and weather conditions. The antenna contains an integrated amplifier with a gain of up to 20 dBi and an LTE filter against signal interference from mobile operators. The antenna package includes a universal holder for mounting on a pole in horizontal or vertical polarization. Thanks to the LTE filter, which is integrated in the antenna, reception will not be a problem for you in very problematic reception conditions disturbed by the LTE signal of mobile operators.Modern design and compact dimensions will appeal to everyone. The big advantage is the universal possibility of use.You can use the antenna as an outdoor or indoor.The package includes a bracket for wall installation and an antenna mast, which can also be used as a practical stand for placing the antenna indoors.
FM/DAB/DVB-T/T2 reception
Suitable for receiving Full HD broadcasts yes
Suitable for receiving multiple transmitters yes
180° reception angle
polarization horizontal and vertical
suitable for remote reception yes
LTE filter yes
FM / VHF / VHF / UHF frequency bands
coaxial cable length in the package 5 m
IEC connection type
amplifier in full metal case, noise immunity yes

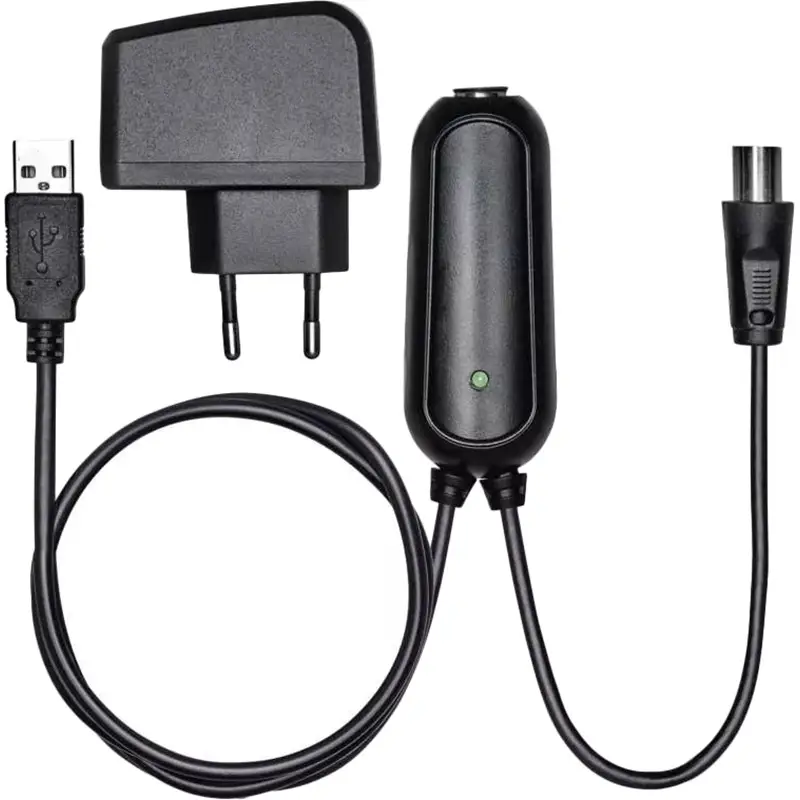

DC USB 5 V / 550 mA power supply (included)
Frequency range 87.5-230 MHz, 470-790 MHz
suitable for caravans, motor homes yes
Can be powered by STB yes
Output HF impedance of 75 ohms
5G filter No
Dimensions 110 × 60 × 190 mm
J0683 Kasutusjuhend | 271.27KB | Download |
