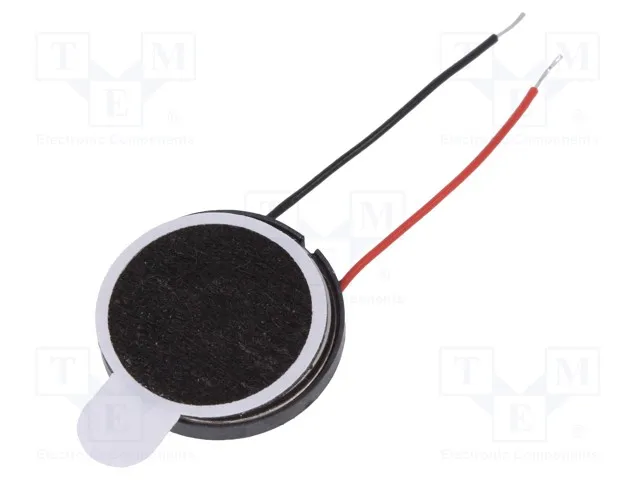

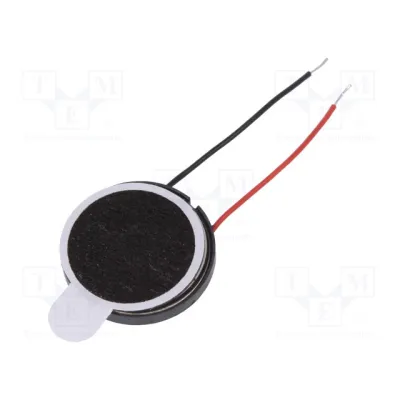

Loudspeaker Mylar with wires 15*3.5mm 8R 0.5W 100..20000Hz

The LD-SP-U15/8A from LOUDITY is a miniature, general-purpose loudspeaker, expertly engineered for a variety of audio applications where a compact and lightweight speaker is paramount. This speaker delivers reliable performance in a small package.

Key Features - Miniature Size: Its compact dimensions (15mm diameter, 3.5mm height) make it ideal for space-constrained applications.

- Mylar Construction: Features a Mylar diaphragm for exceptional sound reproduction.

- Wide Frequency Range: Operates from 100 Hz to 20 kHz, ensuring a broad audio spectrum.

- General Purpose: Suitable for a diverse range of audio applications.

- RoHS Compliant: Meets Restriction of Hazardous Substances standards, demonstrating our commitment to environmental responsibility.

Ideal Applications and Benefits - Small Amplifiers: Perfectly suited for use with small audio amplifiers.

- Portable Equipment: An excellent choice for portable sound recorders and other small portable devices.

- Message Players: Designed for seamless integration into message players.

- Self-Adhesive Mounting: Select versions feature a self-adhesive strip, enabling easy mounting on flat surfaces.

Reliability Through Environmental Testing The LD-SP-U15/8A loudspeaker undergoes rigorous environmental testing to ensure its reliability and consistent performance:
- High Temperature Test: Maintained at +60°C ± 3°C for 96 hours, then allowed to stabilize at normal temperature for 3 hours before inspection.

- Low Temperature Test: Maintained at -30°C ± 3°C for 96 hours, then allowed to stabilize at normal temperature for 3 hours before inspection.

- Vibration Test: Subjected to a 10~55~10Hz sine-wave sweep for 15 minutes at 5G (constant) in X, Y, and Z directions for 2 hours each, totaling 6 hours.

- Drop Test: Free-dropped from a height of 100cm onto a 20mm thick board in X, Y, and Z directions, 1 time each, totaling 6 times.

- Load Test: Subjected to rated power white noise for 96 hours.
