Led controller rgb+cct din 12-24vdc 5in1 ls2s
- 31.00 €
-
- Customer price 29.45 € (-5%)
Log in and get at least a 5% discount
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
Tallinn, Pärnu mnt. 238
Tartu, Lääneringtee 39
Rakvere, Haljala tee 4
Pärnu, Papiniidu 8
Jõhvi, Puru tee 1

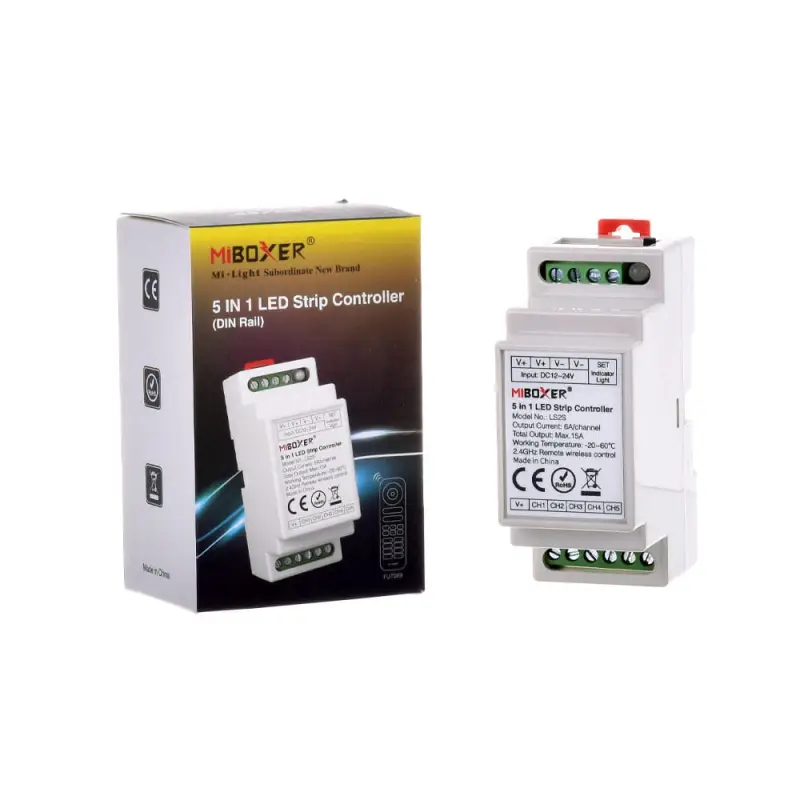

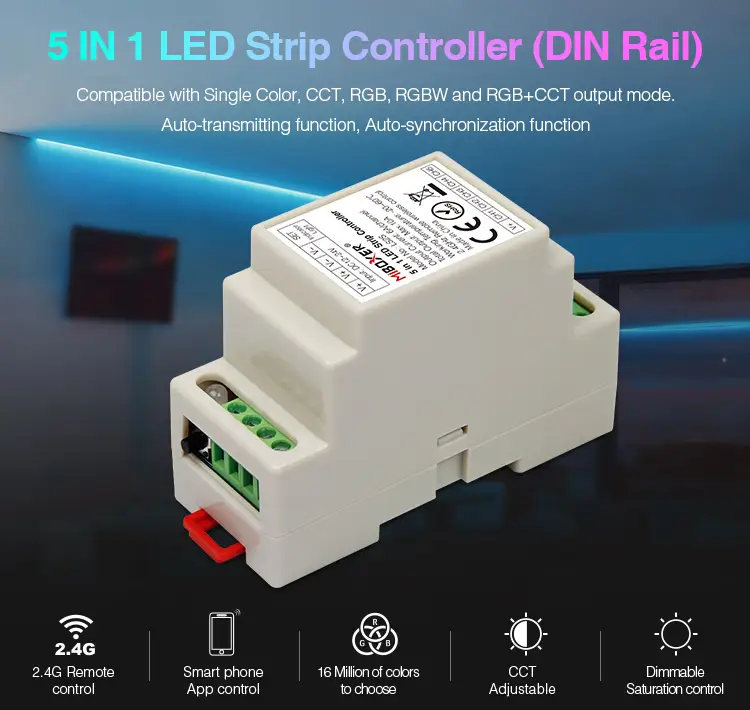

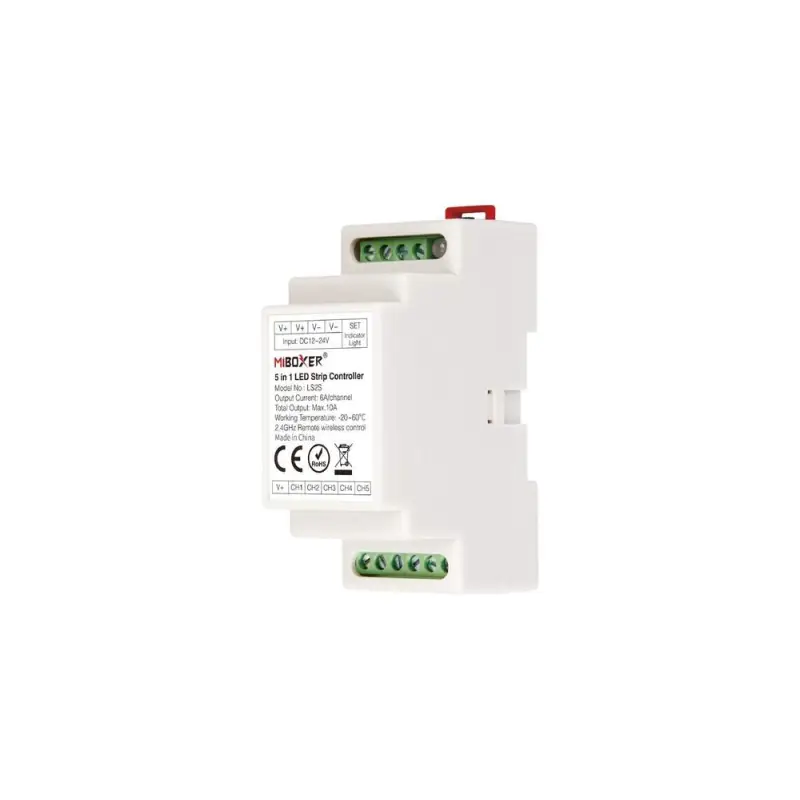

The LS2S MiLight/MiBoxer controller is a universal device designed to work with LED strips. Mounted on a DIN rail. The type of the connected LED strip can be set on the controller (RGB+CCT, RGB+W, RGB, CCT, MONO). The LS2 LED controller allows for smooth adjustment of brightness, light color and white light color temperature. The device can work in the range of 12-24V DC and the maximum output current must not exceed 15A (moc 180W with a 12V installation and 360W with a 24V installation). It can be controlled by a remote control or a smartphone application (the WL-BOX1 Wi-Fi bridge is required). In addition, the controller acts as a repeater, while maintaining a 30m spacing between successive elements, allows for unlimited range.
ETIM CLASS Controller for luminaires
Control distance 30m
Transmission Frequency 2400Mhz
Input voltage 12 - 24V DC
Max. output current 10A
Length 59mm
Width 36mm
Height/depth 92.5mm
Weight 0.084kg
LS2S Kasutusjuhend | 1.32MB | Download |
