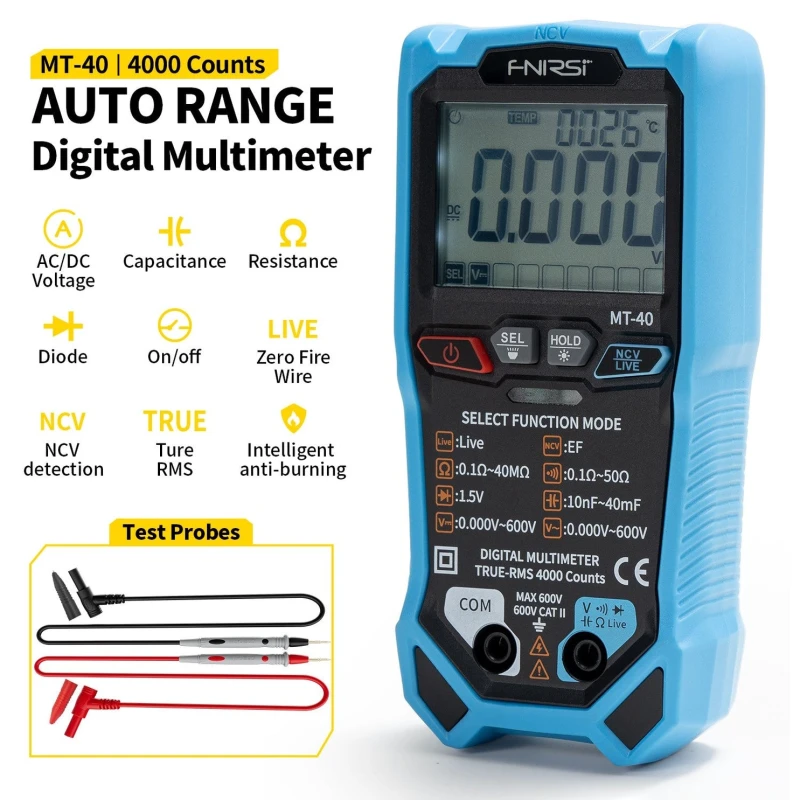

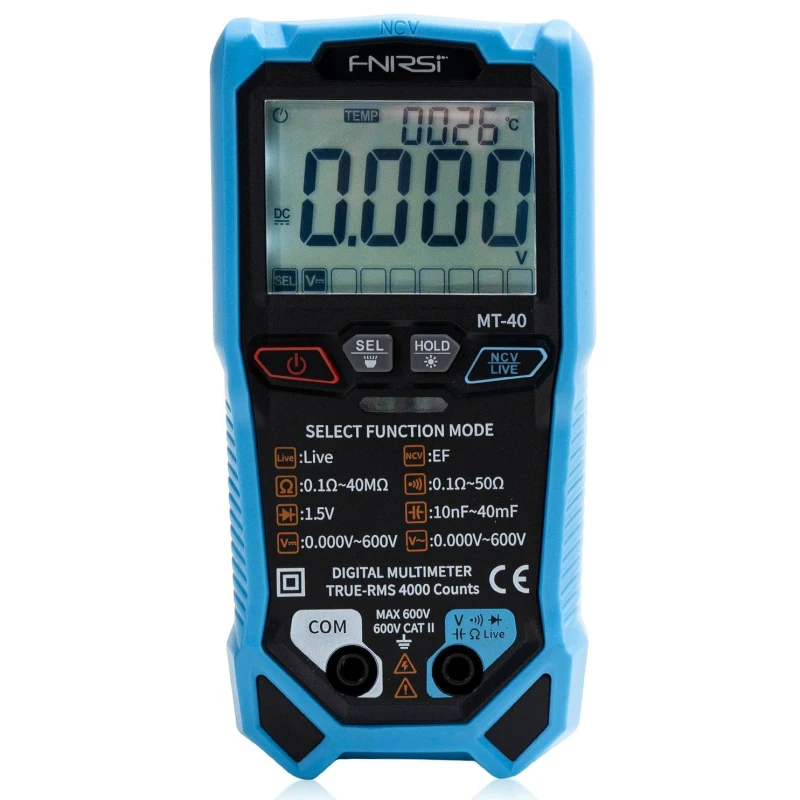

FNIRSI MT-40 Smart Digital Multimeter
The FNIRSI MT-40 is a modern digital multimeter designed for accurate and efficient measurement tasks.
Key Features
- Backlit LCD Display: Provides clear, easy-to-read measurements even in low-light conditions.

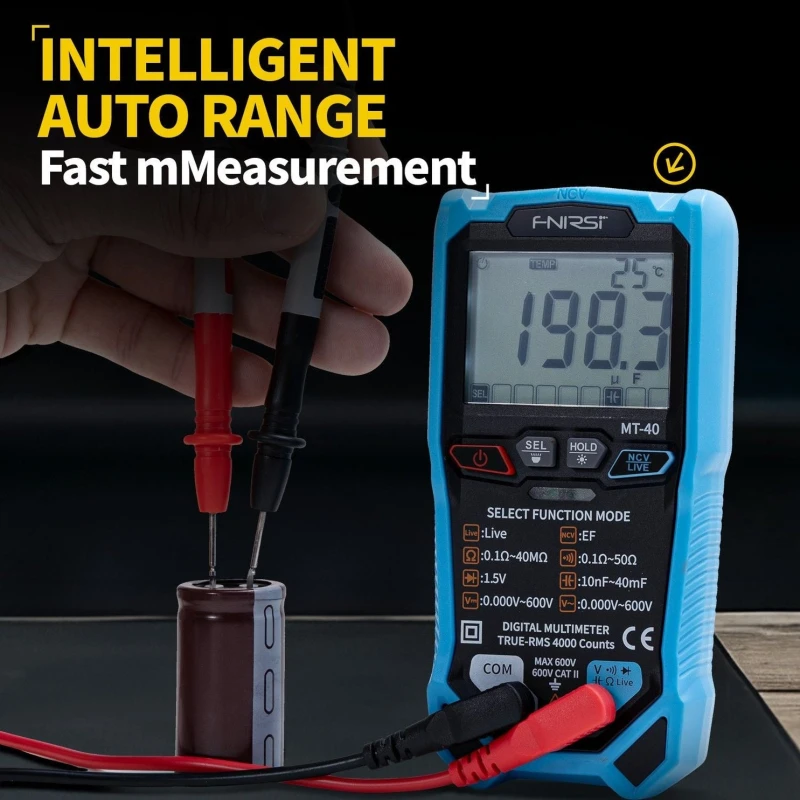

- Intelligent Auto-Ranging: Automatically selects the correct range, eliminating manual adjustments for precise results.
- Fast Sampling Rate: Features an advanced chip with an ultra-fast 3 times per second sampling rate for real-time data analysis.
- Comprehensive Measurement Capabilities: Supports True RMS, capacitance, resistance, diode testing, and non-contact voltage (NCV) detection.

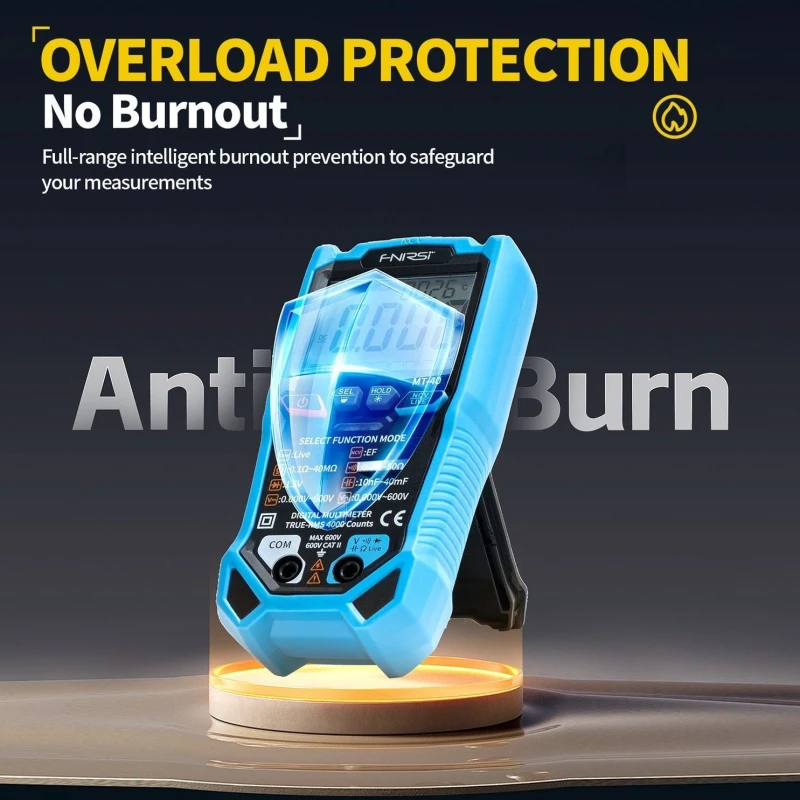

- Safety Features: Includes overload protection and intelligent anti-burnout functions to ensure safe operation and device longevity.

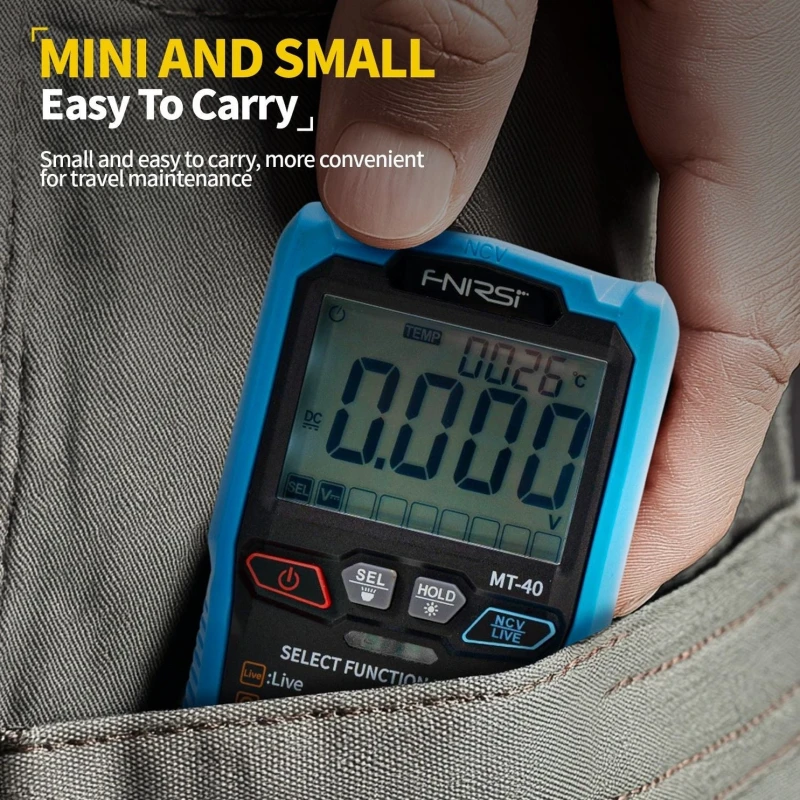

- Compact & Durable Design: Built with a compact, lightweight form factor and includes a comfortable silicone protective case.
- Additional Functions: Offers data hold, a built-in flashlight, and automatic shutdown after 15 minutes of inactivity to conserve battery life.
Applications
Its robust design and comprehensive features make it an ideal tool for professionals working in field conditions.
AC Voltage (Manual function): 0.000V-600V
AUTO function/Manual conversion function: Yes

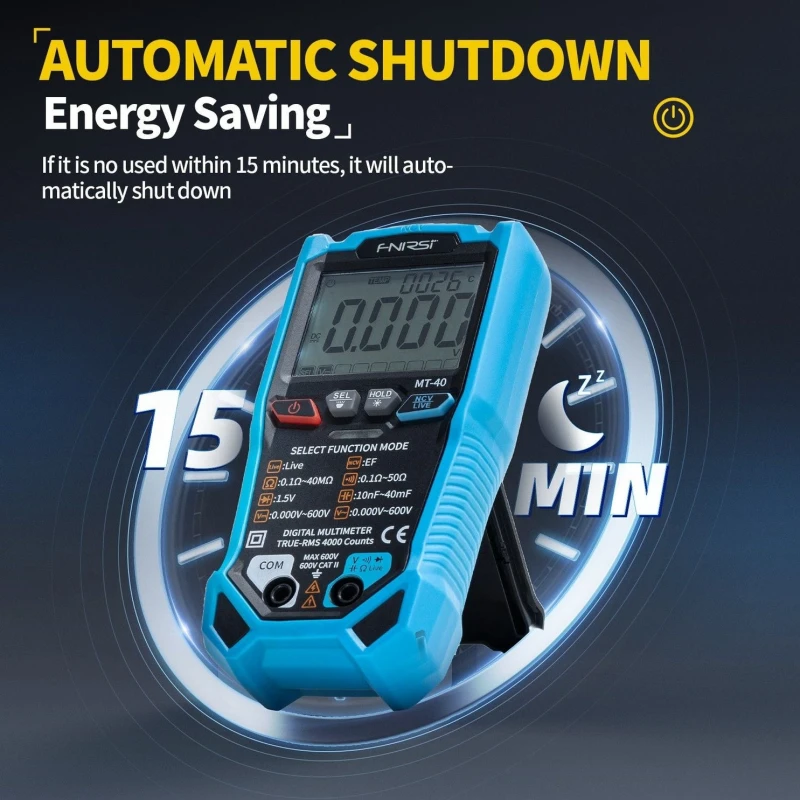

Auto Power Off: Yes, 15 minutes
Back Light: Yes
Battery Type: 2x1.5V AAA (Not included)
Capacitance: 4nF / 40nF / 400nF / 4μF / 40μF / 400μF / 4mF / 40mF
Continuity Buzzer: Yes
Current Measurement: Not supported
DC Voltage (AUTO function): 0.800V-600V
DC Voltage (Manual function): 0.000V-600V
Data Hold: Yes
Dimension: 140mm*70mm*31mm
Diode Test: Yes
Display: 4000-count high-definition backlit LCD

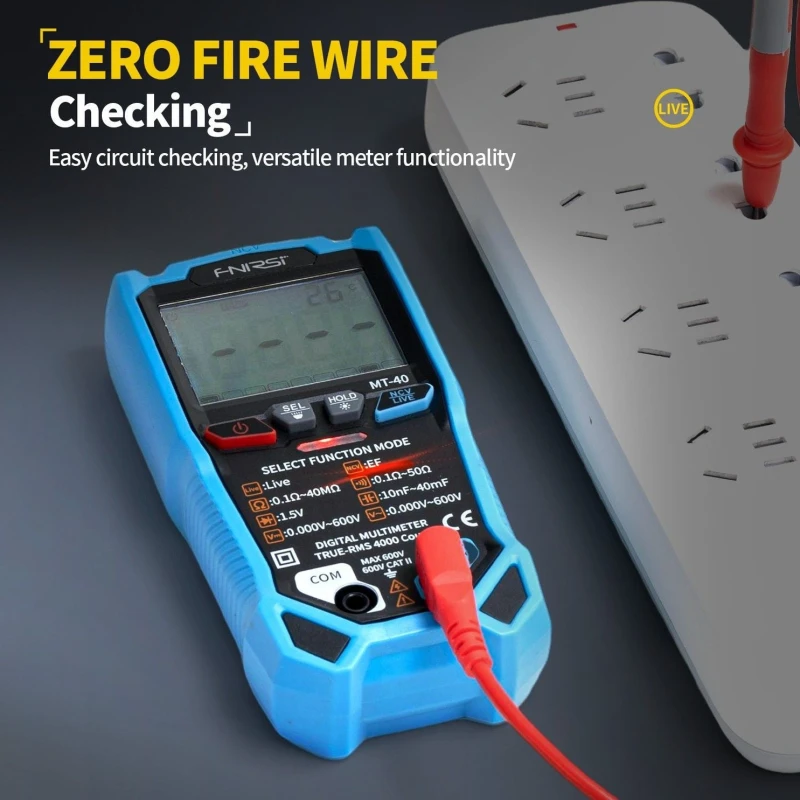

Fire Line Judgment (Live): Yes
Flashlight Lighting: Yes
Input Impedance: 10 MΩ
Intelligent Anti-burning Protection: Yes
Maximum Input Voltage: 600V DC or AC
Measuring Rate: 3 times/s

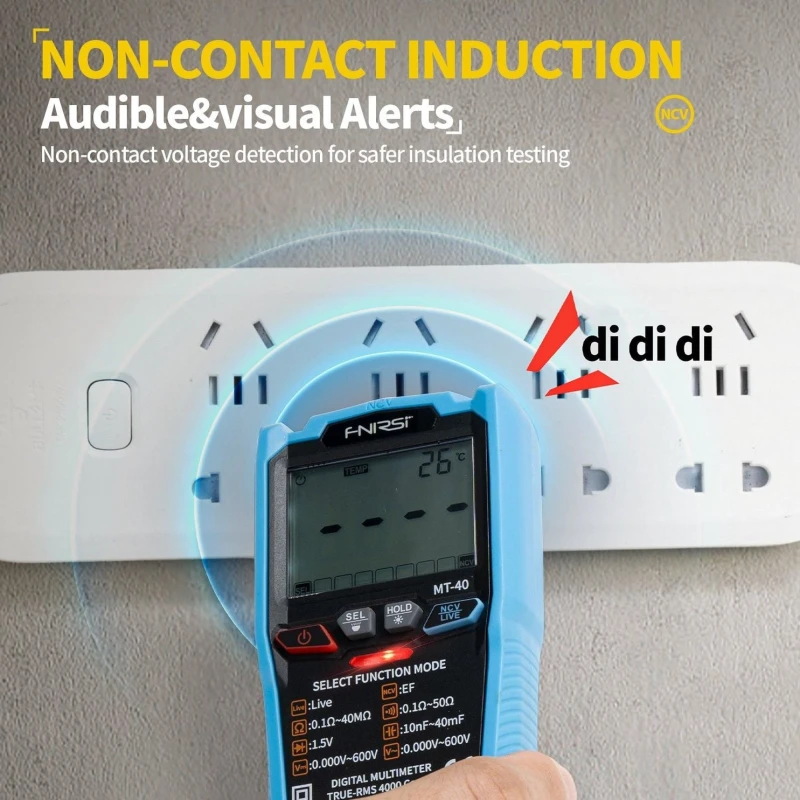

Non-contact Voltage Detection (NCV): Yes
Operating Temperature: 0-40℃
Protective Silicone Case: Included
Resistance: 400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ
Storage Temperature: -10°C to 50°C
True RMS: Yes
Undervoltage Indicator: Yes
Weight: Approximately 150 grams (without batteries)
