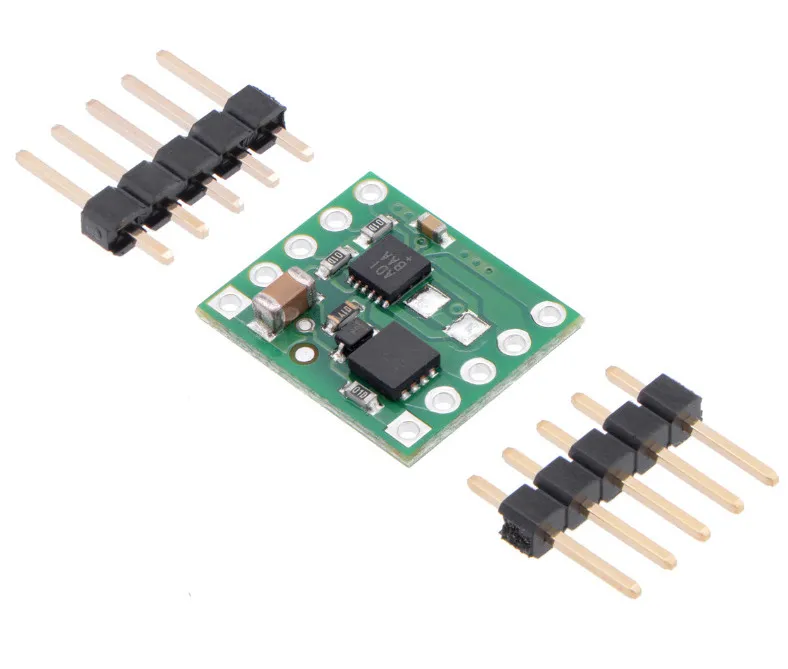

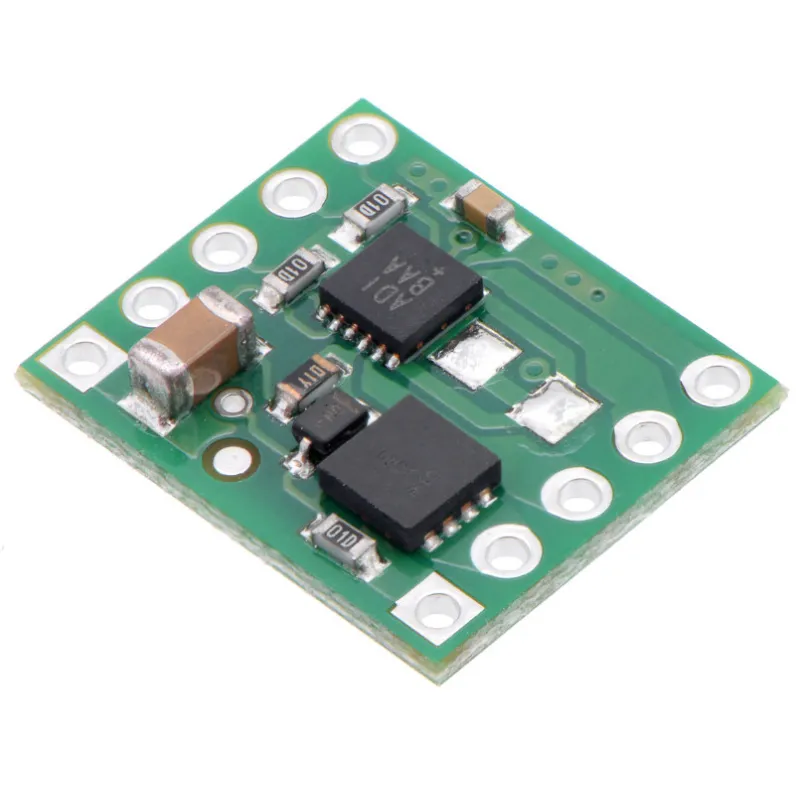

MAX14870 motor driver 1.7A 4.5-36V

MAX14870 motor driver 1.7A 4.5-36V

MAX14870 motor driver 1.7A 4.5-36V

MAX14870 motor driver 1.7A 4.5-36V

MAX14870 motor driver 1.7A 4.5-36V

MAX14870 motor driver 1.7A 4.5-36V

Image is for illustrative purposes only

MAX14870 motor driver 1.7A 4.5-36V

SKU: POLOLU-2961

The product is no longer available. Product is displayed only for informational purposes.

Description
Specifications

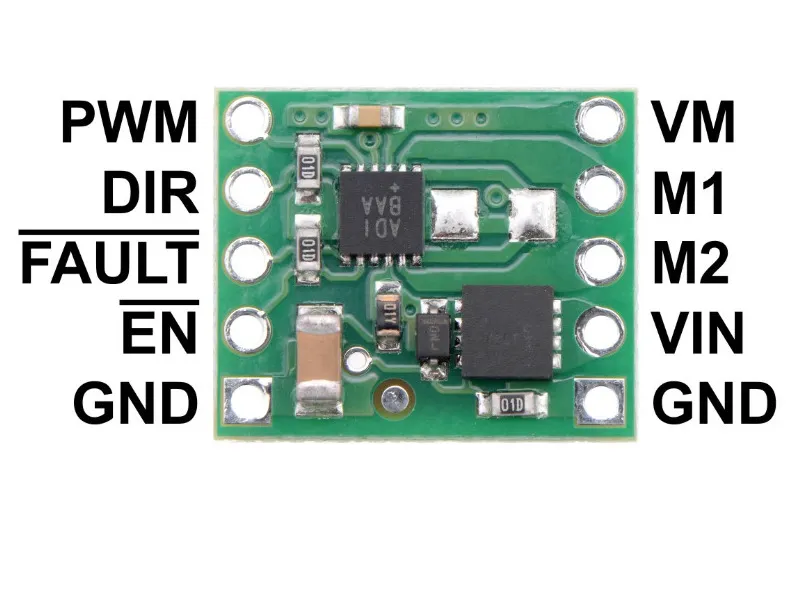

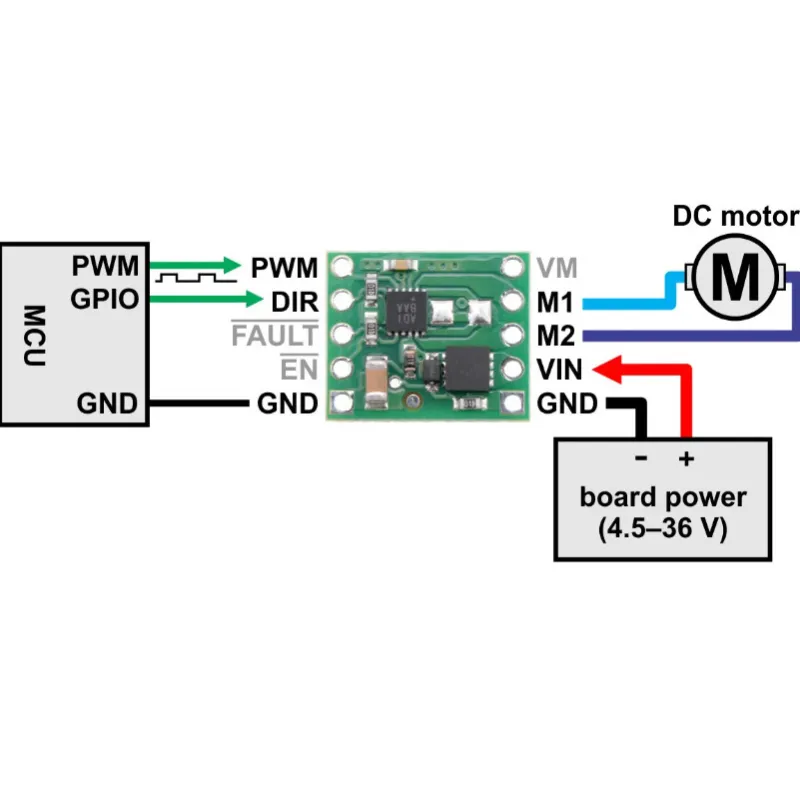

Maxim's MAX14870 m compact circuit breaker for motor driver offers a wide operating voltage range from 4.5 V to 36 V and can supply a continuous 1.7 A (2.5 A peak) to a single DC motor. It has a simple two-contact speed/direction interface and built-in protection against reverse voltage, undervoltage, overcurrent and over-temperature.

Motor driver: MAX14870
Motor channels: 1
Minimum operating voltage: 4.5 V
Maximum operating voltage: 36 V
Continuous output current per channel: 1.7 A2
Peak output current per channel: 2.5 A
Maximum PWM frequency: 50 kHz
Reverse voltage protection?: Yes
