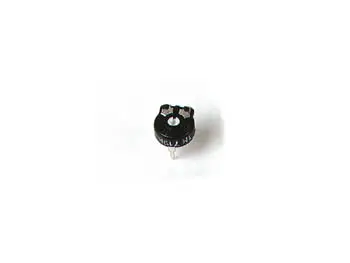

PIHER TRIMMER 2M5 (SMALL - HOR - FOR SPINDLE)
SKU:M002SHS
Image is for illustrative purposes only

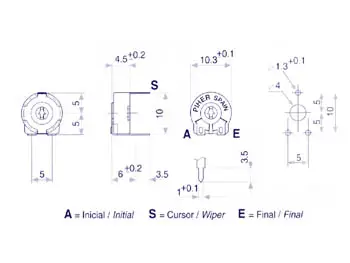

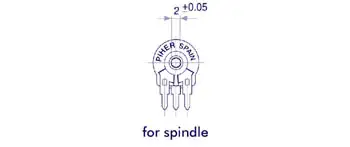

horizontal mountingfor spindlerange: 100ohm - 4.7Mohm (E3 series)
Primary colours: Black
Additional colours: Grey
Additional detailed colours: Metal
Diameter unit: 10.3 mm
Height unit: 10 mm
Weight unit: 0.7 g
Material: PVC (polyvinyl chloride)
Size guide: Small
Maximum resistance: 2500 kohm
Product series: E3
Mounting type: Horizontal
Nominal power at 40 °C: 0.15 W
Number of standard lifecycles: 500
Operating temperature range: -25-70 °C
Maximum operating voltage VDC: 200 V
Adjustable with: Spindle
Electrical rotation angle: 200-240 °
Mechanical rotation angle: 230-240 °
