120 W SINGLE OUTPUT INDUSTRIAL DIN RAIL POWER SUPPLY 24 V 5 A

SKU:NDR-120-24
120 W SINGLE OUTPUT INDUSTRIAL DIN RAIL POWER SUPPLY 24 V 5 A

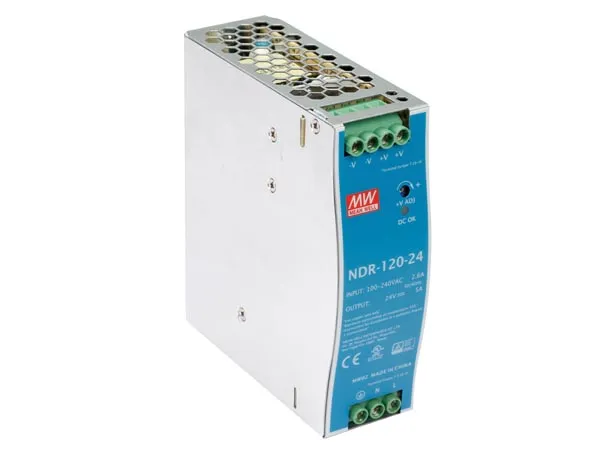

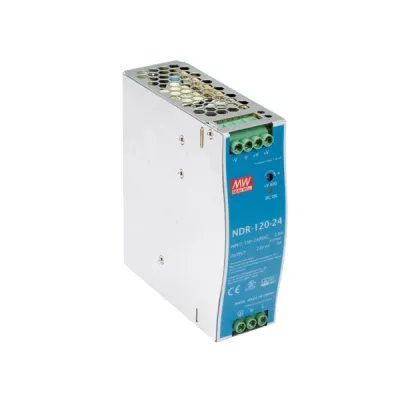

Image is for illustrative purposes only

Features:
    with universal AC input / full range
    protection: short circuit / overload / over voltage / over temperature
    can be installed on DIN rail TS-35/7.5 or TS-35/15
    industrial control equipment (UL 508) approved
    EN61000-6-2(EN50082-2) industrial immunity level
    100% full load burn-in test
    [b]for professional use only[/b]
    This device must be installed by a qualified person.
Specifications:
    output:
      DC voltage: 24 V
      rated current: 5 A
      current range: 0 - 5 A
      rated power: 120 W
      ripple and noise (max.): 120 mVp-p
      voltage adj. range: 24 - 28 V
      voltage tolerance: +/- 1.0%
      line regulation: +/- 0.5%
      load regulation: +/- 1.0%
      setup, rise time:
        1200 ms, 60 ms / 230 VAC
        full load: 2500 ms, 60 ms / 115 VAC
      hold up time:
        16 ms / 230 VAC
        full load: 10 ms / 115 VAC
      input:
        voltage range:
          90-264 VAC
          127-370 VDC
          DC input operation possible by connecting AC/L(+), AC/N(-)
        frequency range: 47 - 63 Hz
        efficiency : 88%
        AC current:
          2.25 A / 115 VAC
          1.3 A / 230 VAC
        inrush current:
          20 A / 115 VAC
          35 A / 230 VAC
        leakage cureent: <1 mA / 240 VAC
      protection:
        overload:
          105 - 130% rated output power
          constant current limiting, recovers automatically after fault condition is removed
        over voltage:
          29-33 V
          shut down o/p voltage, re-power on to recover
        over temperature: shut down o/p voltage, re-power on to recover
      environment:
        working temperature: -20 to +70 °C
        working humidity: 20-95% RH non-condensing
        storage temperature: -40 to +85 °C
        storage humidity: 10-95% RH
        temp. coefficient: +/- 0.03%/°C (0-50°C)
        vibration:
          component: 10-500 Hz, 2G 10 min. / 1 cycle, 60 min. each along X, Y, Z axes
          mounting: compliance to IEC60068-2-6
        safety and EMC:
          safety standards: UL508, TUV EN60950-1 approved
          withstand voltage:
            I/P-O/P: 3000 VAC
            I/P-FG: 2000 VAC
            O/P-FG: 500 VAC
          isolation resistance: I/P-O/P, I/P-FG, O/P-FG:>100M Ohm / 500 VDC / 25 °C / 70% RH
          EMC emissions: compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3
          EMC immunity: compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A
        MTBF: 456.300 hrs min. MIL-HDBK-217F (25 °C)
        dimensions (W x H x D): 40 x 125.2 x 113.5 mm
powersupplya4v04.pdf
Download
ndr-120.pdf
Download
Regular price
55.00 €
Customer price52.25 €-5%
Orderable, delivery time 15. October 2025
