BRIDGE RECTIFIER 50V-4A (RS401/L)
SKU:RS401/L
Image is for illustrative purposes only
Specifications
Type number: RS401/L

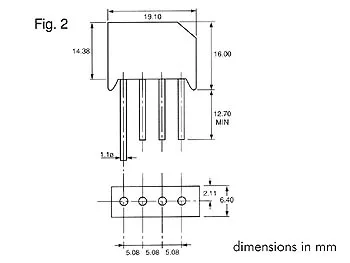

Ifsm (peak current): 200AVf (forward voltage): 1V max. Vrrm (reverse voltage): 50V max. Ir (reverse current): 10µA Package: fig. 2 Io (rectified current): 4A max.
Type number: RS401/L
Ifsm (peak current): 200AVf (forward voltage): 1V max. Vrrm (reverse voltage): 50V max. Ir (reverse current): 10µA Package: fig. 2 Io (rectified current): 4A max.
