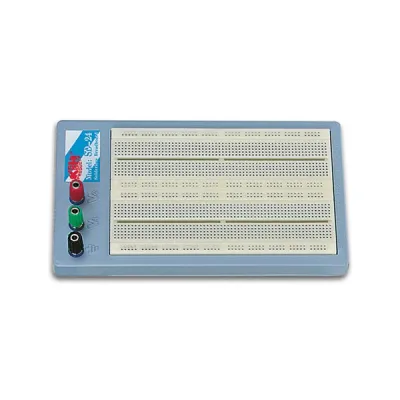

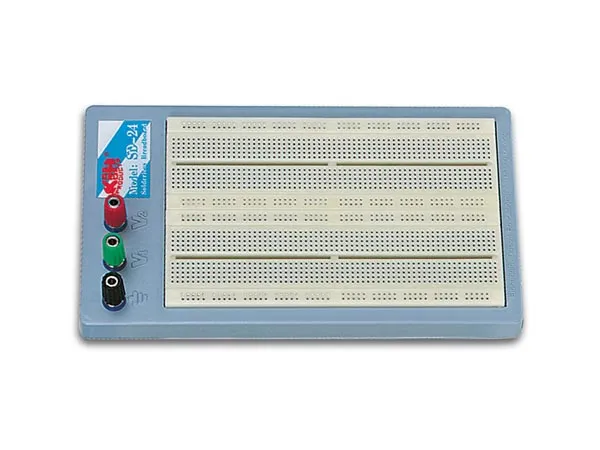

HIGH-Q BREADBOARD - 1680 HOLES
SKU:SD24N
Image is for illustrative purposes only
Features:
- base socket (see figure): twin columns of 5 x 64 terminals are separated by a 7.62mm centre channel
- bus strip (see figure): 4 buses of 25 connected terminals are arranged in 4 rows
- material:
- external body is made of ABS
- the internal interconnected clips consist of a nickel and silver alloy
- base socket: 2
- bus strip: 4
- tie points: 1680
- 14-pins IC capacity: 18
- binding post: 3
- dimensions: 220 x 127 x 18.5 mm
- weight: 292 g
- jumper wire set: [product name=WJW70]WJW70[/product] (not included)
