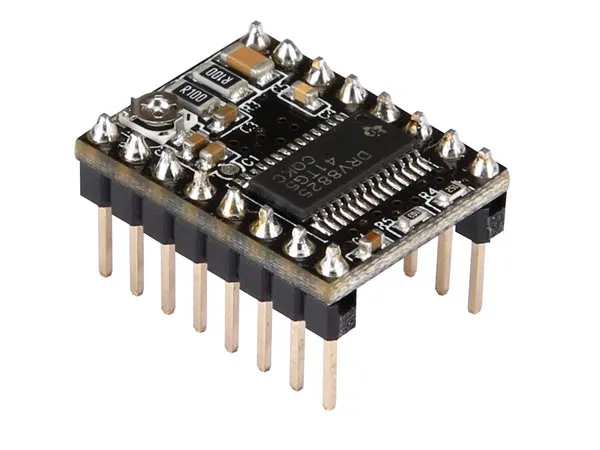

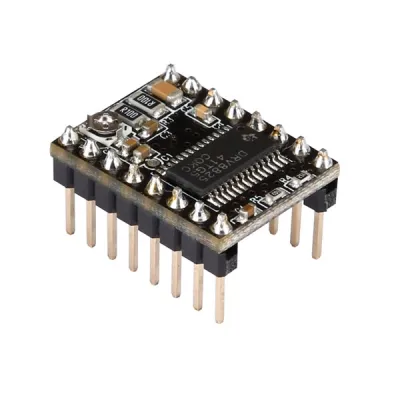

STEPPER DRIVER BOARD

Breakout board for TI DRV8825 microstepping bipolar stepper motor driver with adjustable current limiting, over-current and over-temperature protection and 6 microstep resolutions (down to 1/32-step). It allows you to control a bipolar stepper motor in a simple way.
Features:

simple step and direction control interface
six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
current adjust trimmer
can interface directly with 3.3 V and 5 V systems
over-temperature thermal shutdown, over-current shutdown and under-voltage lockout
short-to-ground and shorted-load protection

Specifications:

minimum operating voltage: 8.2 V
maximum operating voltage: 45 V
continuous current per phase: 1.5 A
maximum current per phase: 2.2 A (with cooling)
minimum logic voltage: 2.5 V
maximum logic voltage: 5.25 V

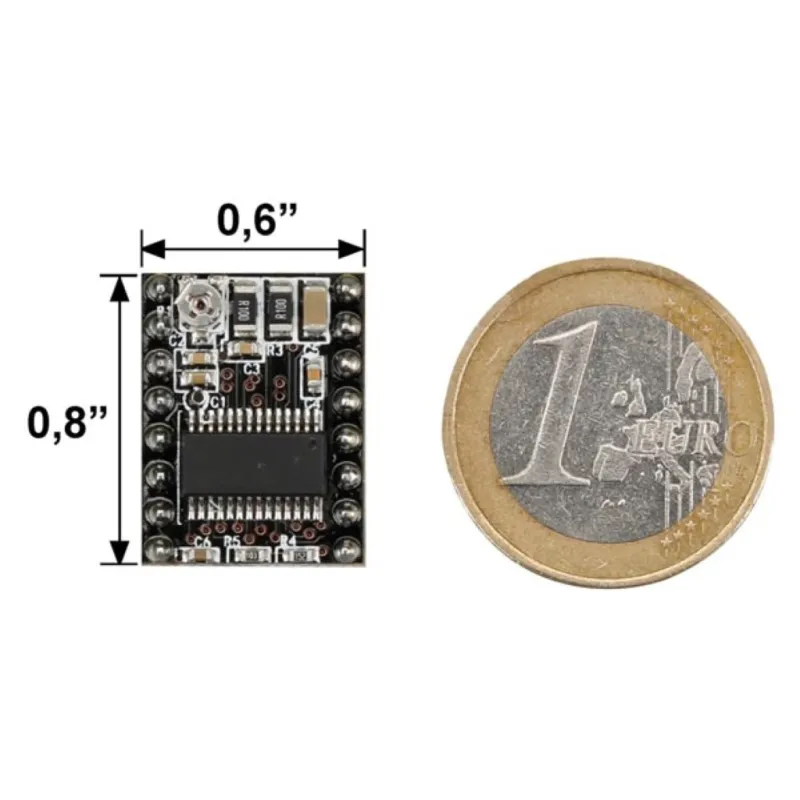

dimensions: 20 x 15 mm (0.8" x 0.6 ")
