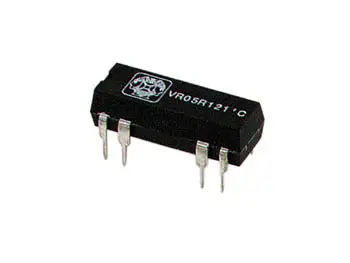

DIL relay: 0.5A/10W max. 1 x on 12Vdc
SKU:VR05R121A
Image is for illustrative purposes only
for cost-effective miniature switching solutionsstate-of-the-art capsule designsmoulded construction for compatibility with automatic board processingepoxy-moulded dual-in-line packagecompletely washable
Primary colours: Black

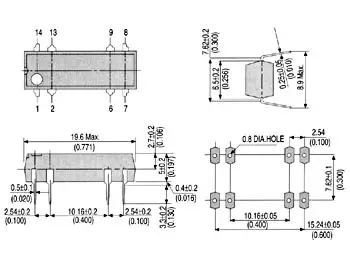

Depth unit: 8.9 mm
Height unit: 8.8 mm
Width unit: 19.6 mm
Weight unit: 1.8 g
Internal contact material: Epoxy coating
Dielectric strength voltage rating VDC: 250 V
Coil voltage rating VDC: 12 V
Maximum contact voltage rating VDC: 30 V
Coil resistance: 1000 ohm
Number of contacts: 1
Operating temperature range: -40-80 °C

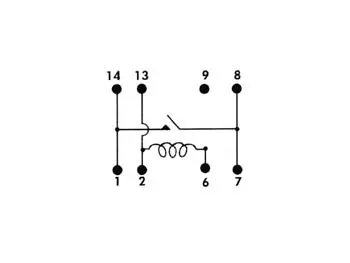

Contact type: NO
PCB mounting type: Through-hole mounting (THM)
Power consumption: 144 mW
