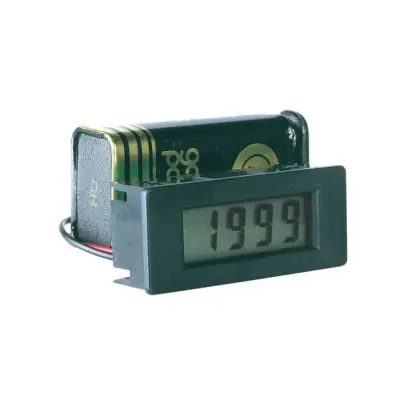

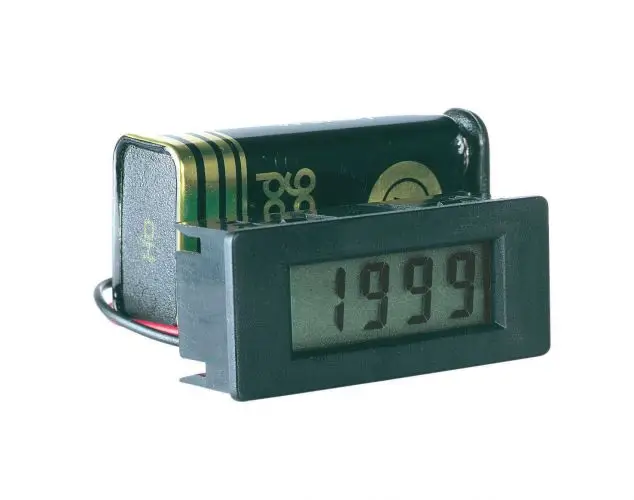

Volt & ammeter, LCD display 8mm hight of digits
SKU:PTLDP-335-ET
Manufacturer:PeakTech
Image is for illustrative purposes only
Practical ` built-in module` as ` voltmeter` with freely definable measuring range from ` 0 to 500 V`.
` Current measurements` from ` 0 to 2A` can be carried out via a ` shunt`.
With the ` snap-in frame`, this inexpensive module can be integrated into any ` front panel` of your own construction.
` Current measurements` from ` 0 to 2A` can be carried out via a ` shunt`.
With the ` snap-in frame`, this inexpensive module can be integrated into any ` front panel` of your own construction.
Backlight:: □
Digital counts:: 2.000
Display Type:: LCD
V DC max.:: 500V
mA DC max.:: 2000mA
mV DC max.:: 200 mV
µA DC max.:: 200 µA
Applyable as Volt / Ammeter
Voltmeter: 0 ... 200mV, 2V, 20V, 200V or 500 V
Ammeter: 0 ... 200µA, 2mA, 20mA, 200mA and 2A
Freely selectable decimal place via solder joint
Version without backlight
Operating voltage via 9V battery
Digital counts:: 2.000
Display Type:: LCD
V DC max.:: 500V
mA DC max.:: 2000mA
mV DC max.:: 200 mV
µA DC max.:: 200 µA
Applyable as Volt / Ammeter
Voltmeter: 0 ... 200mV, 2V, 20V, 200V or 500 V
Ammeter: 0 ... 200µA, 2mA, 20mA, 200mA and 2A
Freely selectable decimal place via solder joint
Version without backlight
Operating voltage via 9V battery
