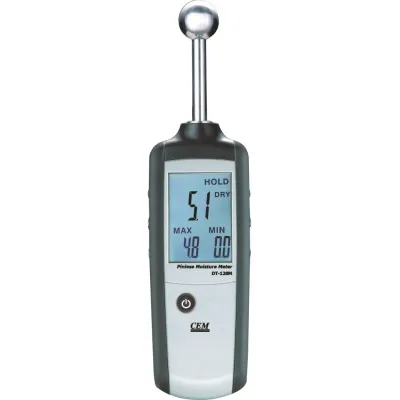

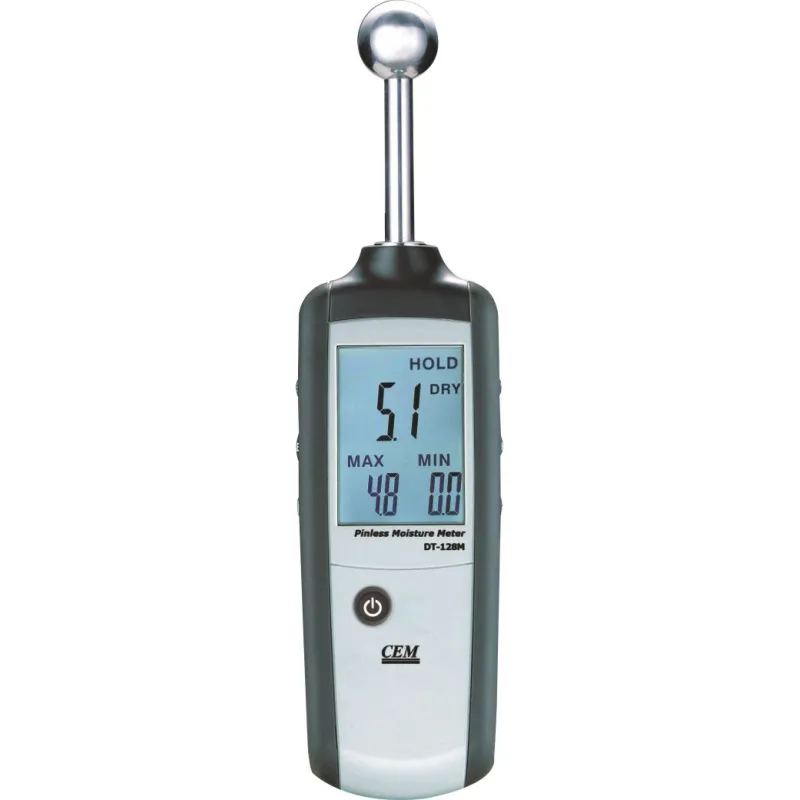

Pinless material moisture meter
SKU:CMDT128M
Image is for illustrative purposes only
• Pinless moisture meter
Non-invasive moisture content measurements in wood/building materials
• meas. range: 0...100 ( resolution: 0,1 )
• alarm levels: DRY, RISK, WET
• auto power off: 30s
• measuring depth: 2-4cm
• backlight, MAX, MIN, HOLD
• power: 3 x AAA batteries
• operating temperature: -4...+43 °C
• size/weight: 235 x 63 x 28 mm / 218g
This is the NON-Contact Moisture
Meter, it is an electronic dampness
indicator with a measuring process
working on the principle of high
frequency. The instrument is used for
non-destructively tracing of dampness
in building materials of all kinds as
well as for detecting damp distribution
in walls, ceilings and floors. It is
particularly suitable for pre-testing
the readiness of building materials for
covering prior to CM measurement.
Non-invasive moisture content measurements in wood/building materials
• meas. range: 0...100 ( resolution: 0,1 )
• alarm levels: DRY, RISK, WET
• auto power off: 30s
• measuring depth: 2-4cm
• backlight, MAX, MIN, HOLD
• power: 3 x AAA batteries
• operating temperature: -4...+43 °C
• size/weight: 235 x 63 x 28 mm / 218g
This is the NON-Contact Moisture
Meter, it is an electronic dampness
indicator with a measuring process
working on the principle of high
frequency. The instrument is used for
non-destructively tracing of dampness
in building materials of all kinds as
well as for detecting damp distribution
in walls, ceilings and floors. It is
particularly suitable for pre-testing
the readiness of building materials for
covering prior to CM measurement.
Type of substrate | The value on the display | Value of relative humidity [%] * | Degree of moisture |
gypsum | 0 ... 35 | 0 ... 0.3 | dry |
36 ... 60 | 0.3... 1.6 | humid | |
61 ... 100 | 1.6 ... 3 | wet | |
cement | 0 ... 25 | 0 ... 1 | very dry |
26 ... 50 | 1 ... 2 | dry | |
51 ... 75 | 2 ... 3.3 | humid | |
76 ... 100 | 3.3 ... 4.5 | wet |
