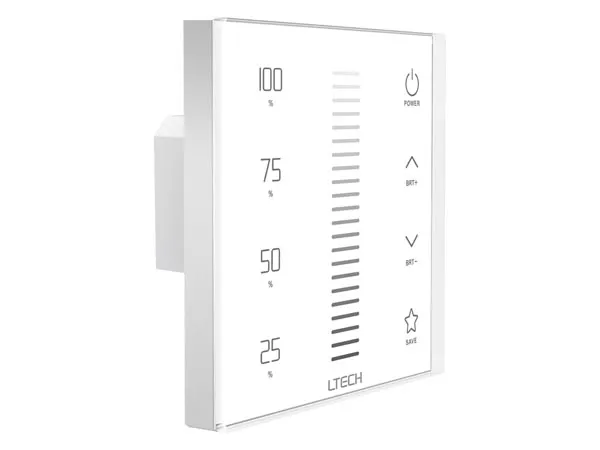

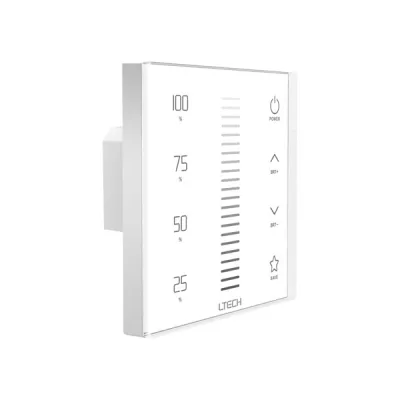

1-channel LED touch panel dimmer - DMX / RF
SKU:CHLSC30TX
Image is for illustrative purposes only

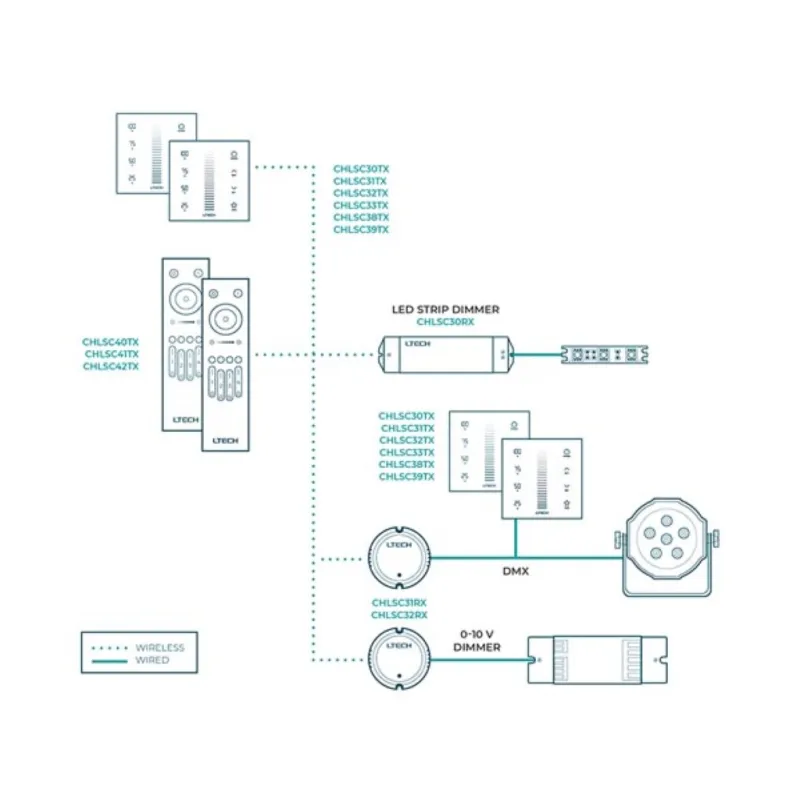

This multi-zone system allows to control devices both wirelessly and via the DMX protocol.
You can create up to 4 areas that can be controlled separately.
Several receivers are available that allow DMX, 0-10V or LED strip dimming (PWM).
You can control the system using the RF design remote control.
Unlike a classic remote control, you don't need to point an RF remote control towards the receiver or the flush mount glass panels.
With these glass panels, you can transform your classic lighting installation into a modern LED strip installation without having to change cables.
You can create up to 4 areas that can be controlled separately.
Several receivers are available that allow DMX, 0-10V or LED strip dimming (PWM).
You can control the system using the RF design remote control.
Unlike a classic remote control, you don't need to point an RF remote control towards the receiver or the flush mount glass panels.
With these glass panels, you can transform your classic lighting installation into a modern LED strip installation without having to change cables.
- 2 operation modes:
- DMX controller
- wireless transmitter for multi-zone system (compatible controllers are listed as options below)
- wireless setup:
- can control 1 zone in the wireless multi-zone setup
- you can connect an unlimited number of receivers to a single touch panel
- key functions:
- ON/OFF
- brightness touch slider
- brightness +/-
- scene mode
Instruction manual languages: English
Primary colours: Multicolour
Depth unit: 36 mm
Height unit: 86 mm
Width unit: 86 mm
Weight unit: 240 g
Material: Glass
Additional material: PC (polycarbonate)
Light colour range led: Single colour
Mounting type: Built-in
Number of wireless setup zones: 1
Output protocols type: Manual control
Operation mode: DMX, RF, Wireless
Output zones type: Single zone
IP rating: IP20
Operating temperature range: -20-55 °C
Usage location: Indoor only
Input voltage rating VAC range: 100-240 V
Primary colours: Multicolour
Depth unit: 36 mm
Height unit: 86 mm
Width unit: 86 mm
Weight unit: 240 g
Material: Glass
Additional material: PC (polycarbonate)
Light colour range led: Single colour
Mounting type: Built-in
Number of wireless setup zones: 1
Output protocols type: Manual control
Operation mode: DMX, RF, Wireless
Output zones type: Single zone
IP rating: IP20
Operating temperature range: -20-55 °C
Usage location: Indoor only
Input voltage rating VAC range: 100-240 V
-
CHLSC1498.00 €Customer price93.10 €-5% -
CHLSC16131.00 €Customer price124.45 €-5% -
CHLSC30RX117.00 €Customer price111.15 €-5%
