Constant voltage LED power supply - 120 W 24 V 5 A TRIAC DIMMING
SKU:GP-TH120N-24V

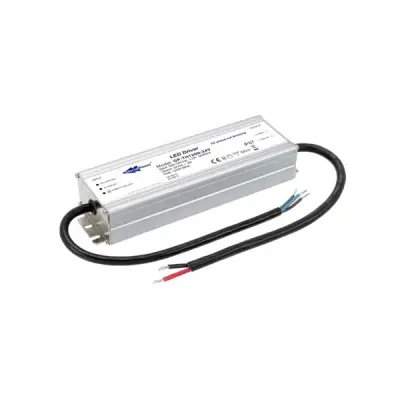

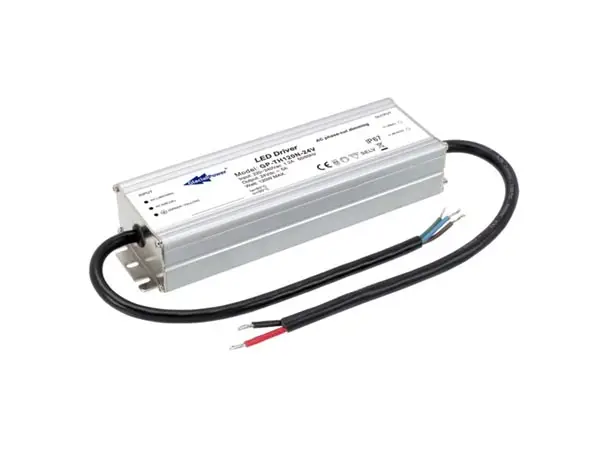

Image is for illustrative purposes only
AC phase-cut dimming input range: 205-256 V~ constant voltage design work with leading edge and trailing edge TRIAC dimmers fully potted suitable for dry and damp location applications.
Protections: over current / short circuit / over voltage / over temperature IP67 design for indoor or outdoor installations class I power unit, with FG suitable for 24 V LED strip appliances.
3 years warranty
Protections: over current / short circuit / over voltage / over temperature IP67 design for indoor or outdoor installations class I power unit, with FG suitable for 24 V LED strip appliances.
3 years warranty
Primary colours: Grey
Primary detailed colours: Silver
Additional colours: Black, Grey
Depth unit: 222 mm
Height unit: 39 mm
Width unit: 68 mm
Weight unit: 1027 g
Material: ABS
Wire length: 26 cm
Number of outputs: 1
Housing type: Enclosed
Output power rating: 120 W
Output current rating: 5 A
Output efficiency: 84 %
Mounting type: Screw mounting
Series LED driver: GP
Dimming type: Triac dimming
IP rating: IP67
Dimming range: 1-100 %
Output voltage rating VDC: 24 V
Input voltage rating VAC range: 205-256 V
Input current rating: 1.2 A
Technology type: Constant voltage mode
Primary detailed colours: Silver
Additional colours: Black, Grey
Depth unit: 222 mm
Height unit: 39 mm
Width unit: 68 mm
Weight unit: 1027 g
Material: ABS
Wire length: 26 cm
Number of outputs: 1
Housing type: Enclosed
Output power rating: 120 W
Output current rating: 5 A
Output efficiency: 84 %
Mounting type: Screw mounting
Series LED driver: GP
Dimming type: Triac dimming
IP rating: IP67
Dimming range: 1-100 %
Output voltage rating VDC: 24 V
Input voltage rating VAC range: 205-256 V
Input current rating: 1.2 A
Technology type: Constant voltage mode
-
