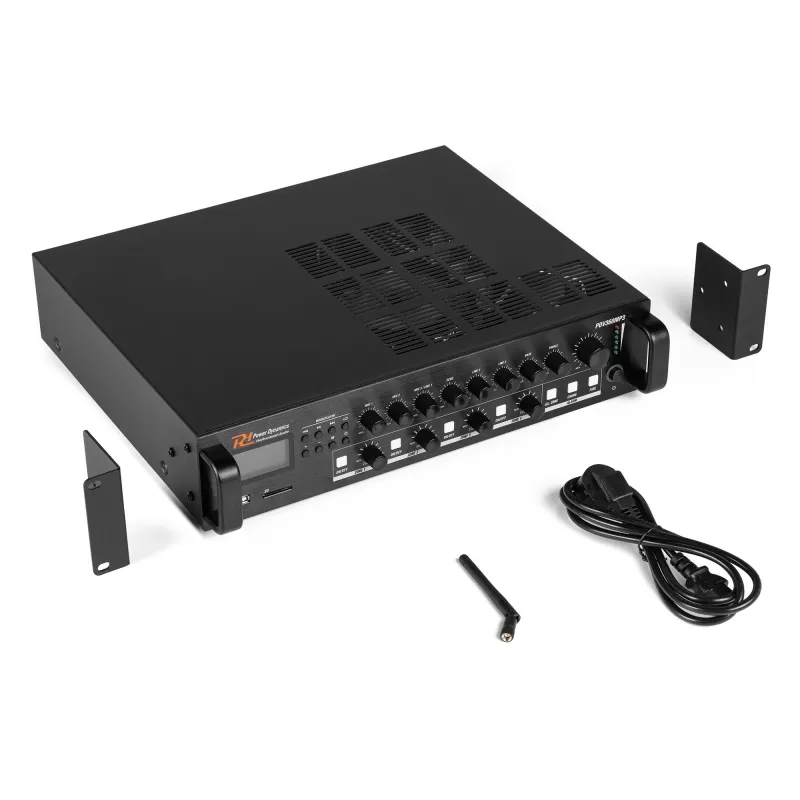

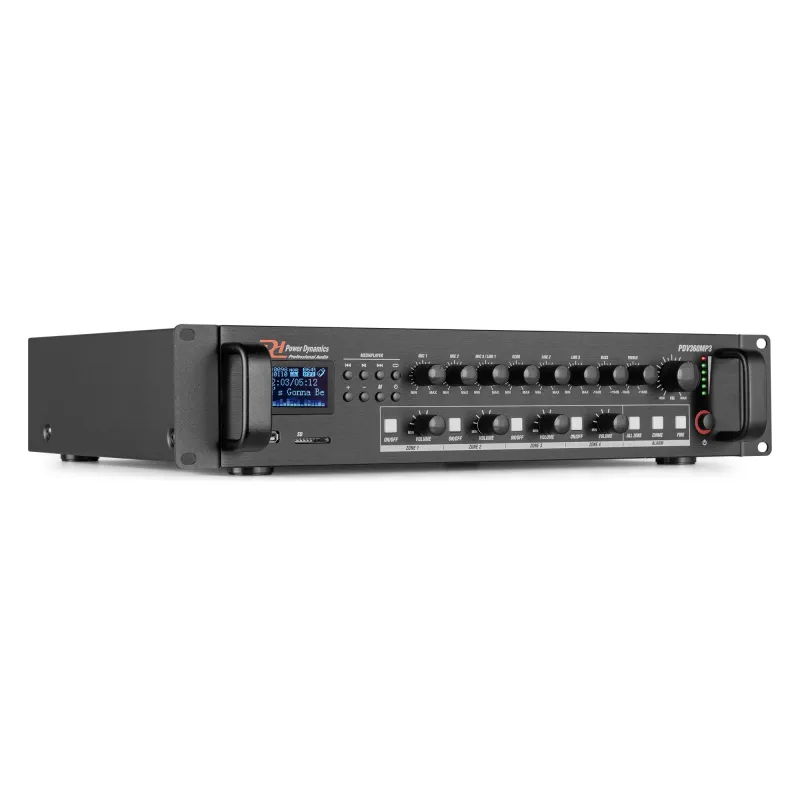

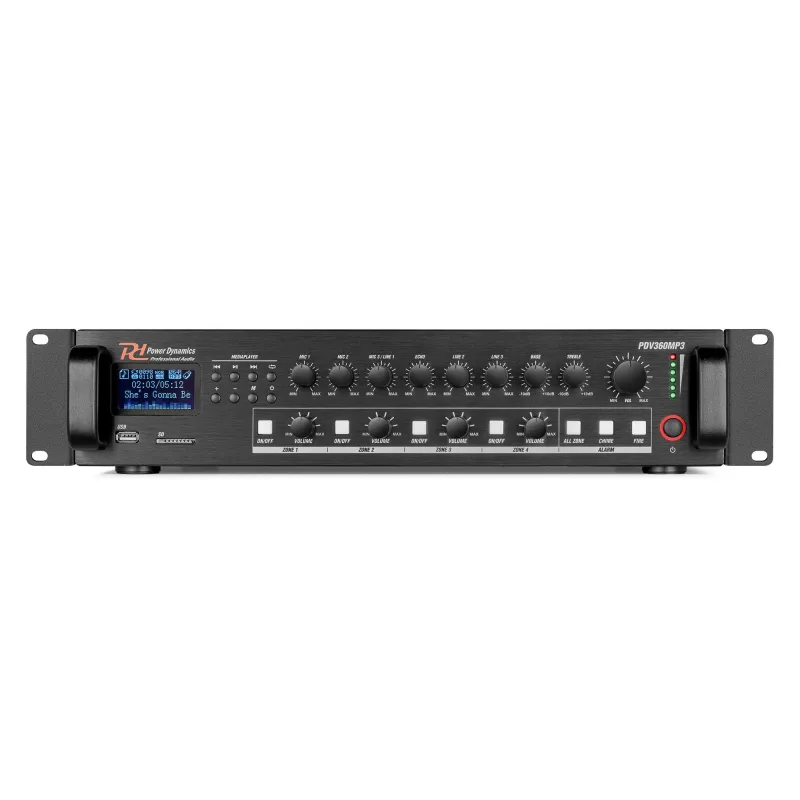

PDV360MP3 PA Mixer Amplifier 360W/100V 4 zones

SKU:TR952.073OS

Image is for illustrative purposes only

The PDV series is a range of fully featured, high power mixer amplifiers with 4 zone outputs, each with separate 6-step volume controls. This series amplifiers features an integral MP3 module with USB and SD Card slot, a FM tuner and internal BT receiver.
Mic 1 channel has an override over all inputs and MP3 player. 24V contacts can be connected to a fire alarm panel for emergency evacuation if required. All models are designed with complete protection from overload to avoid any damage.
This series of amplifiers is suitable for applications in a bank, town hall, supermarket, school, hotel, restaurant, shopping centre or any other public space.

Brand: Power Dynamics
Product colour: Black
Playback options: BT streaming, USB, SD, FM radio
Output channels: 4
Output power: RMS: 360W
Impedance: 8 Ohm, 100V
Frequency response: 50Hz - 19.000Hz
Signal-to-noise ratio: >70dB
THD: <1%
Signal-to-noise ratio: Line: >85dB
Signal-to-noise ratio: Mic: >80dB
Input level: Line: 400mV
Input level: Mic.: 10mV
Power supply: 220-240VAC 50Hz
Dimensions (L x W x H): 380 x 420 x 88mm
Weight (kg): 13
Included accessories: Mounting bracket

952.068_952.071_952.073 Block Diagram.pdf
Download
