UT804 Laboratory Meter

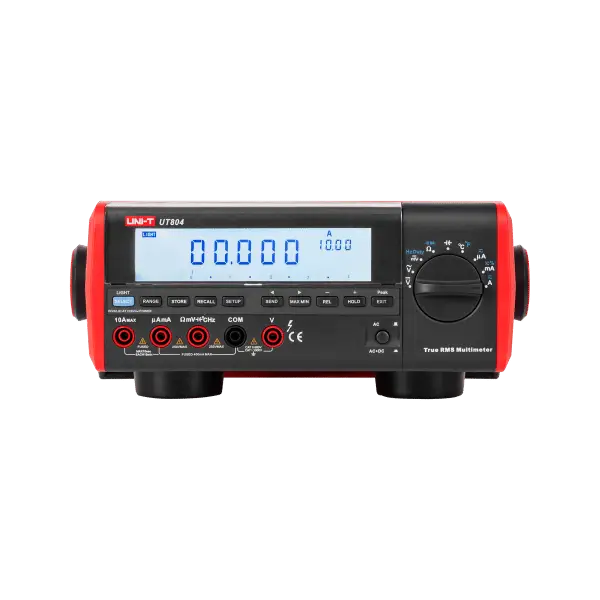

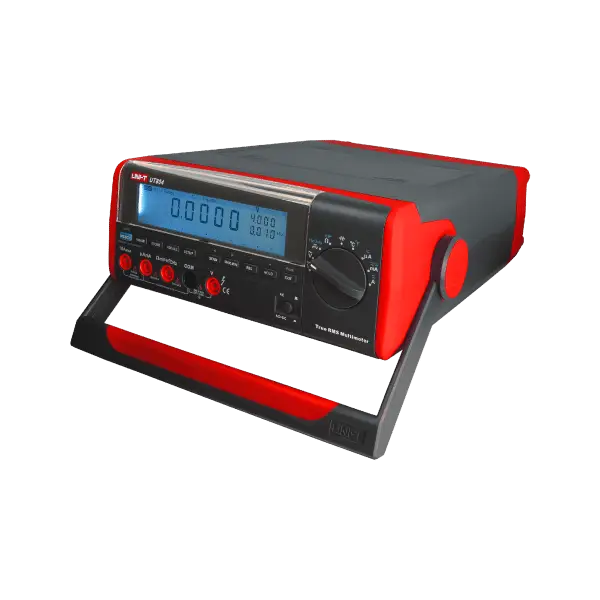

Uni-T UT804 Laboratory Meter The Uni-T UT804 is an advanced laboratory meter that combines a wide range of measurement functions and high precision, ideal for applications in laboratories, service centers, and industry. Thanks to its extensive capabilities and robust construction, the UT804 is an excellent tool for precise electrical and electronic measurements. Wide Measurement Range and High Accuracy The UT804 offers precise measurements of DC voltage (up to 1000 V) with an accuracy of ±(0.025%+5) and AC voltage with an accuracy of ±(0.4%+30). The meter also enables measurements of DC current (up to 10 A) with an accuracy of ±(0.1%+15) and AC current with an accuracy of ±(0.7%+15). High measurement accuracy and wide ranges make this meter a versatile tool for working with various circuits and systems.
Advanced Measurement Functions The device offers automatic and manual range selection, which increases ease of use. True RMS and AC+DC measurement functions ensure accurate results even with complex signals. In addition, the meter is equipped with an analog bargraph, peak value recording, MAX/MIN value measurement, and a relative measurement function. The UT804 allows you to save up to 9999 readings, which can later be recalled and analyzed, which is crucial in advanced analyses.
Extensive Display and Operation Options The UT804 meter has an LCD display with dimensions of 128 x 28 mm, which displays the main measurement results and two additional auxiliary readings. Screen backlight and a low battery indicator increase user comfort in various conditions. The device also offers a Setup function that allows you to personalize the meter settings according to user preferences.
Ergonomic Design and Ease of Integration The meter is equipped with USB and RS-232 ports, which allows easy data transfer to a computer for further analysis and archiving. The solid construction and weight of 2.2 kg ensure the stability and durability of the device in intensive use. The meter can be powered from an AC 220 V mains supply or from six 1.5 V (R14) batteries, which provides flexibility in use in various conditions.
Complete Set of Accessories The UT804 comes with a full set of accessories, including test leads, a temperature probe, alligator clips, a capacitor measurement socket, USB and RS-232C cables, and a power cord. These accessories allow you to start working immediately and maximize the functionality of the meter.
