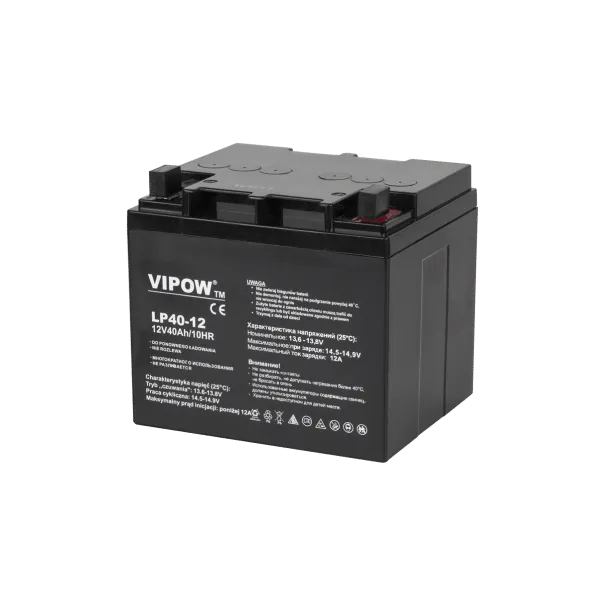

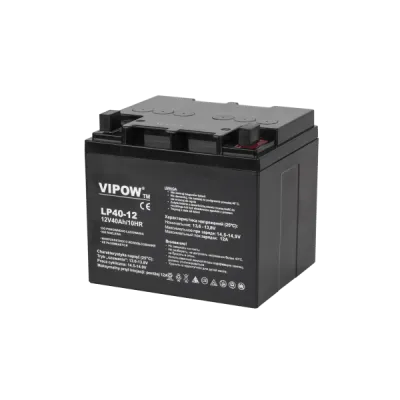

VIPOW 12V 40Ah Gel Battery
SKU:BAT0222
Vipow Gel Battery 12 V / 40 Ah Gel batteries have become an alternative to classic lead-acid batteries. Unlike the latter, gel models are maintenance-free batteries. This means that they do not require electrolyte replenishment. What speaks in their favor is the sealed housing and the electrolyte in the form of a gel. This guarantees that it will not leak, so the battery can be stored in any position and is more resistant to shocks. Gel Battery Life One of the biggest advantages of gel batteries is their lifespan. Among those available on the market, this type is characterized by the longest, because when used properly, it can last even a dozen years. Importantly, gel batteries are also characterized by greater resistance to variable and extreme weather conditions.
Automatic discharge (25°C) Gel batteries can be stored for many months without charging. Their capacity drops to: - 91% after 3 months - 82% after 6 months - 64% after 9 months
Automatic discharge (25°C) Gel batteries can be stored for many months without charging. Their capacity drops to: - 91% after 3 months - 82% after 6 months - 64% after 9 months Applications of gel batteries Gel batteries are used in, among others, motorcycles, golf carts and lawnmowers. They are also used in uninterruptible power supplies (UPS), photovoltaic installations, alarm systems and electric toys. What's more, these batteries can be found in cars with a large amount of electrical equipment, e.g. campers. They are then used not to start the car, but to power electronic equipment.
Charger for gel battery In order for the charger to perform its function well and not damage the battery, it must have properly selected current and voltage. In different stages of charging, these values will differ from each other, so it is worth choosing an automatic charger that will not only adjust the appropriate charging current and voltage, but also turn off when the battery is fully charged. The correct charging voltage is crucial for the longevity of the battery. Using an incompatible charger can lead to permanent damage.
Charger for gel battery In order for the charger to perform its function well and not damage the battery, it must have properly selected current and voltage. In different stages of charging, these values will differ from each other, so it is worth choosing an automatic charger that will not only adjust the appropriate charging current and voltage, but also turn off when the battery is fully charged. The correct charging voltage is crucial for the longevity of the battery. Using an incompatible charger can lead to permanent damage.
Voltage: 12 V
Capacity: 40 Ah
Standby Use (25°C): 13.6 - 13.8 V
Cyclic Use (25°C): 14.5 - 14.9 V
Maximum Initial Current: < 12 A
Internal Resistance (at full battery charge, 25°C): 7 mOhm
----------
Capacity (25°C)
----------
20 hour rate: 41.5 Ah
10 hour rate: 40.0 Ah
5 hour rate: 34.5 Ah
1 hour rate: 25.2 Ah
----------
Effect of temperature on capacity
----------
40°C: 102%
25°C: 100%
0°C: 85%
-15°C: 62%
----------
Self-discharge (25°C)
----------
Capacity after 3 months of storage: 91%
Capacity after 6 months of storage: 82%
Capacity after 9 months of storage: 64%
----------
Dimensions (LxWxH): 196 x 166 x 176 mm
Weight: 14.1 kg
Warranty period for gel batteries is 12 months*
* - please read the warranty conditions for individual product categories - point 18 of the warranty
Capacity: 40 Ah
Standby Use (25°C): 13.6 - 13.8 V
Cyclic Use (25°C): 14.5 - 14.9 V
Maximum Initial Current: < 12 A
Internal Resistance (at full battery charge, 25°C): 7 mOhm
----------
Capacity (25°C)
----------
20 hour rate: 41.5 Ah
10 hour rate: 40.0 Ah
5 hour rate: 34.5 Ah
1 hour rate: 25.2 Ah
----------
Effect of temperature on capacity
----------
40°C: 102%
25°C: 100%
0°C: 85%
-15°C: 62%
----------
Self-discharge (25°C)
----------
Capacity after 3 months of storage: 91%
Capacity after 6 months of storage: 82%
Capacity after 9 months of storage: 64%
----------
Dimensions (LxWxH): 196 x 166 x 176 mm
Weight: 14.1 kg
Warranty period for gel batteries is 12 months*
* - please read the warranty conditions for individual product categories - point 18 of the warranty
