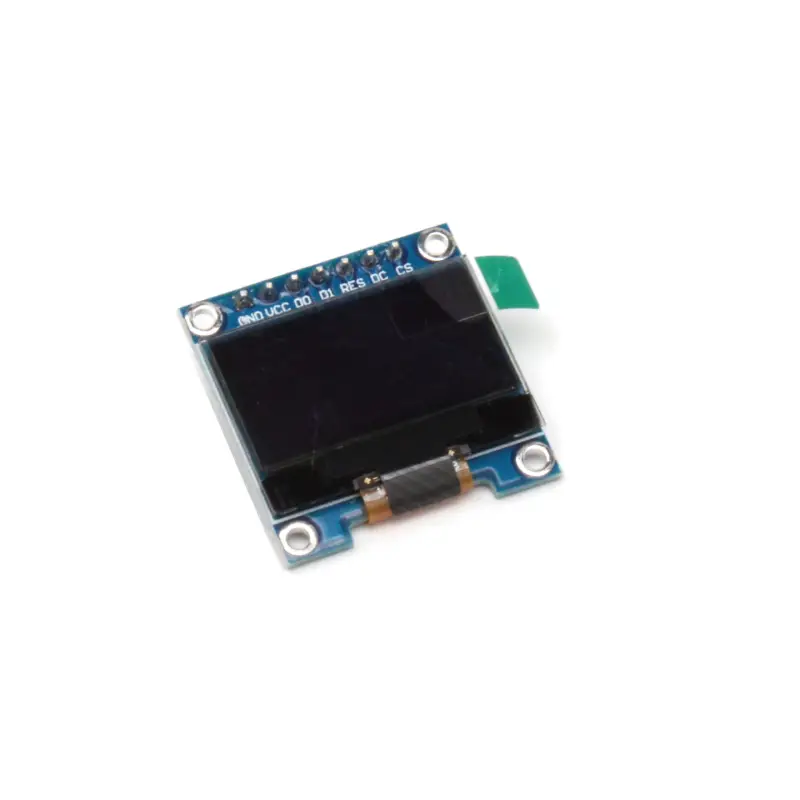

OLED Display 0.96" SPI 4W 128x64 blue

This is easy to use OLED display, 0.96” screen size, 128x64 resolution and SSD1306 driver. You can connect to it via SPI. Easy programming on Arduino. You can use Adafruit’s SSD1306 library. To make it easy example project can be downloaded from GitHub. It is PlatformIO project, that mean, it should be easy to compile.
Specification:
Driver: SSD1306
Screen size: 0.96”
Screen dimensions: 22 x 11 mm (active area)
Resolution: 128 x 64 pixels
Supply voltage: 3 - 5 V
Module size: 27 x 27 x 3.5 mm (height w/o goldpins)
Pinout:
GND - Ground
VCC - Supply voltage
D0 - CLK
D1 - MOSI
DC - data/command
CS - chip select
RES - reset
SSD1306 is not 5V tolerant. When connecting to classic Arduino boards use logic level converter between OLED module and microcontroller. When connecting to ESP8266/32 converter is not needed.

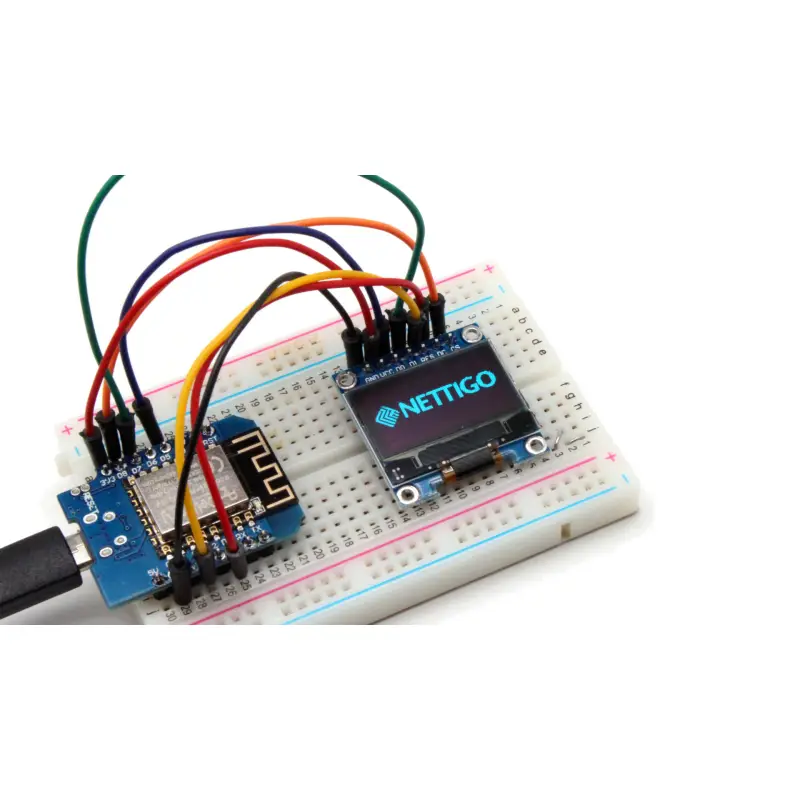

ESP8266 connection example
ESP8266 SSD1306 OLED
3V3 Vcc
GND GND
D7 D1
D5 D0
D1 DC
D8 CS
D3 RES
If You use standard Adafruit SSD1306 library display object definition should be:
#define OLED_MOSI D7 //Connect to D1 on OLED #define OLED_CLK D5 //Connect to D0 on OLED #define OLED_DC D1 //Connect to DC on OLED #define OLED_CS D8 //Connect to CS on OLED #define OLED_RESET D3 //Connect to RES on OLED Adafruit_SSD1306 display(128, 64, OLED_MOSI, OLED_CLK, OLED_DC, OLED_RESET, OLED_CS);
