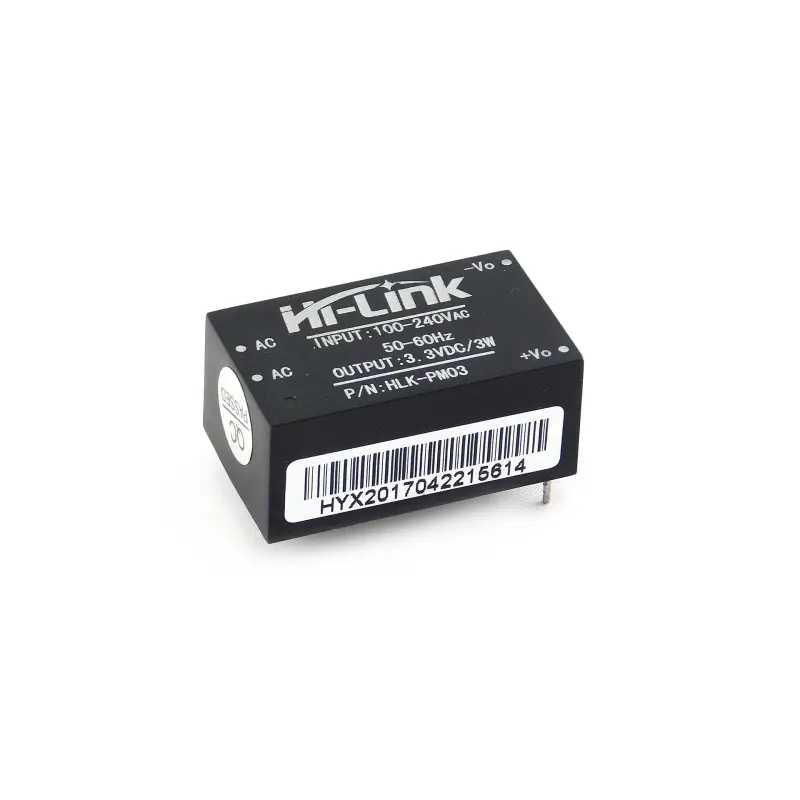

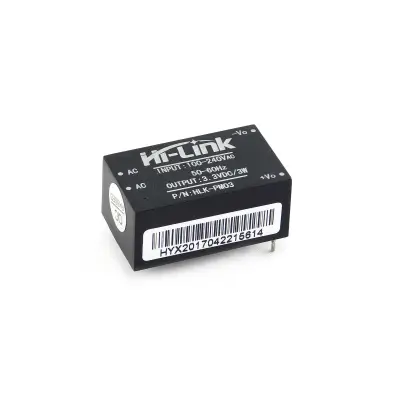

Ultra-compact power supply module HLK-PM03 100-240V / 3.3V 1000mA

Specification:
Rated input voltage: 100-240 VAc
Input voltage range: 90-264 VAc
Maximum input current: ≤0.2 A
Input current surge: ≤10 A
Maximum input voltage: ≤270 VAc
Enter slow start: ≤50 mS
Input Low Voltage Efficiency Vin=110V AC Output full-load: ≥69%
Input High Voltage Efficiency Vin=220V AC Output full-load: ≥70%
Long-term reliability: MTBF≥100000 h
Load rated output voltage: +3.3±0.1 V DC
Full rated output voltage: +3.3±0.2 V DC
Short-term maximum output current: ≥1200 mA
The maximum output current for a long time: ≥1000 mA
Voltage Regulation: ±0.2 %
Load Regulation: ±0.5 %
Output ripple and noise: ≤70 mVp-p
Output over-current protection: 150-200% of the output maximum load
Output short circuit protection: Direct short circuit at the normal output, automatically resume normal operation after a short circuit removal
Oferta zasilaczy do druku Hi-Link:
Na zamówienie możemy sprowadzić również:
HLK-5M03 5W - 3.3V 1500mA
HLK-5M05 5W - 5V 1000mA
HLK-5M12 5W - 12V 450mA
