HD 35 : Wireless datalogging system ( Delta Ohm )

 • wireless( 868MHz ; 902-928MHz ; 916-930MHz ) datalogging system for enviromental parameters
   transmission area: max. 300m
HD 35APxE -  base modul ( connected to PC )
                       data transmission to computer, includes software ( CD )
      x : connection type:
            " " - USB output
            S - USB & RS485 ( MODBUS-RTU protocol outputs )
            W - USB, Wi-Fi interface & Ethernet protocol, integrated web-server
            G - USB output & GSM-modul
      E : frequency range: 868 MHz

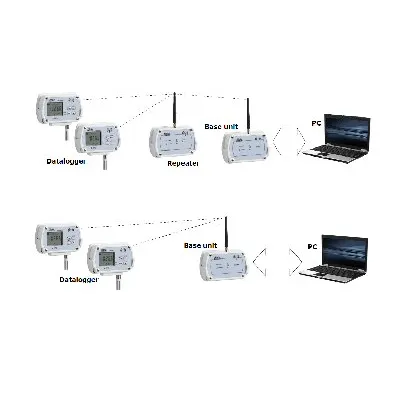

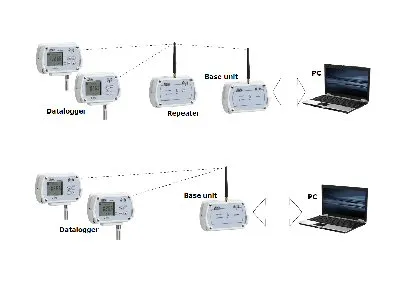

HD 35RE.E - RF-repeater( data transmission from logger to base unit)

HD 35ED-ALM.E - alarm modul ( relay output)

HD35ED abcd.E - wireless logger
         a : LCD type:
               " " - LCD screen
               L - customLCD
               G - graphic LCD
         b : housing:
               " "  - for indoor use
               W - for outdoor use
         c : measuring parameters:
               1 - humidity
               4b - air pressure( barometric )
               4 - diff. pressure ( 4r1, 4r2 .... different ranges )
               N - NTC10K temperature probe (  N/2 = 2 channels ; N/3 = 3 ch.)
               7P - Pt100/Pt1000 temperature probe ( 7P/3 = 3 ch.)
               A - CO ( carbon mono oxide)
               B - CO2 ( carbon dioxide)
               I - Lux
               U - UVA ( irradiance )
               V - acceleration
         d : probe type:
               " "  - internal probe with grid
               H - input with terminals
               TC - cable probe
               TV - fixed vertical probe, combined probe with cable ( T/R.H  & RH )
               TVI - fixed vertical probe T/RH without cable

HP3517 ab.c - temperature / humidity combined probe
         a : operating temperature ( " " = -20...+80°C ;  E= -40..+150°C )
         b : probe stem lenght ( TC1 = 135mm ; TC2 = 335mm )
         c : cable lenght ( 2 = 2m ; 5 = 5m ; 10 = 10m )
HD9007A-1 ; HD9007-A2 - solar protection for  HD3517 probes

TP35.a.bc - Pt1000 probe
         a :
               1 -  stainless steel immersion probe ( -50...+105 °C ; 1/3 DIN, diam.6 x 50mm )
               2-   thermoplast rubber coated immersion probe ( 0...+70 °C ; 1/3 DIN, diam.5 x 20mm )
               5 -   stainless steel immersion probe ( -40...+300 °C ; 1/3 DIN, diam.6 x 50mm )
         b : cable lenght: ( 3 = 3m  ;  5 = 5m ;  10 = 10m ( ainult TP35.1 )
         c :  ( " " - free cable end ;  /C - 4 pole M12 thread connector )
TP35N a.bc : 10kOhm NTC probe
          a :
               1 -  stainless steel immersion probe ( -20...+85 °C ; diam.5 x 40mm )
               2-   stainless steel immersion probe ( 0...+70 °C ;  diam.6 x 50mm )
               5 -   stainless steel immersion probe ( -20...+105 °C , diam.4 x 100mm )
          b : cable lenght ( 3 = 3m; 5 = 5m; 10 = 10m ( TP35N1 ja TP35N2 mudelitele )
          c :   ( &qu
