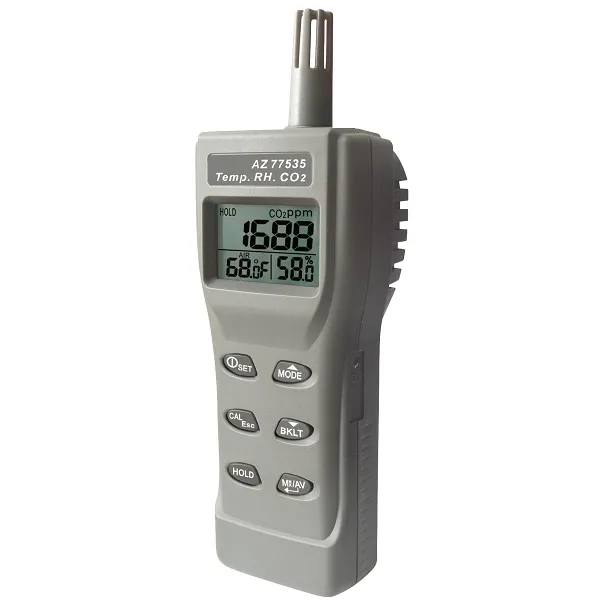

CO2, Temperature and Humidity meter with software
SKU:AZ77535
CO2 Meter features:
* Design with NDIR (Non-Dispersive Infrared) wave guide technology sensor
* Triple displays of CO2 level, temperature and humidity
* Data output to PC every 2 seconds for on-line analysis
* Display 8 hrs TWA value (time-weighted average) & 15 minutes STEL value (short-term exposure limit)
* Housing design surrounds with rails to help air ventilation for quick and accurate response
* Easy manual calibration on CO2 and humidity (with AZ salt bottle)
* Dual display 2 parameters simultaneously: CO2, temperature
* Audible carbon dioxide level warning alarm
* Big LCD display with high resolution
* Back light for working in dark area
* Battery and adaptor power supply ( not included )
* PC connect via USB interface
* Design with NDIR (Non-Dispersive Infrared) wave guide technology sensor
* Triple displays of CO2 level, temperature and humidity
* Data output to PC every 2 seconds for on-line analysis
* Display 8 hrs TWA value (time-weighted average) & 15 minutes STEL value (short-term exposure limit)
* Housing design surrounds with rails to help air ventilation for quick and accurate response
* Easy manual calibration on CO2 and humidity (with AZ salt bottle)
* Dual display 2 parameters simultaneously: CO2, temperature
* Audible carbon dioxide level warning alarm
* Big LCD display with high resolution
* Back light for working in dark area
* Battery and adaptor power supply ( not included )
* PC connect via USB interface
CO2 Range | 0~9999 ppm (5001~9999 ppm out of scale range) |
CO2 Resolution | 1 ppm |
CO2 Accuracy | ±30 ppm ±5% of reading (0~5000 ppm), other range are not specified |
CO2 Response Time | <30 Seconds (90% step change) |
CO2 Warm-up Time | 30 Seconds |
Air Temperature Range | -10~60℃, 14~140℉ |
Air Temperature Resolution | 0.1℃, 0.1℉ |
Air Temperature Accuracy | ±0.6℃, ±0.9℉ |
Air Temperature Response Time | <2 mins (90% step change) |
Humidity Range | 0.1~99.9% RH |
Humidity Resolution | 0.1% RH |
Humidity Accuracy | ±3%RH (at 25℃, 10~90%RH); others ±5%RH |
Humidity Response Time | <10 mins (90% step change) |
LCD Size | 44(L) * 26(W) mm |
Meter Size | 205(L) * 70(W) * 56(H) mm |
Operating Temperature | 0~50℃ |
Operating RH% | 0~95% RH (avoid condensation) |
Storage Temperature | -20~50℃ |
Storage RH% | 0~90% RH (avoid condensation) |
Power Supply | AA * 4 PCS |
Battery life | > 24 hours (Alkaline Battery) |
Weight | ~200g |
