Timer Relay0,1s...10days 12V AC/VDC DPDT 2*NO-NC DIN

SKU:TR4N12AC/DC12M
Timer Relay0,1s...10days  12V AC/VDC DPDT 2*NO-NC DIN

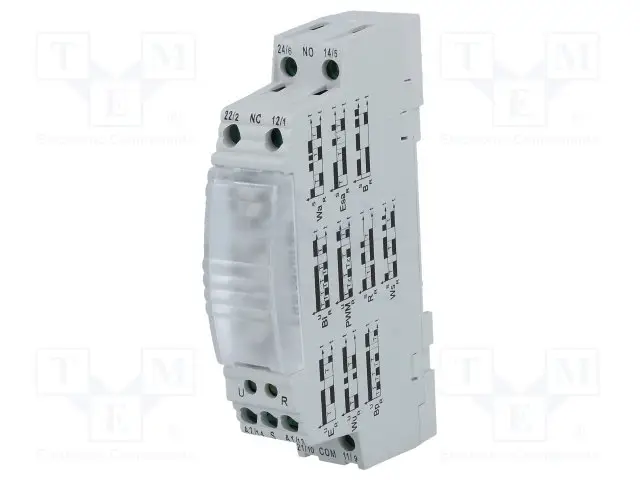

Image is for illustrative purposes only

Counter operation modes cyclical operation, delayed switching off, delayed switching on, ON and OFF delay, ON for the set interval, PWM, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first, with the control contact S



Type of module timer

Counting range 0,1s...10days

Kind of output DPDT

Output 1 electrical parameters 250V AC/8A

Supply voltage 12V AC, 12V DC

number of operation modes 10

Electrical connection screw terminals

Mounting DIN

Operating temperature -20...55°C

Timers features operation status indication - LED diodes

Body dimensions 17.6x99x55mm

Number of pins 9

IP rating IP20

Kasutusjuhend151.59KB
