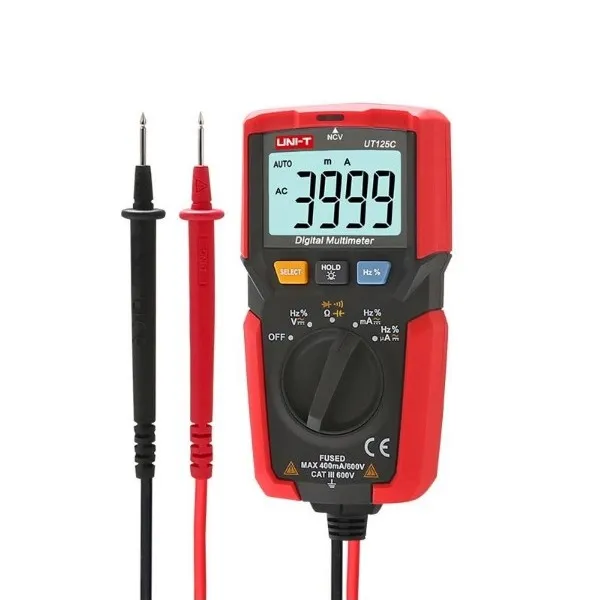

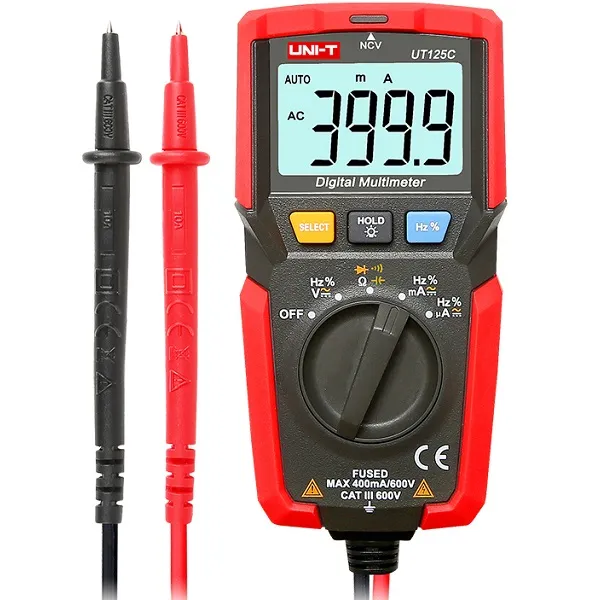

Pocket Multimeter Uni-T UT125C ACV/DCV/ACA/DCA/R/C/f NCV

SKU: UT125C

Pocket Multimeter Uni-T UT125C ACV/DCV/ACA/DCA/R/C/f NCV

Image is for illustrative purposes only

A reliable pocket multimeter with a digital display that displays up to 4,000 digits. Ideal tool for measuring both DC and AC voltage and current, resistance, capacity, and continuity with overload protection. In this price range, the device is also equipped with extra features, including NCV, frequency measurement, and display backlight. The UT125C complies with CAT III 600V and CE/cETLus certificates.

Multimeter functions:
- AC voltage measurement - 4 V / 600 V
- DC voltage measurement - 400 mV / 600 V
- AC current measurement - 400 μA / 400 mA
- DC current measurement - 400 μA / 400 mA
- Resistance measurement - 400 Ω / 40 MΩ
- Frequency measurement - 9,999 Hz - 60 kHz
- Duty cycle measurement - 20% / 80%
- Non-contact voltage measurement (NCV)
- Capacity test - 50 nF / 100 μF
- Line continuity test (buzzer)
- Diode test
- Manual range selection
- Reverse polarity detection
- Data hold
- Display backlight
- Automatic shutdown when idle
- Integrated testing leads
- Low battery indication
- Overload protection, fuse protection

AC voltage measurement (range, resolution, accuracy):
4 V / 0,001 V / ± 1,2 % + 5
40 V / 0,01 V / ± 1,2 % + 5
400 V / 0,1 V / ± 2 % + 10
600 V / 1 V / ± 2 % + 10

DC voltage measurement (range, resolution, accuracy):
400 mV / 0,1 mV / ± 1 % + 8
4 V / 0,001 V / ± 0,5 % + 5
40 V / 0,01 V / ± 0,5 % + 5
400 V / 0,1 V / ± 0,8 % + 5
600 V / 1 V / ± 0,8 % + 5

AC current measurement (range, resolution, accuracy):
400 μA / 0,1 μA / ± 2 % + 8
4 mA / 0,001 mA / ± 2 % + 8
40 mA / 0,01 mA / ± 2 % + 8
400 mA / 0,1 mA / ± 2 % + 8

DC current measurement (range, resolution, accuracy):
400 μA / 0,1 μA / ± 1,8 % + 5
4 mA / 0,001 mA / ± 1,8 % + 5
40 mA / 0,01 mA / ± 1,8 % + 5
400 mA / 0,1 mA / ± 1,8 % + 5

Resistance measurement (range, resolution, accuracy):
400 Ω / 0,1 Ω / ± 1 % + 5
4 kΩ / 1 Ω / ± 1 % + 5
40 kΩ / 10 Ω / ± 1 % + 5
400 kΩ / 100 Ω / ± 1 % + 5
4 MΩ / 1 kΩ / ± 1,2 % + 10
40 MΩ / 10 Ω / ± 2 % + 10

Frequency measurement (range, resolution, accuracy):
9,999 Hz - 60 kHz / 0,001 Hz - 10 kHz / ± 0,1% + 5
Measurement of the working cycle
20 - 80 %

Capacity test (range, resolution, accuracy):
50 nF / 0,01 nF / ± 4 % + 30
500 nF / 0,1 nF / ± 3 % + 15
5 μF / 1 nF / ± 4 % + 10
50 μF / 10 nF / ± 4 % + 10
100 μF / 100 nF / ± 4 % + 10

The device complies with IEC UL STD 61010-1, 61010-2-030, 61010-2-033, 61010-031
CAT III 600V, double insulation, overload protection, pollution class II
Dimensions (mm): 112 x 58 x 35 mm
Power supply: 2 x AAA 1.5 V battery (included)
Weight: approx. 180 g (including batteries)
Operating temperature: 0 - 50°C
