Compact ABS enclosure - dark gray, 64 x 58 x 35mm
SKU:G302

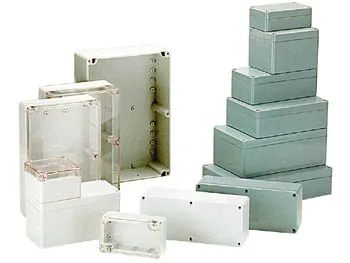

Image is for illustrative purposes only
These enclosures consist of high-impact ABS (operating temperature : -20°C to +100°C).
The lid and the base are equipped with a tongue and groove sealing system with a neoprene gasket. The mounting holes and the lid-fixing screws are located outside the sealed area, preventing moisture and dust from entering the enclosure. Internal guide slots allow the vertical mounting of PCB assemblies.
The bosses on the internal base allow the horizontal fixing of PCB's or the connection of terminals, etc. with threaded brass inserts.
SpecificationsProduct basic info
Primary colours: Grey
Primary detailed colours: Dark grey
Depth unit: 35 mm
Height unit: 58 mm
Width unit: 64 mm
Weight unit: 54.5 g
Material: ABS
Physical properties
Technical data
Mounting type: Horizontal
Environmental data
IP rating: IP65
Operating temperature range: -20-100 °C
The lid and the base are equipped with a tongue and groove sealing system with a neoprene gasket. The mounting holes and the lid-fixing screws are located outside the sealed area, preventing moisture and dust from entering the enclosure. Internal guide slots allow the vertical mounting of PCB assemblies.
The bosses on the internal base allow the horizontal fixing of PCB's or the connection of terminals, etc. with threaded brass inserts.
