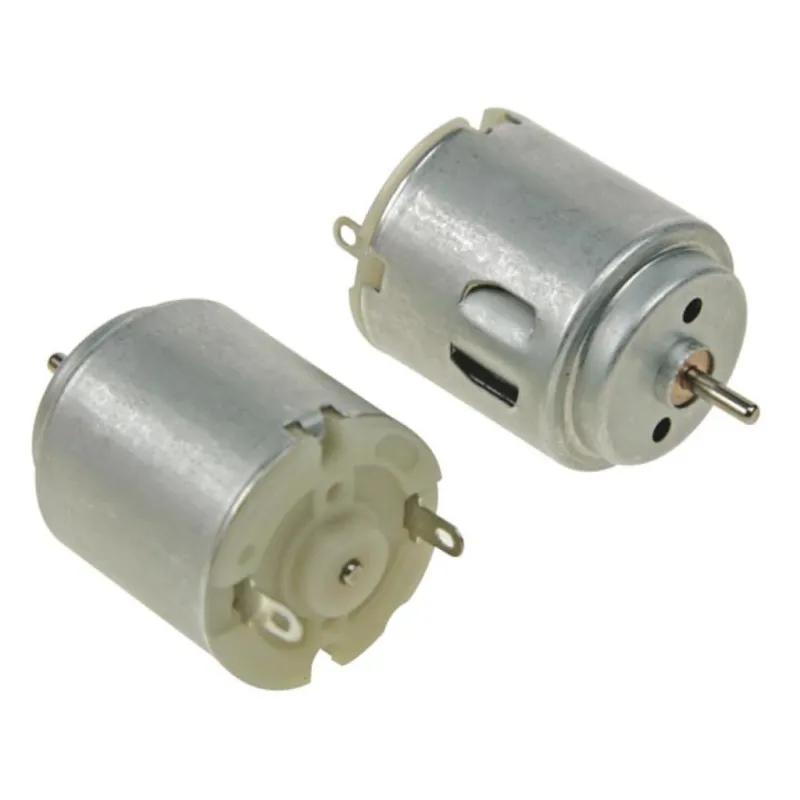

DC MOTOR 3Vdc 300mA 14200rpm (1.5-3Vdc)
SKU:MOT1N
Image is for illustrative purposes only
Specifications:
- voltage:
- operating range: 1.5-3V
- nominal: 3V
- no load:
- speed: 14200rpm
- current: 0.3A
- at max. efficiency:
- speed: 11780rpm
- current: 1.33A
- torque: 19.6gcm
- output: 2.37W
- eff.: 59.5%
- stall torque: 115.0gcm
- dimensions (mm):
- A: 6.7
- B: 11.5
- C: 23.5
- D: Ø23.8
- E: 38.0
- F: Ø2.0
- G: Ø6.15
- H: Ø19.0
- I: 11.5
- J: Ø2.3
- K: Ø23.8
