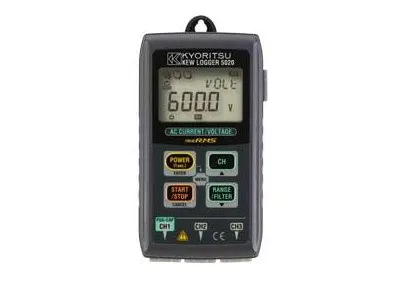

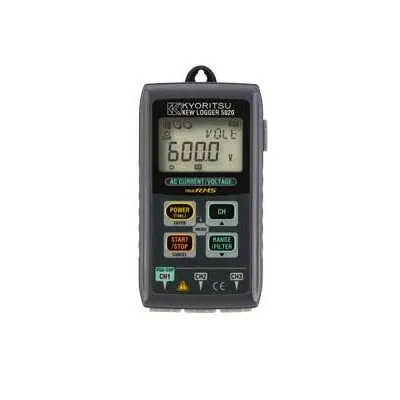

3-phase voltage & current quality logger ( Kyoritsu )

• Nomal recording mode( RMS): 100mA
                      ( accuracy: +-2%rdg+-0,9%fs.
                      other ranges: +-1,5%rdg+-0,9% fs
                      interval: 1,65ms/ch
•  Trigger-mode: 100mA
                     ( accuracy: +-3,5 %rdg+-2,2% fs
                       other ranges: +-3 %rdg+-2 % fs
                       interval: 1,65ms/ch
•  Capture/Power Quality Analysis: 100mA
                       ( accuracy: +-3 %rdg+-1,7% fs
                          other ranges: +-2,5 %rdg+-1,5 % fs
                           interval: 0,55ms/ch
•  Recording modes:  Normal, triger, Capture, Power Quality Analysis
•  Max. working range: 9,9Vrms AC, 14V peak
•  Input channels: 3
•  Measuring method: TrueRMS ; RMS meas.interval: 100ms
•  Automatic power-off ( 3min after recording; over-range warning
•  Standards: IEC61010-1:2001 CAT.III 300V ; IEC61326 ( EMC);
•  Max. withstand voltage:  3 540 V AC ( 5s )
•  Dimensions/weight: 111 x 60 x 36mm(42mm)  / 255g(315g)
•  Includes: instrument, batteries ( LR6x4 ), case (9118),
                     software( KEW LOG Soft 2 ); manuals,
                     Clamps must be ordered separately !
*Options:leakage-current clamps  Model 8146 - diam. 24mm
                                                         Model 8147 - diam. 40mm
                                                         Model 8148 - diam. 68mm
                        current - clamps ( Model 8121 - diam. 24mm
                                                         Model 8122 - diam. 40mm
                                                         Model 8123 - diam. 55mm
                            voltage sensor: Model 8309

•  More information: KEW5020
